Specifications
Model Number :
SXL64 - 17NH
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Effective Chamber Dimensions :
400*400*400mm(W*H*D)
Atmosphere :
Nitrogen/Hydrogen
Transport Package :
Wooden Package
Specification :
1200*1950*1250mm (W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
Sxl64 17nh Temperature Atmosphere Box Furnace for Medium-Temperature Heat Treatment of Electronic Products Customization
1. Summary:

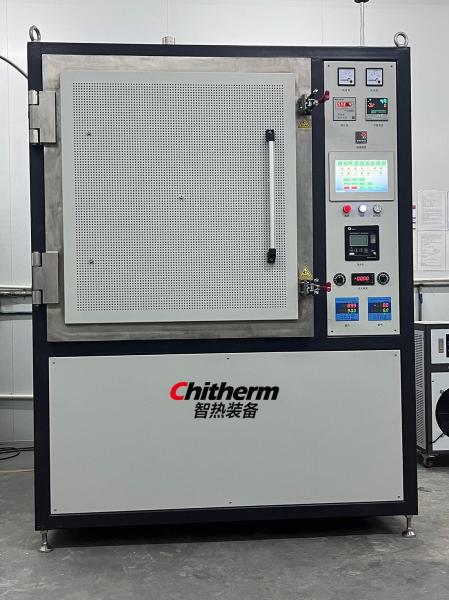

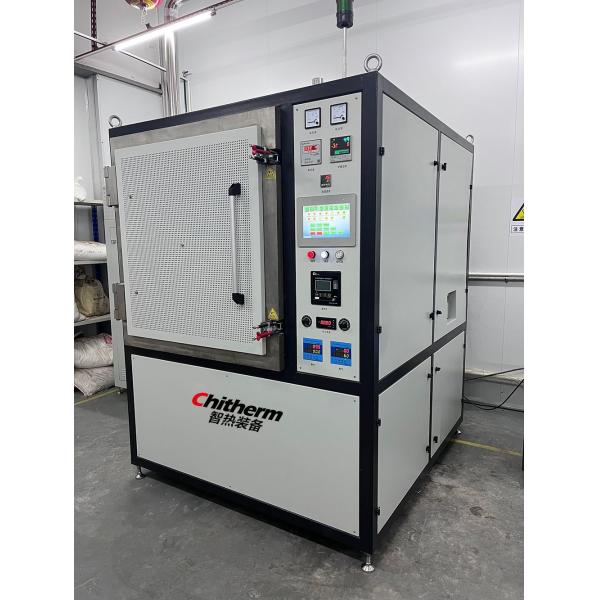

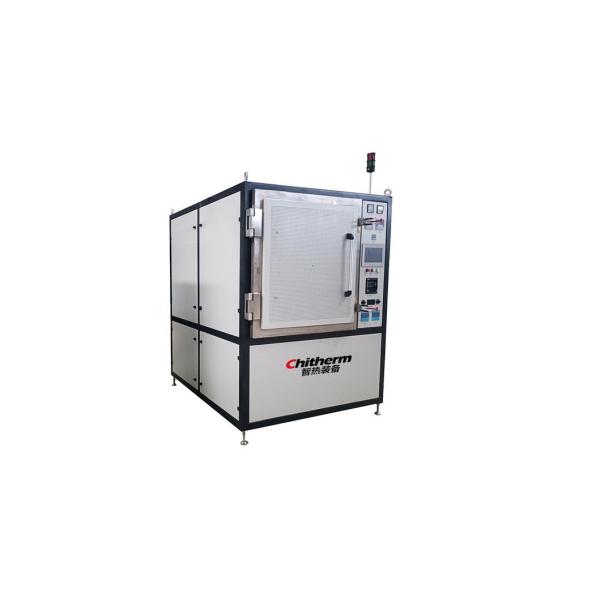

The SXL64 - 17NH high-temperature atmosphere box furnace is suitable for medium-temperature heat treatment of electronic products, including nitrogen/air atmosphere heat treatment of electronic ceramics, dielectrics, conductors, etc. It can also perform pre-vacuuming and then fill with nitrogen for replacement to assist in purifying the furnace atmosphere. This equipment can also be conveniently used for high-temperature heat treatment of other products. The furnace is fully equipped and installed with a real-time computer monitoring system, which is especially suitable for the material process test requirements in scientific research institutes.
Small Industrial High Temperature Box Furnace Heat Treatment for Electronic Products
2. Mainly Specifics:
  1. Rated Temp.: 1600ºC
  2. Max Temp.: 1650ºC

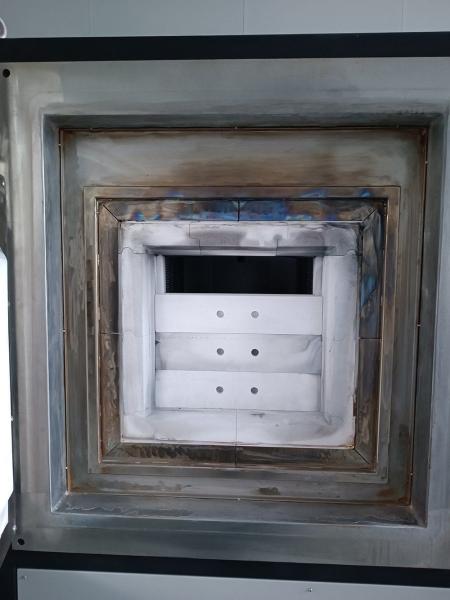

  3. Furnace Chamber Effective Dimensions: 400×400×500 mm (W×H×D)
  4. Heating Element: Molybdenum wire
  5. Processing Atmosphere: Nitrogen/Hydrogen
  6. Exhaust System: An exhaust port is installed at the top of the furnace chamber.
  7. Cooling Method: Natural cooling along with the furnace
  8. Controlled Temperature Zones: 1
  9. Number of Temperature Control Points: 1 point
  10. Number of Temperature Control Segments: 19×19 segments
  11. Temperature Control Stability: ±1°C. Temperature control is carried out by using the Japanese DAIHUA CHINO KP1000 intelligentprogram regulator, which has the function of PID parameter self-tuning.
  12. Temperature Uniformity: Better than ±5°C
  13. Control Mode: Touch screen + PLC centralized control
  14. Alarm Protection: Audible and visual alarm protection for over-temperature, broken thermocouple, etc., and it has the over-temperature alarm power-off protection function. The audible alarm uses a high-volume alarm.
  15. Surface Temperature Rise: ≤35°C
  16. Maximum Heating Power: 25 kW
  17. Holding Power: ≤15 kW
  18. Oxygen Content: ≤30 ppm + oxygen content of the gas source
  19. Power Requirements: Capacity greater than 34 kVA, three-phase five-wire, 220/380 VAC, 50 Hz
  20. Overall Dimensions: 1770×1570×2050 mm (D×W×H)
  21. Appearance Color: light gray.
Small Industrial High Temperature Box Furnace Heat Treatment for Electronic Products
3. Delivery List
Item Note QTY
Basic Compositions Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts molybdenum wire 1 Set
Dew point meter 1 PC
Temperature Controller 1 Set
Touch screen 1 Set
Vacuum system 1 Set
Oxygen Analyzer 1 Set
Hydrogen alarm instrument 1 Set
Water chiller 1 Set
Spares Heating Elements Molybdenum Coil 4 PC

4. Facility Requirements
1. Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
2. Process air conditions: nitrogen, purity 99.999%, air source pressure 0.2 - 0.4Mpa, gas
consumption 3 - 6m3 /h; Hydrogen, purity 99.99%, gas source pressure not less than 0.1Mpa, gas consumption is 3 - 6m3 /h;
3. Power air source conditions: clean, dry, oil-free compressed air, pressure 0.4 - 0.8Mpa;
4. Water Inlet condition: 0.1 - 0.3Mpa, clean, no corrosion, supply flow 2 - 5L/min;
5. Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 1.5m3 /h;
6. Ground requirements: level, no obvious vibration, bearing capacity > 200Kg/m2 .
7. Power conditions: capacity greater than 34kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
8. Installation site: 2500mm×3000mm×2500mm (W×H×D), installation area greater than 5m2.
