Specifications
Model Number :
HRF216-07N
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Drying
Heating Element :
Stainless Steel Heater
Effective Chamber Dimensions :
600*600*600mm(W*H*D)
Rated Temp. :
650ºC
Max Temp. :
700ºC
Transport Package :
Wooden Packaging
Specification :
1300*1710*1800mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
High Temperature Uniformity on The Platform Chitherm Hrf216-07n Vertical Degumming Furnace with Effective Chamber Dimensions
1. Equipment Name and Model:
HRF216-07N Degumming Furnace

2. Technical Indicators and Basic Configuration
2.1 Rated Temperature: 650ºC;
2.2 Maximum Temperature: 700ºC;
2.3 Effective Size: 600×600×600mm (Width × Height × Depth);
2.4 Material Bearing Method: Stainless Steel Material Tray;
2.5 Furnace Chamber Material: SUS310S;
2.6 Heating Element: Stainless Steel Heater;
2.7 Temperature Control Stability: ±1ºC;
2.8 Platform Temperature Uniformity: ±5ºC (For the platform at 300~600ºC, tested in an empty furnace at a constant temperature for 1 hour);
2.9 Thermocouple Type: K Graduation;

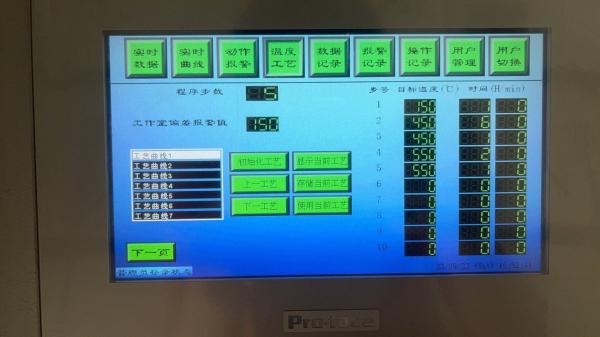

2.10 Temperature Control Instrument: Imported Japanese Intelligent Temperature Controller;
2.11 Number of Temperature Control Segments: 4×16 segments;
2.12 Number of Temperature Control Points: 1 point, controlling the temperature of the working chamber;
2.13 Number of Detection Points: 1 point, monitoring the temperature of the heating chamber;
2.14 Exhaust Chimney: 1 piece, and the size of the exhaust port can be adjusted manually;
2.15 Oxygen Content Detection: Equipped with a micro-oxygen analyzer, which can monitor the oxygen content in the furnace chamber in real time;
2.16 Oxygen Content: The optimal oxygen content can reach 10ppm plus the oxygen content of the gas source;
2.17 Alarm Protection: Audible and visual alarm protection for over-temperature, broken thermocouple, etc.;
2.18 Motor Protection: Over-current protection for the fan;
2.19 Surface Temperature Rise: ≤35ºC;
2.20 Maximum Heating Rate: 5ºC/min;
2.21 Heating Power: 24kW;
2.22 Insulation Power of the Empty Furnace: ≤12kW;
2.23 Equipment Color: Light Gray;
2.24 Total Weight of the Equipment: Approximately 1000kg;
2.25 Reference Dimensions of the External Shape: 1300mm×1710mm×1800mm (Width × Depth × Height, excluding the chimney).

3. Overall Technical Description

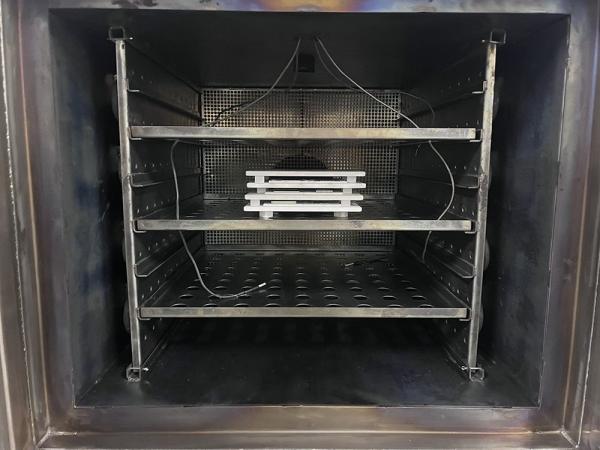

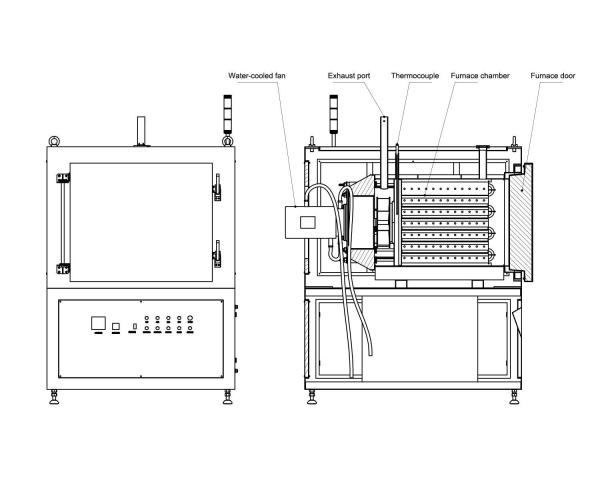

The entire oven is mainly composed of the frame structure, the furnace chamber, the furnace door, the hot air circulation system, the atmosphere system, the water cooling system, and the temperature control system.
Vertical Degumming Nitrogen Atmosphere Furnace Heat Treatment OEM
4. Equipment Handover List
Table 1 Delivery Schedule
Name Main Content Quantity
Basic Composition Main Kiln Furnace Unit 1 set
Inspection Certificate of Conformity Certificates of Conformity for Each Main Outsourced Component 1 set
Technical Documents Instruction Manual, Random Technical Documents of Each Main Outsourced Component, etc. 1 set
Key Components Stainless Steel Heater SUS310S 1 set
Temperature Controller Imported from Japan 1 set
Circulating Fan Fully Water-cooled Sealed Fan 1 set
Spare Parts Solid State Relay 1 piece
Stainless Steel Heater 1 piece

Vertical Degumming Nitrogen Atmosphere Furnace Heat Treatment OEMVertical Degumming Nitrogen Atmosphere Furnace Heat Treatment OEM
