Specifications
Brand Name :
Chitherm
Model Number :
BF150-17
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Delivery Time :
Customized
Packaging Details :
Customized
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Steel Molding
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
1740&;2780&;2505 (mm) (W×h×d)
Rated Temperature :
1650ºC
Maximum Temperature :
1700°c
Transport Package :
Wooden Packaging
Specification :
1740&; 2780&; 2505 (mm) (W× H× D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description

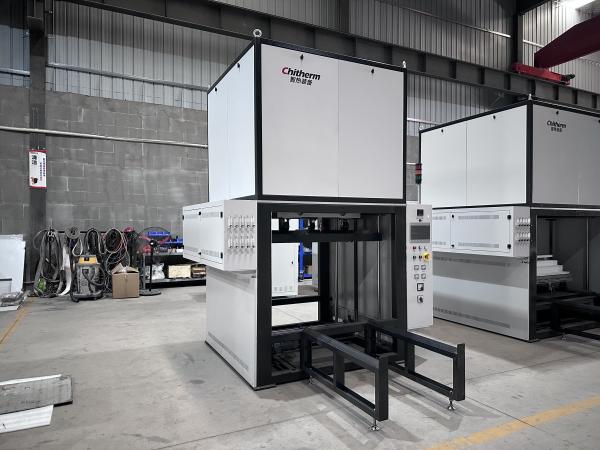

The BF150-17 High-Temperature Bell Jar Furnace is an industrial-grade heat treatment equipment specifically designed for high-temperature sintering processes. Featuring an advanced bell-jar structure, it is suitable for high-temperature sintering, annealing, and atmosphere treatment in fields such as ceramics, powder metallurgy, and electronic materials. The furnace chamber size, temperature range, and atmosphere control system can be customized according to requirements. With precise temperature control, uniform heating, and stable performance as its core advantages, this equipment meets the stringent demands of both scientific research institutions and industrial production.

Product Description

1. Application:

The BF150-17 High-Temperature Bell Jar Furnace is mainly designed for electronic ceramic materials, magnetic materials, ceramic filters, etc. require high uniformity of temperature field or multi-species small batch production occasions.

Product Parameters


2. Technical Specification:

Rated Temp

1650ºC
Max Temp 1700ºC
Effective Dimensions 550mm×500mm×550mm(D×W×H)
Heating Method U-shaped silicon molybdenum heater
Thermcouple B-Type
Temperature Control 1 Point
Temp. Set Accuracy ±1ºC(flat temp. insulation)
Temp. Control Mode control module imported from Japan with PID
Heat-up Rate 400 ~ 1000≤5ºC/min,1000 ~ 1500≤2ºC/min
Temp. Uniformity ± 5ºC (empty furnace insulation test 2hours under 1500ºC)
Program Tracking Accuracy ±2ºC (>600ºC)
Maximum Lifting Trip 800mm
Exhaust System 1 exhaust chimney is set at the top for exhaust gas emission
Maximum Heating Power 50kW
Insulation Power ≤25kW
External Dimensions 1740×2780×2505mm(D×W×H) (without control cabinet)
Appearance Color Light gray


Detailed Photos


BF150-17 High-Temperature Bell Jar Furnace – Optimized for High-Temp Sintering Processes

BF150-17 High-Temperature Bell Jar Furnace – Optimized for High-Temp Sintering Processes
BF150-17 High-Temperature Bell Jar Furnace – Optimized for High-Temp Sintering Processes
BF150-17 High-Temperature Bell Jar Furnace – Optimized for High-Temp Sintering Processes

3.Delivery List of BF150-17 High-Temperature Bell Jar Furnace

Table 1 Delivery list

Item Note Qty.
Basic Components Furnace
1 SET
Inspection Certificates Certificates of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET

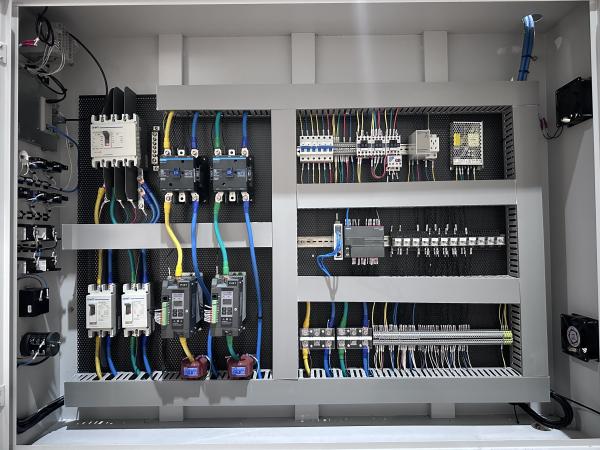

Control Cabinet 1000×2000×600mm(W×H×D) 1 SET
Key Components Heating Plate U-shaped silicon molybdenum heater 1 SET

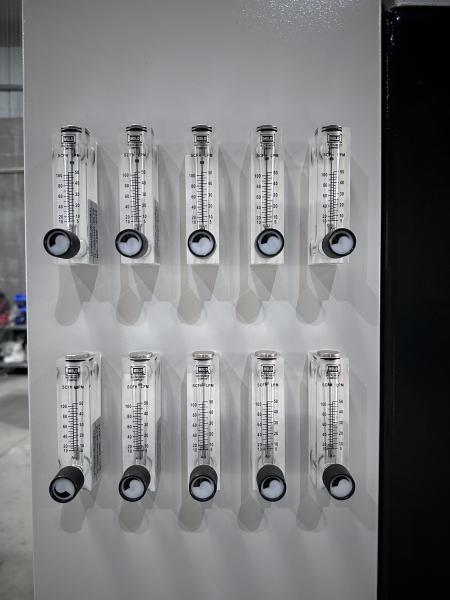

Flow Meter TOFCO 1 SET
Thermocouple THERMOWAY 1 SET
Lifting System
1 SET
Temperature Control Module Azbil 1 SET
PLC SIEMENS 1 SET

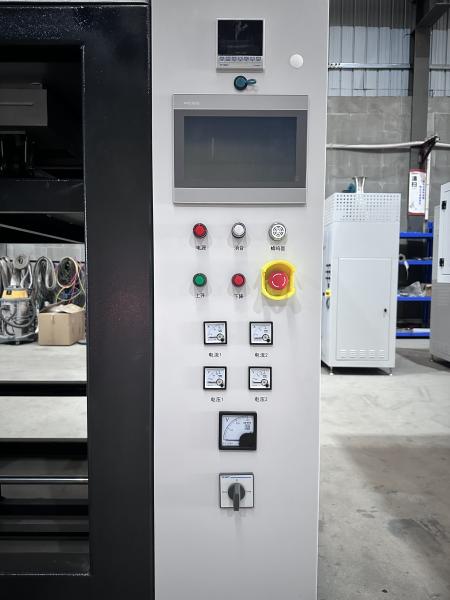

Touch Screen MCGS 1 SET
Spare Parts Heating Element U-shaped silicon molybdenum heater 1 PC



4. Normal Operating Conditions of The BF150-17 High-Temperature Bell Jar Furnace

  1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
  2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 10 - 30 m3/h;
  3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 35 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 600 Kg/m2;
  5. Power Condition(TBD): capacity > 70kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  6. Installation Site:3800mm×2650mm×3500mm(D×W×H), with an installation area greater than 12m2.

Company Profile

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
BF150-17 High-Temperature Bell Jar Furnace – Optimized for High-Temp Sintering Processes

Certifications


BF150-17 High-Temperature Bell Jar Furnace – Optimized for High-Temp Sintering Processes
BF150-17 High-Temperature Bell Jar Furnace – Optimized for High-Temp Sintering Processes

Packaging & Shipping


BF150-17 High-Temperature Bell Jar Furnace – Optimized for High-Temp Sintering Processes

BF150-17 High-Temperature Bell Jar Furnace – Optimized for High-Temp Sintering ProcessesBF150-17 High-Temperature Bell Jar Furnace – Optimized for High-Temp Sintering ProcessesBF150-17 High-Temperature Bell Jar Furnace – Optimized for High-Temp Sintering Processes

FAQ

1.What products does Chitherm offer?
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
2.What pre-sales services does Chitherm provide?
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
3.What are Chitherm's core strengths?
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
