Specifications
Brand Name :
Chitherm
Model Number :
HWF80-04N
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
50 Sets/Year
Delivery Time :
90 work days
Packaging Details :
Wooden Packaging
Model NO. :
HWF80-04N
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Vacuum/Nitrogen
Effective Chamber Dimensions :
400*400*500mm(W*H*D)
Maximum Temperature :
400°c
Maximum Heating Power :
15kw
Idle Furnace Insulation Power :
≤7.5kw
Temperature Control Accuracy :
±1°c
Thermocouple Type :
K-Type
Transport Package :
Wooden Packaging
Specification :
1500*1950*1750mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Package Size :
1550.00cm * 1960.00cm * 1760.00cm
Package Gross Weight :
1000.000kg
Customization :
Available
Place Style :
Vertical
Range of Applications :
Industrial
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description
HWF80-04N Series Precision Atmosphere-Controlled Vacuum Muffle Furnace with 400°C Max Temperature 15kW Heating Power and ±1°C Accuracy

I. Basic Equipment Information

Item Details
Equipment Model HWF80-04N Type Hydrogen Removal Furnace
Application Field Heat treatment processes such as decarburization, hydrogen removal, annealing, tempering, and binder removal
Equipment Weight Approximately 1000kg
Equipment Color Light gray
Reference Overall Dimensions 1500×1950×1750mm (W×H×D), subject to the actual product
Installation Site Dimensions 3000mm×2500mm×3000mm (D×W×H), installation area ≥8m²

2. Core Technical Indicators
Temperature-related
Rated Temperature: 350ºC (unlimited holding time); Maximum Temperature: 400ºC
Heating Rate: ≤5ºC/min; Temperature Control Accuracy: ±1ºC (with PID parameter self-tuning function)
Temperature Uniformity: ±5ºC (tested in empty furnace at 350ºC for 1h under constant temperature); Cooling Method: Furnace cooling (time from 350ºC to room temperature <12h)
Heating Method: Hot air circulation heating; Heating Element: Internal heating with stainless steel heating tubes
Maximum Heating Power: 15kW; Empty Furnace Holding Power: ≤7.5kW
Thermocouple Type: K grade; Temperature Control Points: 1 point (reserved detection port for installing armored flexible thermocouple for real-time monitoring)
Atmosphere and Vacuum-related
Sintering Atmosphere: Vacuum/Nitrogen; Ultimate Vacuum Degree: 10-²Pa (empty furnace, clean, room temperature, fully degassed)
Vacuum Pumping Time: ≤60min (from atmospheric pressure to 10-²Pa); Oxygen Content: Better than 50ppm (under positive pressure inert atmosphere)
Equipped with a micro-oxygen analyzer to detect oxygen content inside the tank; Number of Exhaust Ports: 1
Structure and Safety
Tank Material: SUS316L; Effective Dimensions: 400×400×500mm (W×H×D)

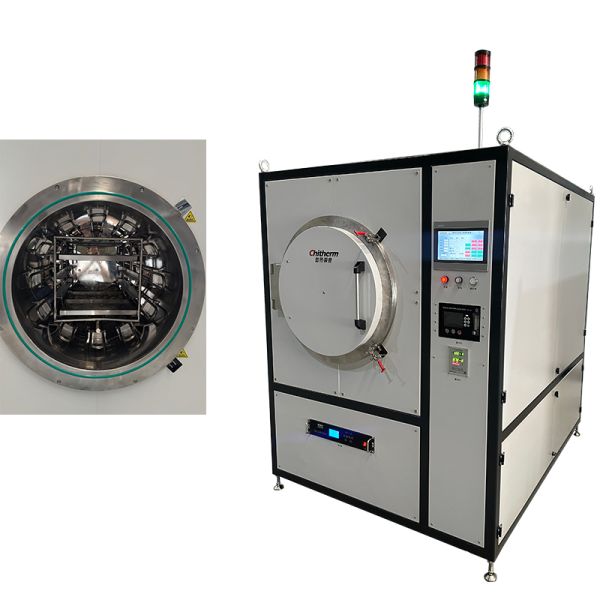

Loading Method: Manual loading, with horizontal guide rails and racks inside the tank
Surface Temperature Rise: <35ºC; Alarm Protection: Acoustic and optical alarm protection for over-temperature, thermocouple breakage, low air pressure, low water pressure, motor under/over phase, etc., and over-temperature alarm to cut off heating protection function
3. Installation and Operation Conditions
Environmental Conditions: Temperature 0~40ºC, Humidity ≤80%RH, no corrosive gas, no strong air disturbance
Gas Source Conditions
Nitrogen: Pressure 0.2~0.4Mpa, Purity 99.999%, Gas Consumption 2~6m³/h
Compressed Air: Clean, dry, oil-free, Pressure 0.4~0.8Mpa
Water Inlet Conditions: Pressure 0.1~0.3Mpa, clean, non-corrosive, supply flow rate 1~3L/min
Ventilation System: Non-contact connection to the user's air extraction system, extraction capacity >10m³/h
Ground Requirements: Level, no obvious vibration, load-bearing capacity >500kg/m²
Power Conditions: Capacity >22kVA, 3-phase 5-wire, Voltage 220/380V, Frequency 50Hz (Live wire: Yellow/Green/Red, Neutral wire: Blue, Ground wire: Yellow-green)
