Specifications
Model Number :
hwf160-10nh
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions :
500*500*650mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1650*1950*2000mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description

Controlled Atmosphere Processing Hwf160-10nh Vacuum Atmosphere Furnace Heater Tank 1000 ordm C with ISO Certification

1. Application:

This furnace is mainly designed for soldering process of metal parts and HTCC package, also can be used in other processes such as decarburization, annealing, quenching, scorching, hardening, thermal decomposition.

2. Technical Specification:
  1. Rated Temp.: 900ºC
  2. Max Temp.: 1000ºC
  3. Atmosphere: N2, H2, with humidification
  4. Oxygen Content: Measured by O2 content analyzer

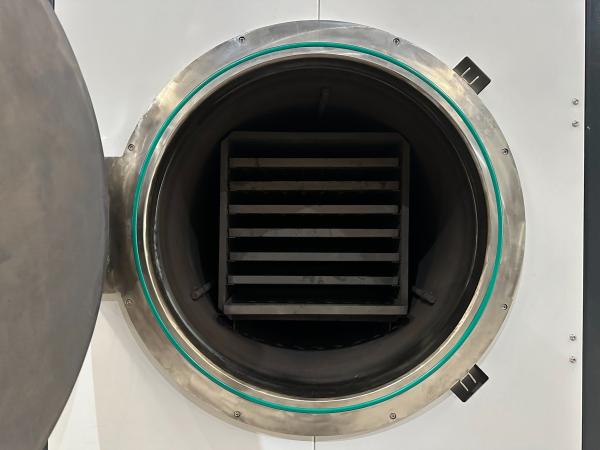

  5. Muffle Material: SUS 310S
  6. Muffle Dimensions: φ750mm×900mm(d×D)
  7. Effective Chamber Dimensions: 500×500×650mm(W×H×D)
  8. Loading Method: Manual, through horizontal guideway shelves
  9. Heating Method: Resistance wire pre-built heating plate
  10. Cooling Method: Air cooling with blower
  11. Temp. Control Stability: ± 1ºC(controller with P.I.D function)
  12. Profile Steps: Default 20 steps
  13. Temp. Uniformity: ± 5ºC
  14. Thermcouple: Type K
  15. Temp Control: 3 Points
  16. Temp. Measurement: 1 Point
  17. Max. Heating Power: 40kW
  18. Typical Insulation Power: ≤ 25kW
  19. Heating Speed: ≤ 5ºC/min
  20. Furnace Surface Temperature: ≤ 40ºC
  21. Max Vacuum Value: ≤ 10Pa
  22. Exhaust System: 1 exhaust port on the top with H2 igniter
  23. Alarm System: audible and visual alarm in case of over temp, thermcouple broken, low air pressure, low water pressure, substandard vacuum level, etc
  24. Weight: 1500kg
  25. Appearance Colour: Light Grey
  26. External Dimensions: 1650mm×1950mm×2000mm (W×H×D)
Controlled Atmosphere Programmable Muffle Furnace For Heat Treatment 1000 C

3. Delivery List
Table 1 Delivery list
Item Note Qty.
Basic Components Furnace 1 SET
inspection certificate Certificate of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components Heating Element FEC ceramic fiber heater 1 SET
Vacuum System 1 SET
Touch Screen 1 SET
Temperature Controller Azbil 1 SET
Thermocouple Type K 1 PCS
PLC 1 SET
Spare Parts SSR 1 PC


4. Facility Requirements
  1. Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance.
  2. N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m3/h.
  3. H2 Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 1-3m3/h.
  4. Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
  5. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 15m3/h
  6. Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m2;
  7. Power Condition(TBD): capacity > 55kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  8. Installation Site: 3000mm×2500mm×3000mm(D×W×H), with an installation area greater than 7.5m2.
