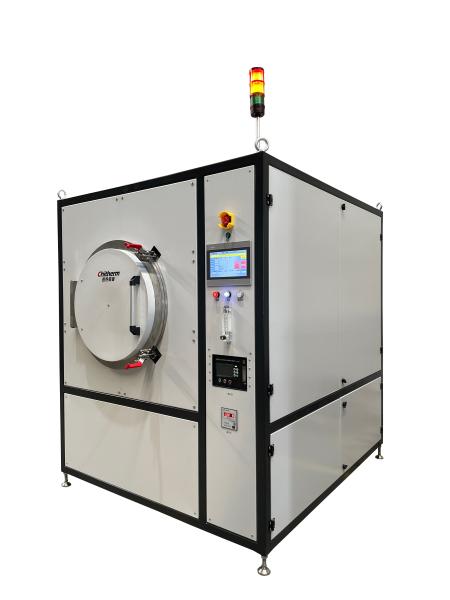

The equipment consists of an outer frame, a heating furnace chamber, a vacuum tank, a sealing door, a vacuum system, a atmosphere system, and a control system.

1)Common temperature: 1000 ° C;
2) Maximum temperature: 1100 ° C;
3) temperature control stability: ± 1C, with PID parameter self-tuning function;
4) Temperature uniformity: ± 5 ° C, 1000 ° C platform constant temperature for 1 hour empty furnace test, reserved testing port;
5) Maximum heating rate: 10° C / min
6) Temperature control number: 3 points; Temperature control thermocouple: N degree; Add a separate temperature measurement number: 1 point; A temperature gauge hole is also set aside for customers to measure their own temperature.
7) Tank material: Inconel601;
8) Tank size: Φ 630 × 900 (d × D);
9) Effective size: 400 × 400 × 500 mm (W × H × D) (this is the uniform temperature field area);
10) Material bearing method: the bottom support plate in the tank, bearing ≥ 40kg, 2 workbenches;
11) Heating element: FEC ceramic fiber heater, arranged outside the furnace, life ≥ 10000 h;
12) Maximum heating power: 48kW;
13) Typical insulation power of empty furnace: ≤ 20kW;
14) Number of procedural steps: 30 steps;
15) Sintering atmosphere: argon or air;
16) Oxygen content: better than 10 ppm + gas source oxygen content;
17) Oxygen monitoring: configure a microoxygen oxygen meter to monitor the oxygen content in the furnace in real time (not available in air condition);
18) Limit true space: ≤ 100pa (exhaust time ≤ 10min);
19) cooling method: external forced cooling of the blower (cooling rate ≥ 2C / min below 500C);
20) The external surface temperature of the equipment: ≤ 35 ° C;
21) Alarm protection: sound and light alarm protection such as ultra-temperature, deadlock, low air pressure, low water pressure, substandard vacuum, and has ultra-temperatured and dead heating protection function;
22) Equipment weight: about 1000Kg;
23) Equipment color: light grey;
24) External reference size: 1500 × 1900 × 1800 mm (W × H × D), the specific size is subject to the actual product.
