Specifications
Model Number :
VBF1200-02
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Sintering
Fuel :
Electric
Atmosphere :
Vacuum
Effective Dimension :
850*850*1600mm(W*H*D)
Max Vacuum Level :
8PA
Transport Package :
Wooden Packaging
Specification :
850mm*850mm*1600mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Horizontal
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description

Max Vacuum Level 8PA Industrial Laboratory Furnace Vbf1200-02 High Vacuum System Oven Furnace for Industrial Applications

Typical applications:
Primarily used for vacuum heating degassing of the coupler housing and suppression of air oxidation.

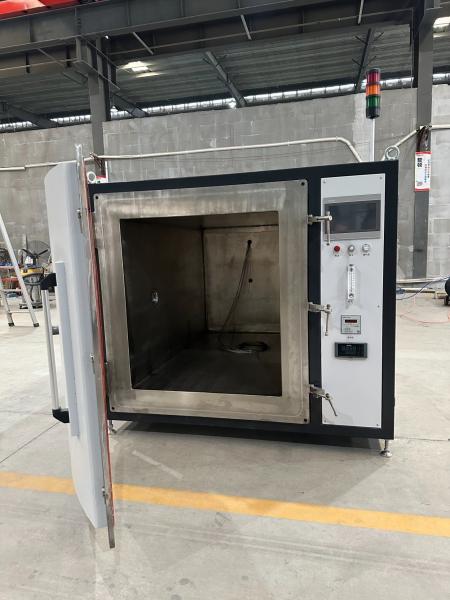

8PA Vacuum Heat Treatment Muffle Furnace for Industrial Laboratory
Parameter characteristics:
1. Product Model: Non-standard Customization
2 Operating Temperature: RT ~ 200°C
3. Maximum Temperature: 200°C
4. Furnace Cavity Dimensions: 900×1000×1600mm (W×H×D)
5. Heating Element: Ceramic Fiber Heating Plate
6. Controlled Atmosphere: 1 channel of nitrogen
7. Temperature Control Accuracy: ±1°C
8. Control Mode: Imported temperature controller with PID parameter auto-tuning
9. Number of Temperature Control Points: 3 points (front, middle, and rear)
10. Number of Temperature Measurement Points: 8 SMD thermocouples
11.Vacuum Detection: Vacuum gauge tube and vacuum gauge for supporting detection
12. Alarm and Protection: Over-temperature, broken thermocouple, vacuum pump overload, low pressure, under-reverse phase, etc. audio-visual alarm protection
13. Design Power: ~12kW
14. Power Supply: Three-phase five-wire, 380/220VAC, 50Hz
15. Equipment Weight: ~1200Kg
16.Overall Dimensions: 1690mm×1550mm×2290mm (W×H×D).

Table One: Delivery Checklist

Name Main Content Quantity
Basic Components Kiln main body 1 unit
Inspection certificate Certificate of conformity for each major purchased component 1 set
Technical documents Instruction manual, technical documents for each major purchased component, etc. 1 set
Key Components Heating element Ceramic fiber heating plate 1 set
Touchscreen 10-inch touchscreen 1 unit
Temperature controller Yokogawa temperature controller 1 unit
Screw pump BaoSi GSD120 B screw pump 1 unit
SMD thermocouples 8 sets
Spare Parts SMD thermocouples 2 sets

Normal Operating Conditions of the Equipment

1 Environmental Conditions: Temperature 0 - 40°C, humidity ≤ 80% RH, no corrosive gases, and no strong air flow disturbances.

2 Floor Requirements: Level, without obvious vibration, with a bearing capacity > 500 Kg/m².

3 Power Conditions: Capacity greater than 24 kVA, three-phase five-wire system, voltage 220/380 V, frequency 50 Hz. Live wire: yellow, green, red; neutral wire: blue; earth wire: yellow-green.

4 Installation Site: 2500 mm × 3000 mm × 3000 mm (W × H × D), with an installation area greater than 8 m².
