Hwf160-10nh Vacuum Atmosphere Tank Furnace for Nitrogen and Hydrogen Atmosphere in 1650*1950*2000mm W*H*D Size
1. Equipment Name and Model:

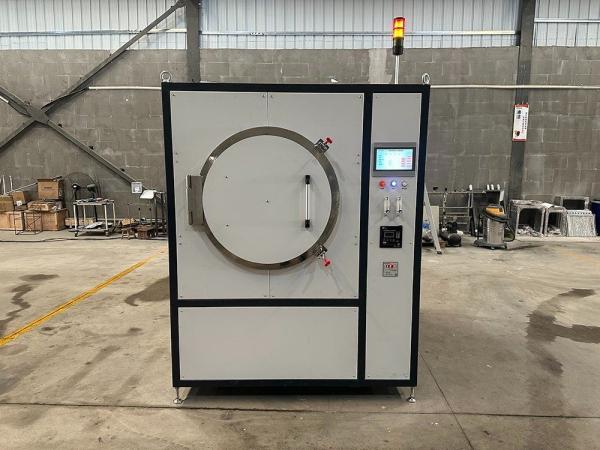

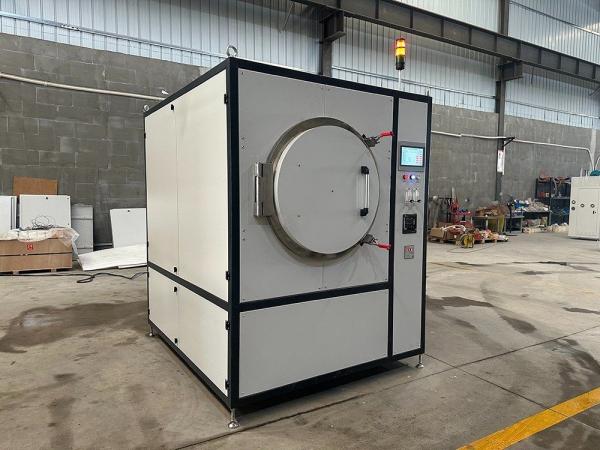

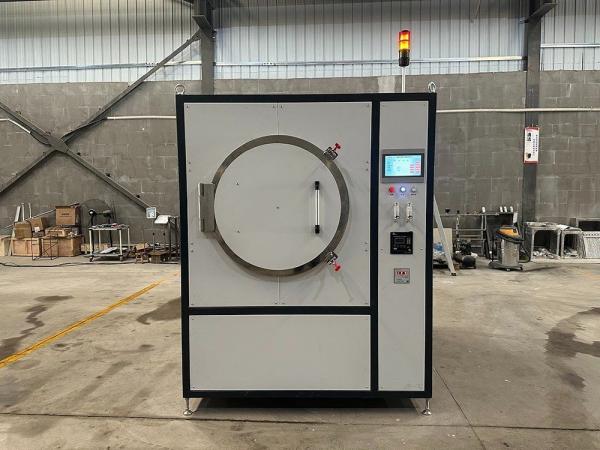

HWF160-10NH Vacuum Atmosphere Tank Furnace

2. Technical Indicators and Basic Configuration
2.1 Rated Temperature: 900°C;
2.2 Maximum Temperature: 1000°C;
2.3 Tank Material: SUS310S;
2.4 Tank Dimensions: Φ750×900mm (d×D);
2.5 Effective Size: 500×500×650mm (W×H×D);

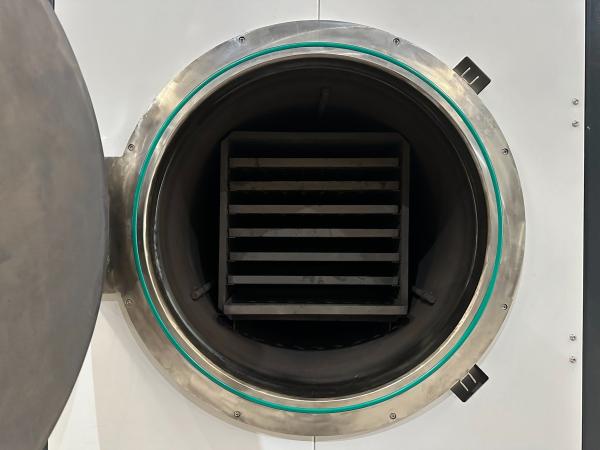

2.6 Material Loading Method: Stainless steel saggars, a total of 7 layers, 2 saggars per layer, 14 saggars in total;
2.7 Cooling Method: Natural cooling;
2.8 Heating Element: FEC ceramic fiber heater;
2.9 Temperature Control Stability: ±1°C, with the function of PID parameter self-tuning;
2.10 Temperature Uniformity: ±5°C (tested in an empty furnace at a constant temperature of 900°C for 1 hour), with a reserved detection port;
2.11 Temperature Control Thermocouple: K graduation;
2.12 Number of Temperature Control Points: 3 points;
2.13 Number of Temperature Measuring Points: 1 point;
2.14 Number of Temperature Control Segments: Default 9 segments;
2.15 Sintering Atmosphere: Nitrogen, hydrogen or a mixture of nitrogen and hydrogen;
2.16 Oxygen Content Detection: Equipped with an oxygen content analyzer that can be used under reducing atmosphere conditions;
2.17 Waste Gas Treatment: The discharged hydrogen is ignited when passing through the ignition device;
2.18 Alarm and Protection: Sound and light alarm protection for over-temperature, thermocouple breakage, low air pressure, low water pressure, ignition, motor under-phase and reverse-phase, unqualified vacuum degree, etc., and it has the function of power-off protection for over-temperature alarm;
2.19 Design Power: 40kW;
2.20 Typical Heat Preservation Power of the Empty Furnace: ≤25kW;
2.21 Heating Rate: ≤5°C/min;
2.22 Surface Temperature Rise: <35°C;
2.23 Ultimate Vacuum Degree: 10Pa;
2.24 Equipment Weight: Approximately 1500Kg;
2.25 Equipment Color: Light gray;
2.26 Reference Dimensions of the Appearance: 1650×1950×2000mm (W×H×D), and the specific dimensions shall be subject to the actual product.

3. General Technical Description
Lab High Temperature Vacuum Muffle Furnace For Nitrogen Hydrogen Atmosphere
Figure 1 Schematic Diagram of the Equipment Structure
3. Delivery List
Table 1 Delivery list
Item Note Qty.
Basic Components Furnace 1 SET
inspection certificate Certificate of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components Heating Element FEC ceramic fiber heater 1 SET
Vacuum System 1 SET
Touch Screen 1 SET
Temperature Controller Azbil 1 SET
Thermocouple Type K 1 PCS
PLC 1 SET
Spare Parts SSR 1 PC


4. Facility Requirements
  1. Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance.
  2. N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m3/h.
  3. H2 Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 1-3m3/h.
  4. Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
  5. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 15m3/h
  6. Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m2;
  7. Power Condition(TBD): capacity > 55kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  8. Installation Site: 3000mm×2500mm×3000mm(D×W×H), with an installation area greater than 7.5m2.
