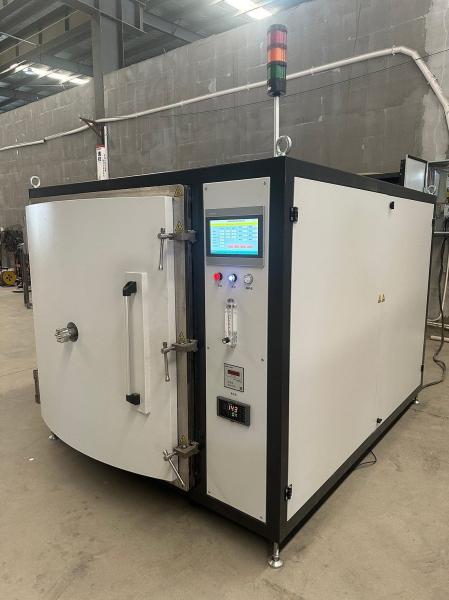

Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Specifications
Model Number :
VBF1200-02
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Steel Molding
Fuel :
Electric
Atmosphere :
Vacuum
Workpiece Dimensions :
664*731*733mm
Max Vacuum Level :
8PA
Transport Package :
Wooden Packaging
Specification :
850mm*850mm*1600mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Horizontal
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description
850mm*850mm*1600mm W*H*D High Vacuum System for Horizontal by Chitherm Vbf1200-02 Place Style HorizontalHorizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing
Horizontal Vacuum Muffle Furnace Large Stainless Steel For Degassing


Typical applications:
Primarily used for vacuum heating degassing of the coupler housing and suppression of air oxidation.

Parameter characteristics:

1. Rated Temp: 200 ºC
2. Material: Stainless steel
3. Effective Dimensions: 850 * 850* 1600mm (W* H *D);
4. Temp Uniformity: ±1 ºC
5. Temp Zones: 3 Zones
6. Heat Power: 12kW
7. Insulation Power: ≤6kW
8. Heating up Speed: ≤10ºC/min
9. Thermocouple:SMT Thermocouple
10. Process Steps: 9 Steps
11. Extreme vacuum degree:8Pa
12.Temperature control element:Platinum resistance
13.Surface temperature rise:≤35ºC
14. Vacuum Speed: ≤10ºC/min
15. Alarms: Over-temperature, broken couple, etc. sound and light alarm protection, and has over-temperature break heating function.
16. Workpiece Dimensions: 664mm*731mm*733mm(W*H*D)
17.Equipment weight:1200kg.
