Specifications
Brand Name :
Chitherm
Model Number :
HWF80-04N
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
50 Sets/Year
Delivery Time :
90 work days
Packaging Details :
Wooden Packaging
Model NO. :
HWF80-04N
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Vacuum/Nitrogen
Effective Chamber Dimensions :
400*400*500mm(W*H*D)
Maximum Temperature :
400°c
Maximum Heating Power :
15kw
Idle Furnace Insulation Power :
≤7.5kw
Temperature Control Accuracy :
±1°c
Thermocouple Type :
K-Type
Transport Package :
Wooden Packaging
Specification :
1500*1950*1750mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Package Size :
1550.00cm * 1960.00cm * 1760.00cm
Package Gross Weight :
1000.000kg
Customization :
Available
Place Style :
Vertical
Range of Applications :
Industrial
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description
HWF80-04N High Reliability Vacuum Muffle Furnace with 350°C Long Operation and ≤7.5kW Insulation PowerI. I. Basic Equipment Information
Equipment Name and Model: HWF80-04N Hydrogen Removal Furnace
Main application areas: thermal treatment processes such as decarbonization, dehydrogenization, refractory, refractorying, and regluing.
II. Core technical indicators
Temperature parameters:
Temperature: 350 ° C (it can be operated at this temperature for a long time).
Maximum temperature: 400 ° C.
Temperature rate: ≤ 5 ° C / min.
Empty furnace insulation power: ≤ 7.5kW.
Workspace:
Effective size: 400 mm (wide) x 400 mm (high) x 500 mm (deep).
Tank material: SUS316L stainless steel.
Temperature control accuracy:
Temperature control accuracy: ± 1 ° C.
Temperature uniformity: ± 5 ° C (Outcome of empty furnace test after 1 hour of constant temperature at 350 ° C).
Vacuum performance:
Limit true air: ≤ 1 × 102 pa (empty furnace, clean, room temperature).
Vacuum extraction time: The required time from atmospheric pressure to 102 pa is ≤ 60 minutes.
The atmosphere system:
Optional atmosphere: vacuum or nitrogen.
Oxygen concentration: The oxygen concentration in the furnace is less than 50 ppm (equipped with a micro-oxygen analysis instrument) when nitrogen is introduced and maintained at a positive pressure.
Heating & Cooling:

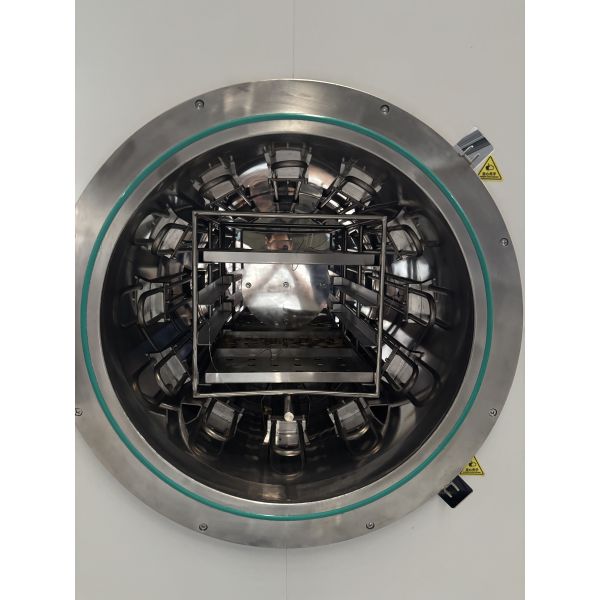

Heating mode: Stainless steel heating pipe is heated internally and the hot air circulates.
Maximum heating power: 15 kW.
How to cool: cool naturally with the furnace.The time to cool from 350 ° C to room temperature is less than 12 hours.
Control system:
Number of procedural steps: Up to 20 steps.
Temperature control number: 1 point.
Thermocouple type: K degree.
Temperature measurement interface: a detection port is reserved for the installation of a armored thermocouple for real-time monitoring.
III. Safety protection functions
Alarm and protection: It has sound and light alarm functions for supertemperature, rupture of a thermocouple (couple), low air pressure, low water pressure, and defects of the motor phase or inverse phase.
Active protection: It has a protection function that automatically cuts off heating after an ultra-temperature alarm.
Surface temperature rise: The temperature rise of the external surface area is less than 35 °C.
IV. Physical characteristics of the equipment
Weight of the equipment: approximately 1000 kg.
Device Color: Light gray.
Form reference size: approximately 1500 mm (wide) x 1950 mm (high) x 1750 mm (deep), specific dimensions based on the physical material.
V. Installation and utility engineering requirements
Environmental conditions:
Environmental temperature: 0 to 40 ° C.
Ambient humidity: ≤ 80% RH.
Environmental requirements: No corrosive gases, no strong airflow disturbances.
Power and utilities:
Power: capacity greater than 22 kVA; Three-phase five-wire system, voltage 220 / 380 V, frequency 50 Hz.
Nitrogen: gas source pressure 0.2 ~ 0.4 MPa, purity 99.999%, gas consumption 2 ~ 6 m3 / h.
Compressed air: clean, dry, oil-free, pressure 0.4 ~ 0.8 MPa.
Cold water: pressure 0.1 ~ 0.3 MPa, clean water, no corrosion, supply flow 1 ~ 3 L / min.
Venue requirements:
Installation space: It is recommended to reserve a space of 3000 mm (depth) x 2500 mm (width) x 3000 mm (height), and the installation area is greater than 8 m2.
Ground requirements: the ground needs to be level, no obvious vibration, bearing capacity > 500kg / m2.
Ventilation and exhaust: non-contact access to external exhaust system with exhaust capacity greater than 10 m3 / h.HWF80-04N High Reliability Vacuum Muffle Furnace with 350°C Long Operation and ≤7.5kW Insulation Power HWF80-04N High Reliability Vacuum Muffle Furnace with 350°C Long Operation and ≤7.5kW Insulation PowerHWF80-04N High Reliability Vacuum Muffle Furnace with 350°C Long Operation and ≤7.5kW Insulation PowerHWF80-04N High Reliability Vacuum Muffle Furnace with 350°C Long Operation and ≤7.5kW Insulation Power
