OEM Dielectric High Flexible ADSS Armored Fiber Optic Cable No Metal Material In The Structure

ADSS cable---All dielectric self-support fiber optic cable -No metal material in the structure​

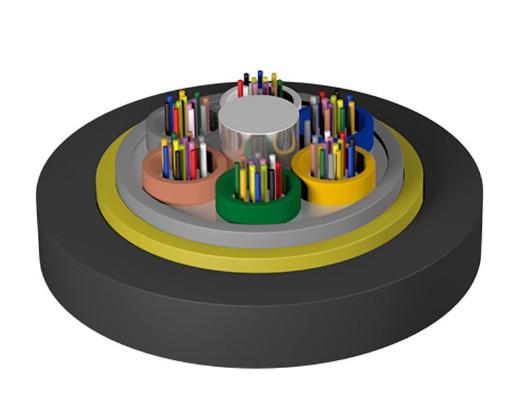

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Structure characters

•Loose tube with non-metallic strengthen member
•High flexible amaid yarn
•Can work at electric field<=25KV/m in a long period

•Accurate process control ensuring good mechanical and temperature performances
• All-dry design improving efficiency of construction and splicing
• Small size, light weight and soft, applicable for self-supporting aerial installation
• Aramid yarns providing good tensile performance

Properties

1. Up to 144 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.

Applicable Fields

1. Long distance telecom, LAN in high voltage area or access to telecom network.
2. For power transmission system, much thunder areas and high electro-magnetic inerference.

Technical Date

(for 24 core fiber, 800m span)

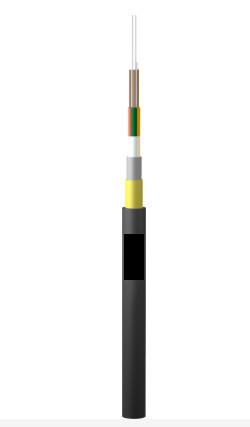

Product Structure
