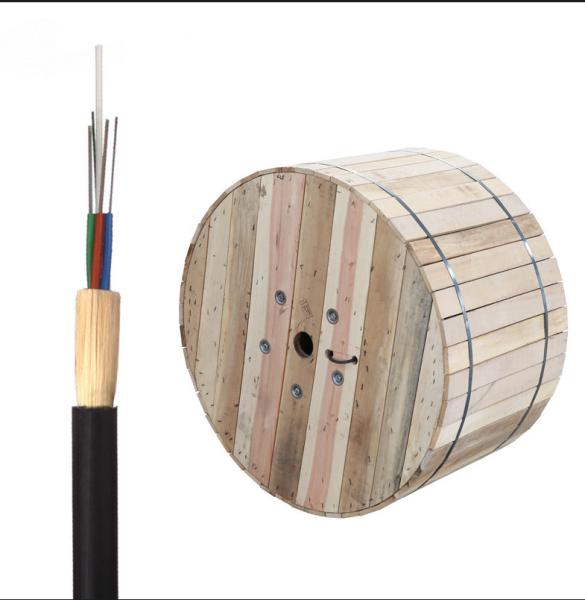

G652D Aerial All Dielectric ADSS Fiber Optic Cable FRP Black HDPE Sheath
G652D Aerial All Dielectric ADSS Fiber Optic Cable FRP Black HDPE Sheath
Specifications
Brand Name :
MingTong
Model Number :
ADSS
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
Model No :
ADSS
Fiber :
Single Mode Or Multi Mode
TypeLoose Tube Material& Filling Material :
PBT&Jerry
Color Of Loose Tube :
Blue, Orange,Green , Brown,Red Etc
Core Moisture Protection Methodology :
Water Blocking Tape Or Filling Compound
Strength Material :
High Flexible Amaid Yarn
Cable Color :
Black
Highlight :
G652D Aerial ADSS Fiber Optic Cable, HDPE Aerial ADSS Fiber Optic Cable, FRP Aerial ADSS Fiber Optic Cable
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Name :
ADSS Cable
Description
Product Description

G652D fiber FRP black HDPE sheath Aerial ADSS Fiber Optic Cable

ADSS cables(Full Dielectric Self Support) are ideal for installation in power distribution and transmission environments. ADSS does not require support or messenger lines, so it can be completed in one installation, making ADSS an economical and simple way to realize fiber optic networks. It is the first choice when producing your own accessory hardware and supplying formed wire accessories.

Characteristics

1.All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure.

2.Large number of fiber cores, light weight, can be laying with the power line, saving resources.

3.Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots.

4.Small thermal expansion, the variation of the arc of the cable line is small when the temperature changes greatly.

5.PE/AT outer sheath.

Applications

1.Adopted to Outdoor distribution

2.Network in high electromagnetic interfering places

3.Long distance and local area network communication

4.Low-voltage transmission and distribution system

Optical Characteristic

G.652 G.655 50/125μm 62.5/125μm

Attenuation(+20ºC)

 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

ADSS Fiber Optic Cable Technology Specification:
Ref.outer diameter
(mm)		 Ref.weight

kg/km Weight		 Ref.daily max.working tension

(kN)
 Max allowable working tension
(kN)		 Break strength

(kN)		 Strength member CSA

(mm2)		 Modulus of elasticity kN/
(mm2)		 Heat expansion coefficient ×10-6 /k
PE sheath
AT sheath
12.5 125 136 1.5 4 10 4.6 7.6 1.8
13 132 142 2.25 6 15 7.6 8.3 1.5
13.3 137 148 3.0 8 20 10.35 9.45 1.3
13.6 145 156 3.6 10 24 13.8 10.8 1.2
13.8 147 159 4.5 12 30 14.3 11.8 1.0
14.5 164 177 5.4 15 36 18.4 13.6 0.9
14.9 171 185 6.75 18 45 22 16.4 0.6
15.1 179 193 7.95 22 53 26.4 18 0.3
15.5 190 204 9.0 26 60 32.2 19.1 0.1
15.6 194 208 10.5 28 70 33 19.6 0.1
16.3 211 226 12.75 34 85 40 20.1 -0.4
16.8 226 242 15.45 41 103 48 24 -0.5
17.2 236 253 16.2 45 108 51 25.1 -0.8
17.9 249 266 18 50 120 58.8 26.1 -0.8

ADSS optic fiber cable Optical Characteristics:
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A,B,C) B1.1:Conventional fiber
G.652D B2: Zero dispersion shifted
G.655 B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3) B4: Main technical data for positive
dispersion shifted single-mode fiber
