Fiber Aerial Cable 12 Core 24 Core 48 Core Fiber Optic Cables
Fiber Aerial Cable 12 Core 24 Core 48 Core Fiber Optic Cables
Fiber Aerial Cable 12 Core 24 Core 48 Core Fiber Optic Cables
Fiber Aerial Cable 12 Core 24 Core 48 Core Fiber Optic Cables
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
Outer Sheath Color :
PBT
Model :
ADSS
Length :
1/2/3/4/5KM
Cable Diameter :
7.0mm±0.5mm
Csm :
FRP
Rodent Protection :
Yes
Llength :
1m/2m/5m/customized
Jacket Color :
Black Or As Requested
Fiber Number :
12-288 Fiber
Fiber Type :
Single-mode G.652D
Strength Number :
FRP, Kevlar Aramid Yarn
Highlight :
24 Core Fiber Aerial Cable, 12 Core Fiber Aerial Cable, 48 Core Fiber Aerial Cable
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
ADSS Cable
Description

Fiber Aerial Cable 12 Core 24 Core 48 Core Fiber Optic Cables


Fiber Aerial Cable 12 Core 24 Core 48 Core Fiber Optic Cables

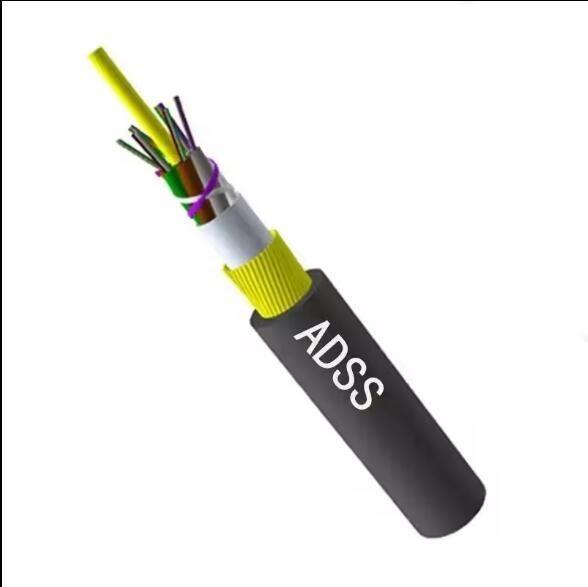

Structure characters
Loose tube with non-metallic strengthen member.High flexible amaid yarn.Can work at electric field<=25KV/m in a long period
Properties
1. Up to 288 optic fibers
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.
Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to telecom network;
2. For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical Date:(for 24 core fiber, 800m span)

Fiber Optic Range Span(M) Out-diameter(MM) Module(N/) Linear Expanding Coefficient(1/K) Weight(KG/KM) Safely running strain(N)
Weather condistion:wind speed: 35m/s and 0mm ice thickness.
24 800 15.5 2.86X10 0.02X10 200 29680
Weather condistion:wind speed: 10m/s and 5mm ice thickness.
24 800 14.5 2.33X10 0.11X10 185 19600
