All-Dielectric Self-Supporting Outdoor Aerial ADSS 48 Core Fiber Optic Cable Span 100-1000m
All-Dielectric Self-Supporting Outdoor Aerial ADSS 48 Core Fiber Optic Cable Span 100-1000m
All-Dielectric Self-Supporting Outdoor Aerial ADSS 48 Core Fiber Optic Cable Span 100-1000m
All-Dielectric Self-Supporting Outdoor Aerial ADSS 48 Core Fiber Optic Cable Span 100-1000m
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
Central Strength Member :
FRP
Fiber Type :
G652D, G657A1, G657A2
Fiber Count :
48 Fibers
Span :
100m, 150m, 200m, 250m, 300m,350m, 400m,450m,500m, Etc,
Jacket Material :
PE Or AT
Operating Temperature :
From -40 To +70
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Highlight :
All Dielectric 48 Core Fiber Optic Cable, Aerial ADSS 48 Core Fiber Optic Cable, Outdoor ADSS 48 Core Fiber Optic Cable
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
ADSS Cable
Description

ADSS All-dielectric Self Support Outdoor Aerial

Fiber Optic Cable For 48 core

All-Dielectric Self-Supporting Outdoor Aerial ADSS 48 Core Fiber Optic Cable Span 100-1000m

All-Dielectric Self-Supporting Outdoor Aerial ADSS 48 Core Fiber Optic Cable Span 100-1000m

Description

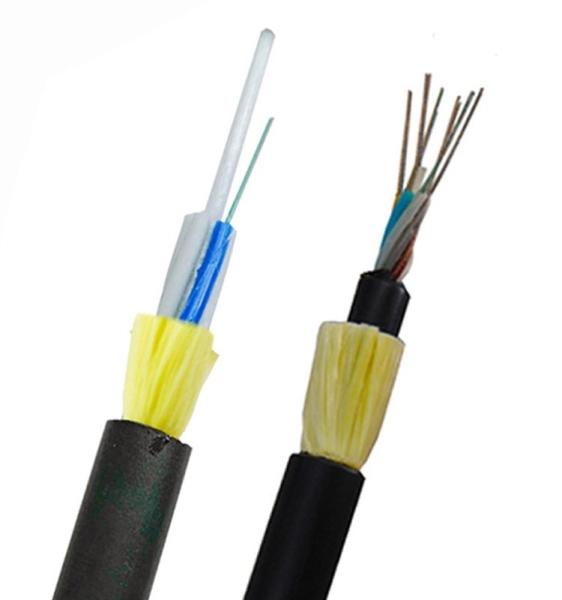

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Features

  • All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure
  • Large number of fiber cores, light weight, can be installed with power line, saving resources
  • Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots
  • Small thermal expansion, the varation of the arc of the cable line is small when the temperature changes greatly
  • Double layer of aramid yarn as strength member, meet the harsh enviroment such as the high-altitudes salt lake area or the line with a span of more than 800 meters
  • Three layer sheath, PE/AT as outer jacket

Specifications

Cable fiber count / 2~30 32~60 62~72
Structure / 1+5 1+5 1+6
Fiber style / G.652D
Central strength member material mm FRP
Diameter (average) 1.5 1.5 2.1
Loose Tube Material mm PBT
Diameter (average) 1.8 2.1 2.1
Thickness(average) 0.32 0.35 0.35
Max fiber/loose tube 6 12 12
Tubes color Full color identification
Fiber excess length % 0.7~0.8
Water resistance Material / Cable jelly
Inner sehath material mm MDPE
Inner sheath 0.9mm
Non-metallic strengthen components Material / Aramid Yarn
Outer sheath material mm MDPE
Outer sheath 1.8mm
Cable diameter(average) mm 10.9 11.5 12.1
Cable weight (Approximate) kg/km 95 110 120
Cable Sectional area mm2 93.31 103.87 114.99
Attenuation coefficient(Max) 1310nm dB/km 0.35
1550nm 0.21
Rated Tensile Strength(RTS) kn 6
Max allowed tension( MAT) kn 2.5
Annual average operating tension (EDS) kn 3.2
Young's modulus kn/mm2 7.8
Coefficient of thermal expansion 10-6/℃ 9
Crush resistance Long term N/100mm 1100
Short term 2200
Permission Bent Radius static mm 15 of OD
dynamic 20 of OD
Temperature When laying ℃ -20~+60
Storage and transportation -40~+70
runing -40~+70
Scope of application Suitable for voltage level under 110kV, wind speed below 25m/s, icing 5mm
Cable Marks

Company Name ADSS-××B1-PE-100M DL/T 788-2001 ××××M Year

(Or at customer’s request)

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
