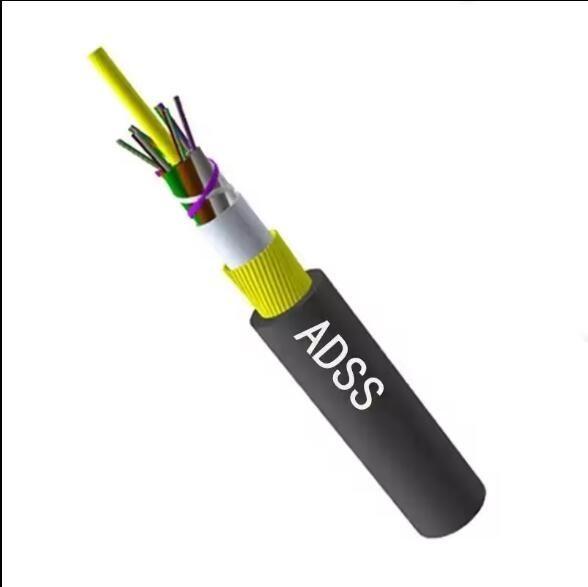

48 Core Adss Fiber Optic Cable Single Mode Fiber Optic Cable Armored China Fiber Optics Cable
48 Core Adss Fiber Optic Cable Single Mode Fiber Optic Cable Armored China Fiber Optics Cable
48 Core Adss Fiber Optic Cable Single Mode Fiber Optic Cable Armored China Fiber Optics Cable
48 Core Adss Fiber Optic Cable Single Mode Fiber Optic Cable Armored China Fiber Optics Cable
48 Core Adss Fiber Optic Cable Single Mode Fiber Optic Cable Armored China Fiber Optics Cable
48 Core Adss Fiber Optic Cable Single Mode Fiber Optic Cable Armored China Fiber Optics Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
Package :
Plywood Reel/customized
Fiber Options :
Itu G652D, G657A, Om1, Om2, Om3, Om4
Strengthening Structure :
FRP Strength Member
Fiber Count :
12
Number Of Fiber :
2-288
Cable Diameter :
7-17mm
Operating Temperature :
-20 To +60
Cable Use :
Aerial
Number Of Conductor :
≥ 10
Cable Color :
Black
Tensile Strength :
1000N
Material Shape :
Round Wire
Strength Member :
Armid Yarn
Installation Methods :
Aerial &Duct
Flame Retardant :
Yes
Highlight :
48 Core Fiber Optic Cable, Armored Fiber Optic Cable, 48 Core ADSS Fiber Optic Cable
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
ADSS Cable
Description

48 Core Adss Fiber Optic Cable Single Mode Fiber Optic Cable Armored China Fiber Optics Cable


48 Core Adss Fiber Optic Cable Single Mode Fiber Optic Cable Armored China Fiber Optics Cable

Structure characters
Loose tube with non-metallic strengthen member.High flexible amaid yarn.Can work at electric field<=25KV/m in a long period
Properties
1. Up to 288 optic fibers
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.
Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to telecom network;
2. For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical Date:(for 24 core fiber, 800m span)

Fiber Optic Range Span(M) Out-diameter(MM) Module(N/) Linear Expanding Coefficient(1/K) Weight(KG/KM) Safely running strain(N)
Weather condistion:wind speed: 35m/s and 0mm ice thickness.
24 800 15.5 2.86X10 0.02X10 200 29680
Weather condistion:wind speed: 10m/s and 5mm ice thickness.
24 800 14.5 2.33X10 0.11X10 185 19600


48 Core Adss Fiber Optic Cable Single Mode Fiber Optic Cable Armored China Fiber Optics Cable
