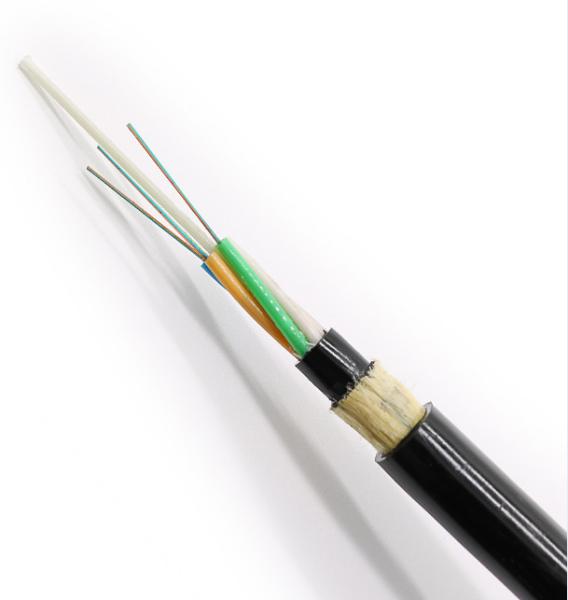

China Long Span Aramid Yarn Strength Armored Fiber Optic Cable Self Support Aerial ADSS
China Long Span Aramid Yarn Strength Armored Fiber Optic Cable Self Support Aerial ADSS
Specifications
Brand Name :
MingTong
Model Number :
ADSS
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
Type :
ADSS
Strength Material :
High Flexible Amaid Yarn
Material :
PE Sheath+Aramid Yain+FRP
Central Strength Member :
Non-metallic Strengthen Member
Jacket Color :
Black Or As Requested
Highlight :
self supporting fiber optic cable, dielectric fiber optic cable
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
ADSS Cable
Description
Product Description

Factory price Long Span Aramid Yarn Self-support aerial ADSS


This ADSS Non-Metallic Single Mode Fiber Optic Cable are suitable for outdoor aerieal installation.Light armored structure with Amaid Yarn messager makes ADSS Non-Metallic Single Mode Fiber Optic Cable reduce itself gravity.

Properties


1. Up to 288 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.


Applicable Fields


1.Long distance telecom, LAN in high voltage area or access to telecom network.
2.For power transmission system, much thunder areas and high electro-magnetic inerference.

3.Suitable for all type of aerial lines.

Technical Date

(for 24 core fiberr, 800m span)

Fiber range Span (m) Out-diameter (mm) Module (N/mm^2) Linera Expanding Coefficient (1/K) Weight (Kg/km) Safely running strain
Weather condition: 35 m/s wind speed and 0 mm ice thickness
24 800 15.5 2.86* 10^4 0.02* 10^-6 200 29680
Weather condition: 10 m/s wind speed and 5 mm ice thickness
24 800 14.5 2.33* 10^4 0.11* 10^-6 185 19600

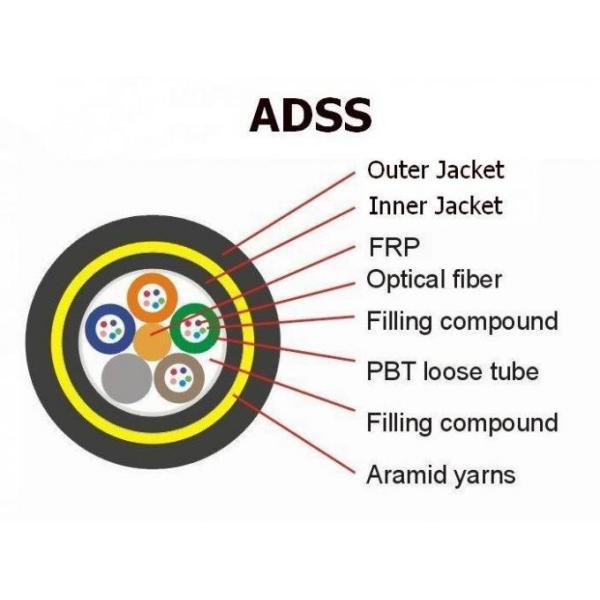

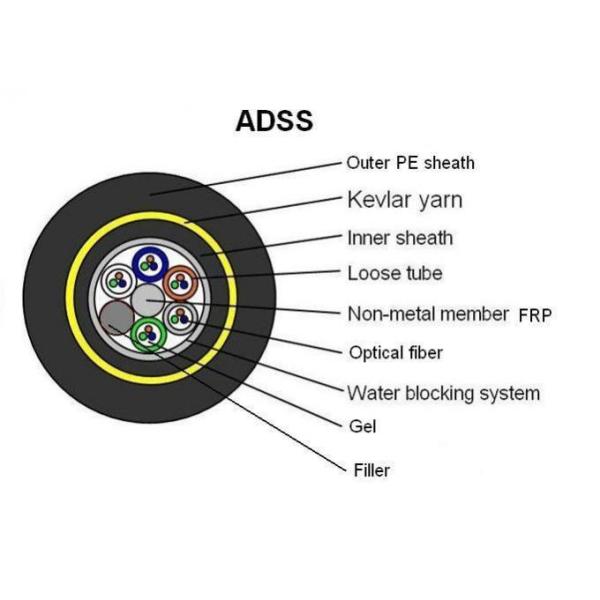

Product Structure


ADSS Non-Metallic Single Mode Fiber Optic Cable Structure characters:
Loose tube with non-metallic strengthen member
High flexible amaid yarn
Can work at electric field<=25KV/m in a long period
