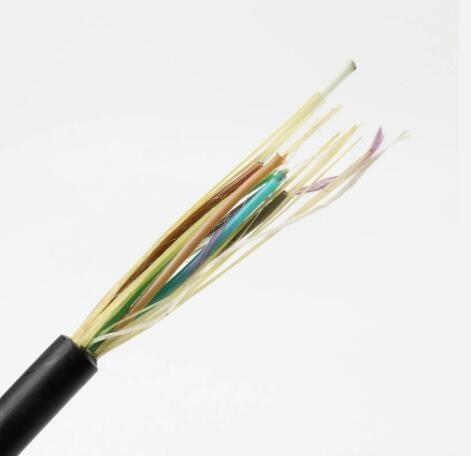

Outdoor 16 Core ADSS Cable PE Sheath OEM Fiber Optic Cable
Outdoor 16 Core ADSS Cable PE Sheath OEM Fiber Optic Cable
Outdoor 16 Core ADSS Cable PE Sheath OEM Fiber Optic Cable
Outdoor 16 Core ADSS Cable PE Sheath OEM Fiber Optic Cable
Outdoor 16 Core ADSS Cable PE Sheath OEM Fiber Optic Cable
Outdoor 16 Core ADSS Cable PE Sheath OEM Fiber Optic Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
ADSS Cable
Application :
Outdoor
Type :
ADSS Optical Fiber Cable
Fiber Number :
2-288
Sheath :
PE
Function :
Delivery Signal Light
Operating Temperature :
-40°C To +70°C
Temperature Range :
-40°~60°C
Material Jacket :
Black Polyethylene (PE)
Water Blocking Material :
Water Blocking Tape
Cable Length :
1km/2km/3km/4km/5km
Inner Sheath :
PE
Central Strengthen Member :
FRP
Warranty :
1 Year
Maximum Span :
1500m
Application For :
Aerial,Power Telecommunication
Highlight :
ADSS Outdoor Fiber Optic Kabel, 16 Core Outdoor Optical Cable ADSS
Description

Fiber Optic Kabel Fibra Optica 16 Outdoor Optical Cable ADSS


Outdoor 16 Core ADSS Cable PE Sheath OEM Fiber Optic Cable

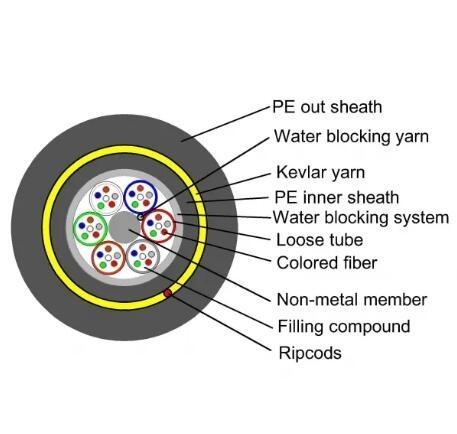

Structure characters
Loose tube with non-metallic strengthen member.High flexible amaid yarn.Can work at electric field<=25KV/m in a long period
Properties
1. Up to 288 optic fibers
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.
Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to telecom network;
2. For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical Date:(for 24 core fiber, 800m span)

Fiber Optic Range Span(M) Out-diameter(MM) Module(N/) Linear Expanding Coefficient(1/K) Weight(KG/KM) Safely running strain(N)
Weather condistion:wind speed: 35m/s and 0mm ice thickness.
24 800 15.5 2.86X10 0.02X10 200 29680
Weather condistion:wind speed: 10m/s and 5mm ice thickness.
24 800 14.5 2.33X10 0.11X10 185 19600


Outdoor 16 Core ADSS Cable PE Sheath OEM Fiber Optic Cable
