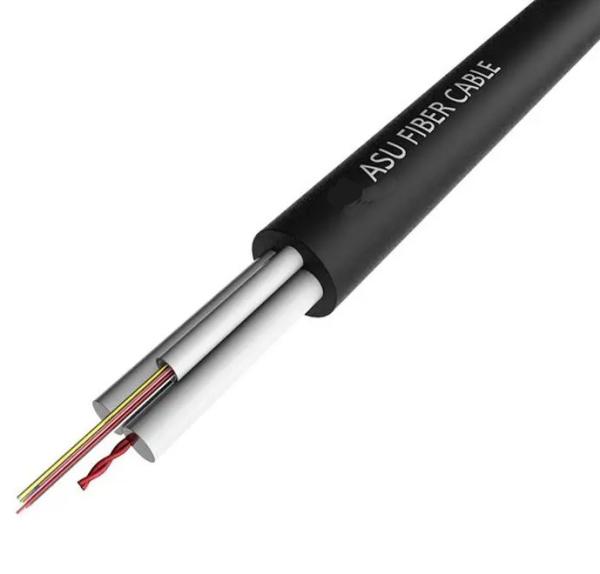

OEM G652D Cable 6 Core Outdoor Single Mode Self Support ADSS Fiber Optic Cable
OEM G652D Cable 6 Core Outdoor Single Mode Self Support ADSS Fiber Optic Cable
Specifications
Brand Name :
MingTong
Model Number :
ADSS
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Product Name :
6 Core ADSS Fiber Optic Cable
Fiber Count :
6
Fiber Options :
Itu G652D, G657A, Om1, Om2, Om3, Om4
Application :
Power Telecommunication
Highlight :
G652D ADSS Fiber Optic Cable, 6 Core ADSS Fiber Optic Cable, G652D adss ofc cable
Name :
ADSS Cable
Description
Product Description

G652D Outdoor Types 6 Core ADSS Fiber Optic Cable

ADSS cables are composed of 2 to 36 fibers containing tubes or fillers, which are twisted up to 3 layers around the central strengthening member and bound in a PE sheath. Each tube of our ADSS cable contains 6-12 fibers, and all fibers in the core are filled with water blocking gel. Packing can be used to maintain the geometry of the cable. The outer jacket is tightly wrapped in the aramid yarn layer, and the cable sheath includes an optional inner polyethylene sheath and an outer polyethylene sheath.


Advantages


1. Up to 144 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.

Applications

1.Network in high electromagnetic interfering places.

2.Long distance and local area network communication.

3.Low-voltage transmission and distribution system.

4.Suitable for all type of aerial lines.

Cable Performance Parameter

Span meter 200 300 400
Related Strength Tension(RTS) 17.5 kn 20.6 kn 28 kn
Max Allowable Tension(MAT) 6.9 kn 8.2 kn 11.5 kn
Allowable Crush Resistance Long Term: 1100 n/100mm Long Term: 1100 n/100mm Long Term: 1100 n/100mm
Short Term: 2200 n/100mm Short Term: 2200 n/100mm Short Term: 2200 n/100mm
Minimum Bending Radius Operating: 220 mm Operating: 220 mm Operating: 220 mm
Installlation: 360 mm Installlation: 360 mm Installlation: 360 mm
Temperature Range Operating: -40 /+70℃ Operating: -40 /+70℃ Operating: -40 / +70℃
Installlation: -15 / +60℃ Installlation: -15 / +60℃ Installlation: -15 / +60℃
Out Sheath Material Electrical Resistance AT (Borealis material 6081) Sheath
Note ice accretion 5MM,weed speed:30M/S
