FRP Black Single HDPE Sheath Aerial Purchase Fiber Optic Cable 2 Core - 144 Core
FRP Black Single HDPE Sheath Aerial Purchase Fiber Optic Cable 2 Core - 144 Core
Specifications
Brand Name :
MingTong
Model Number :
ADSS
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Type :
ADSS
Fiber Type :
Single Mode Or Multi Mode
Application :
Power Telecommunication
Highlight :
adss cable, dielectric fiber optic cable
Jacket :
PVC Outer Sheath
Name :
ADSS Cable
Description
Product Description

ADSS 2-144 Core All-Dielectric Self-Supporting Optical Fiber Cable manufacturers the floor price,outdoor fiber optic cab

FRP Black Single HDPE Sheath Aerial Purchase Fiber Optic Cable 2 Core - 144 Core

FRP Black Single HDPE Sheath Aerial Purchase Fiber Optic Cable 2 Core - 144 CoreFRP Black Single HDPE Sheath Aerial Purchase Fiber Optic Cable 2 Core - 144 Core

Description:

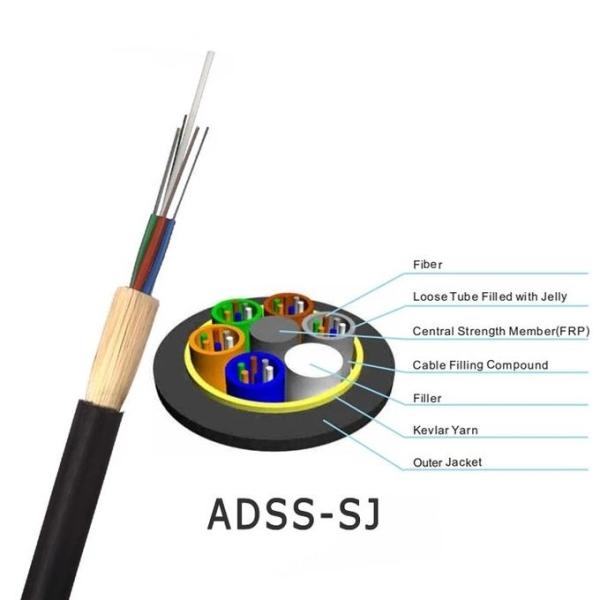

1. ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.

2. The tubes are filled with a water-resistant filling compound.

3. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

4. After the cable core is filled with filling compound.

5. it is covered with thin PE (polyethylene) inner sheath.

6. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Characteriatic:

1. Can be installed without shutting off the power
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV

Parameter:

Cable Type Fiber Count Tubes Fillers

Cable Diameter

mm

 Cable Weight kg/km Max working tension kN Strength member CSA mm2 Modulus of elasticity kN/mm2
ADSS 2 1 4 12.5 136 1.5 4.6 7.6
ADSS 4 2 3 13.0 142 2.25 7.6 8.3
ADSS 8 3 2 13.3 148 3.0 10.35 9.45
ADSS 10 4 1 13.6 156 3.6 13.8 10.8
ADSS 12 5 0 13.8 159 4.5 14.3 11.8
ADSS 14 6 0 14.5 177 5.4 18.4 13.6
ADSS 16 4 1 14.9 185 6.75 22.0 16.4
ADSS 20 5 0 15.1 193 7.95 26.4 18.0
ADSS 24 6 0 15.5 201 9.0 32.2 19.1
ADSS 28 7 1 15.6 208 10.5 33.0 19.6
ADSS 32 8 0 16.3 226 12.75 40.0 21.0
ADSS 36 9 1 16.8 242 15.45 48.0 24.0
ADSS 42 10 0 17.2 253 16.2 51.0 25.1
ADSS 48 11 1 17.9 266 18.0 58.8 25.1

Optical Characteristic:

G.652 G.655 50/125μm 62.5/125μm

Attenuation(+20ºC)

 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Packaging Detail: ADSS 2-288 Core Optical Fiber Cable package are with export wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM. Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cable drum from customers. welcome to contact us!

Specifications
· OEM 2-288 Core Optical Fiber Cable
· Cutomer LOGO
· Factory price
