Outdoor Aireal ADSS OFC Cable Single Mode 24 Core Waterproof For Power Telecommunication
Outdoor Aireal ADSS OFC Cable Single Mode 24 Core Waterproof For Power Telecommunication
Outdoor Aireal ADSS OFC Cable Single Mode 24 Core Waterproof For Power Telecommunication
Outdoor Aireal ADSS OFC Cable Single Mode 24 Core Waterproof For Power Telecommunication
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Telecommunication
Type :
Single Mode
Size :
24 Core
Fiber Type :
Single Mode
Jacket :
PVC Outer Sheath
Structure :
Loose Tube
Length :
As Required
Operating Temperature :
-40 ~ +60 C
Highlight :
Single Mode Aireal ADSS OFC Cable, 24 Core Aireal ADSS OFC Cable, 24 Core Outdoor adss fiber cable
Name :
ADSS Cable
Description

Outdoor Aireal Single Mode 24 Core ADSS Fiber Optic Cable

Outdoor Aireal ADSS OFC Cable Single Mode 24 Core Waterproof For Power Telecommunication


Description

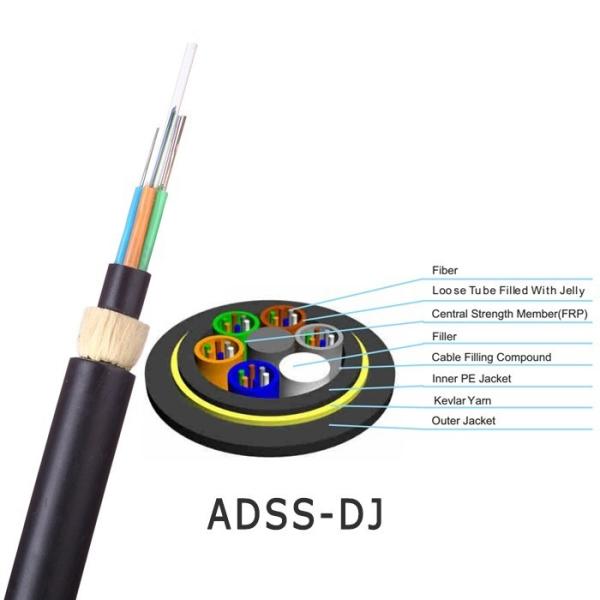

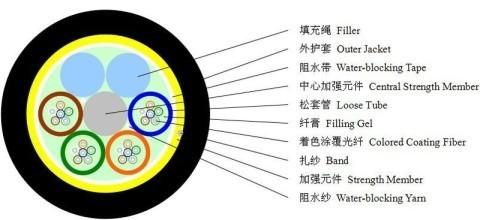

The ADSS cable is twisted in a loose tube. The structure of the optical cable is to sheath a 250μm optical fiber into a loose tube made of high modulus plastic, which is filled with a waterproof filling compound. The tube (and filler) is twisted around FRP (fiber reinforced plastic) as a non-metallic central strength member to form a compact circular cable core. After filling the cable core with filler, the outer layer is a thin polyethylene inner sheath, and the inner sheath adopts the aramid fiber stranded layer as the reinforcing member, and then the cable is made of PE.

Characteriatic
1. Can be installed without shutting off the power
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kv


Parameter

Cable Type Fiber Count Tubes Fillers Cable Diameter
mm		 Cable Weight kg/km Max working tension kN Strength member CSA mm2 Modulus of elasticity kN/mm2
ADSS 2 1 4 12.5 136 1.5 4.6 7.6
ADSS 4 2 3 13.0 142 2.25 7.6 8.3
ADSS 8 3 2 13.3 148 3.0 10.35 9.45
ADSS 10 4 1 13.6 156 3.6 13.8 10.8
ADSS 12 5 0 13.8 159 4.5 14.3 11.8
ADSS 14 6 0 14.5 177 5.4 18.4 13.6
ADSS 16 4 1 14.9 185 6.75 22.0 16.4
ADSS 20 5 0 15.1 193 7.95 26.4 18.0
ADSS 24 6 0 15.5 201 9.0 32.2 19.1
ADSS 28 7 1 15.6 208 10.5 33.0 19.6
ADSS 32 8 0 16.3 226 12.75 40.0 21.0
ADSS 36 9 1 16.8 242 15.45 48.0 24.0
ADSS 42 10 0 17.2 253 16.2 51.0 25.1
ADSS 48 11 1 17.9 266 18.0 58.8 25.1


Optical Characteristic

G.652 G.655 50/125μm 62.5/125μm

Attenuation(+20ºC)		 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm


ADSS Fiber Optic Cable Details

ADSS Fiber Optic Cable Technology Specification
Ref.outer diameter
(mm)		 Ref.weight
kg/km Weight		 Ref.daily max.working tension
(kN)		 Max allowable working tension
(kN)		 Break strength
(kN)		 Strength member CSA
(mm2)		 Modulus of elasticity kN/
(mm2)		 Heat expansion coefficient ×10-6 /k
PE sheath
AT sheath
12.5 125 136 1.5 4 10 4.6 7.6 1.8
13 132 142 2.25 6 15 7.6 8.3 1.5
13.3 137 148 3.0 8 20 10.35 9.45 1.3
13.6 145 156 3.6 10 24 13.8 10.8 1.2
13.8 147 159 4.5 12 30 14.3 11.8 1.0
14.5 164 177 5.4 15 36 18.4 13.6 0.9
14.9 171 185 6.75 18 45 22 16.4 0.6
15.1 179 193 7.95 22 53 26.4 18 0.3
15.5 190 204 9.0 26 60 32.2 19.1 0.1
15.6 194 208 10.5 28 70 33 19.6 0.1
16.3 211 226 12.75 34 85 40 20.1 -0.4
16.8 226 242 15.45 41 103 48 24 -0.5
17.2 236 253 16.2 45 108 51 25.1 -0.8
17.9 249 266 18 50 120 58.8 26.1 -0.8

ADSS optic fiber cable Optical Characteristics: :
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A,B,C) B1.1:Conventional fiber
G.652D B2: Zero dispersion shifted
G.655 B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3) B4: Main technical data for positive
dispersion shifted single-mode fiber
