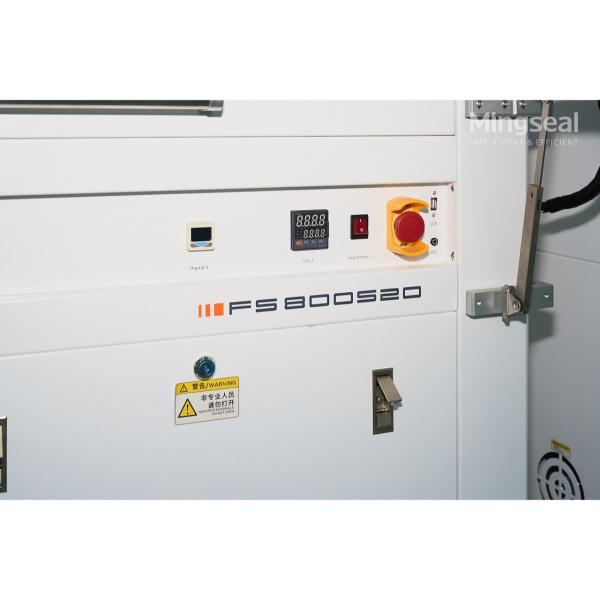

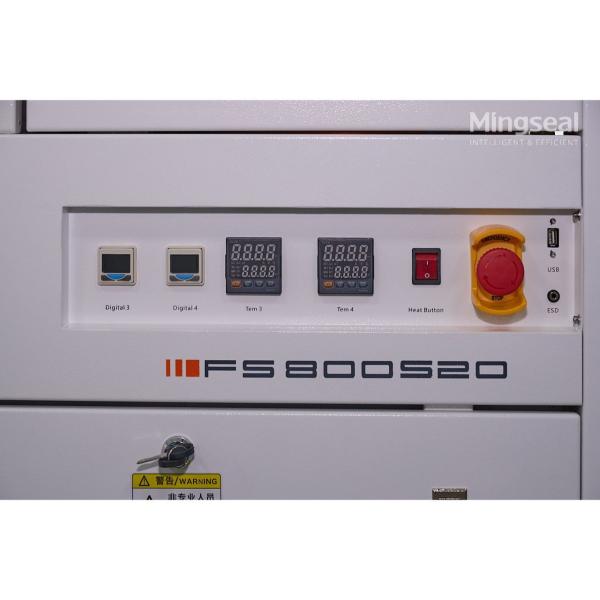

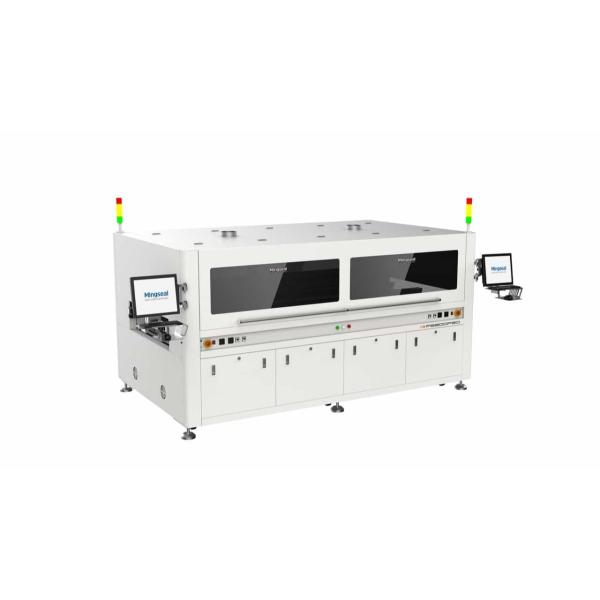

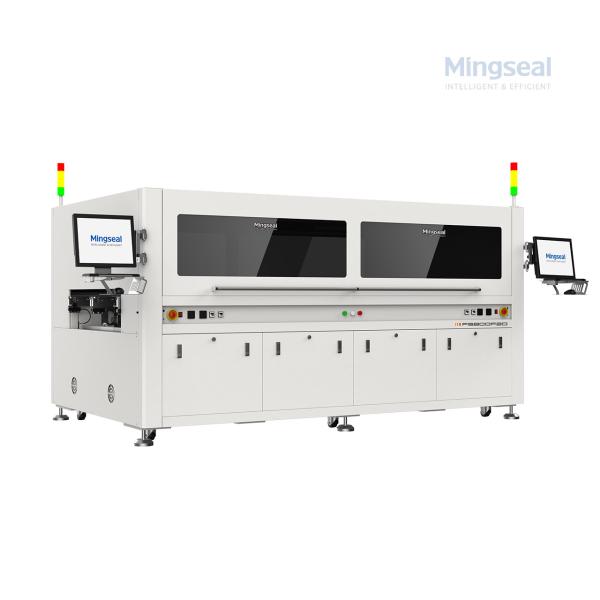

FS800S20 Floor-standing Large Stroke 2150*800mm Dispensing Equipment

Large-stroke cabinet-type dispensing machine FS800S20 is widely used in the new energy vehicle (NEV) electronics industry for high-precision adhesive applications on large and complex components. With full-travel dispensing capability and auto-adjustable conveyor rails, these systems support processes such as Battery module (NTC thermistor bonding, nickel strip sealing), FPC/FFC(solder joint insulation, connector encapsulation),etc. The machines ensure accurate control of glue volume, thickness, and coverage, critical for electrical insulation, thermal conductivity, and long-term reliability in EV battery modules and BMS assemblies. Their compatibility with dual-valve systems and inline automation makes them ideal for scalable, high-throughput production lines.

Core Advantages

• Large stroke: supports full stroke dispensing of products over 2.1m to meet PACK size requirements
• Track width adjustment: automatically adjusts the track to adapt to battery modules or FPC boards of different widths
• High-precision motion control: ensures consistency of dispensing trajectory and supports visual positioning
• Single and double valve compatibility: one machine can be used for multiple purposes to improve production flexibility and efficiency
• Batch line production: supports SMT or PACK line integration to improve production capacity

Main hardware configurations

• Spraying frame
• XYZ execution dispensing module (2x)
• Process calibration module (2x)
• Sound and light alarm device (2x)
• Track conveying device (1x)
• Visual positioning system (2x)
• Laser height measurement module (2x)
• Air pressure regulating device
• UPS uninterruptible power supply
• Weighing module (0.1mg)
• KPS2000 piezoelectric injection valve
• 250ml glue push device (optional)
• Automatic pressure regulating module-proportional valve (optional)
• Dual valve asynchronous module (optional)
• Dual valve synchronous module (optional)
• Tilt rotation module (optional)
• Circular rotation module (optional)

Technical parameters

FAQ

Q1: Can the equipment improve the efficiency?
We have another machine type FS800F20 with dual traks, which can improve the UPH.

Q2: Does the machine support dual valve synchronous or asynchronous function?
Yes, The machine have optional configuration of dual valves and can support this function.
