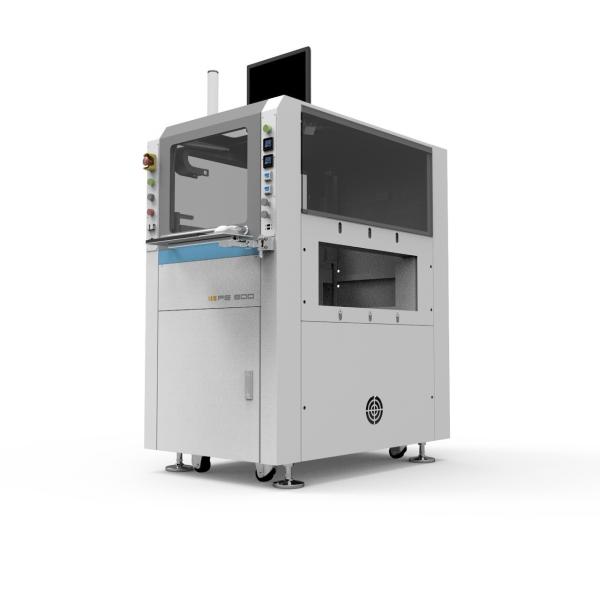

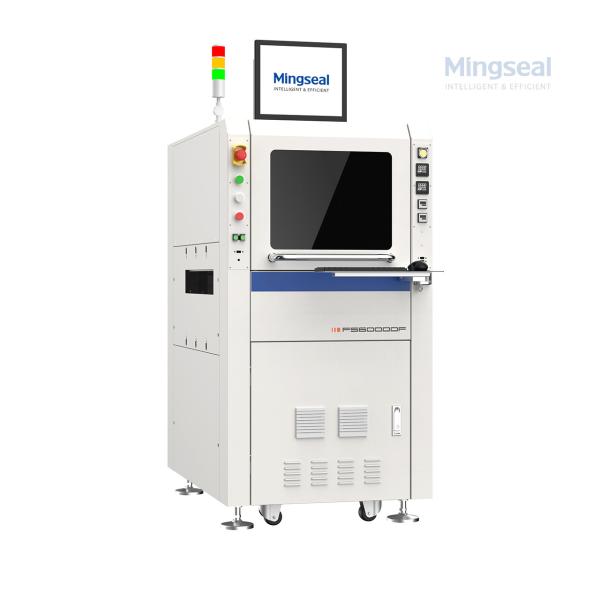

Automatic Inline Dual-Valve MiniLED/VCM Assembly Dispensing Machine

In the consumer electronics industry, the Voice Coil Motor (VCM) module is a critical component for smartphone camera autofocus and optical image stabilization. The precise assembly of VCM requires dispensing equipment with high stability, accuracy, and automation. This Mingseal Automatic Inline Dual-Valve Dispensing Machine delivers high-quality dispensing performance even in non-cleanroom environments, making it perfect for thermosetting glue, rotary component sealing, and module bonding in VCM manufacturing. It helps customers improve yield and throughput.

Competitive Advantages

• Dual-Valve Design for High Efficiency — Valves operate independently or with synchronized compensation, supporting multiple adhesive types and increasing throughput (UPH).
• Rotary Module for Precise Alignment — Enables 360° dispensing on circular VCM structures and complex parts, ensuring no dead zones.
• Track Conveyor with Automatic Width Adjustment — Clean roller-type single track for easy integration with SMT/VCM production lines; supports MES/SMEMA communication protocols.
• Optimized for Thermosetting Glue — Stable temperature control ensures consistent flow and filling quality for sealing and reinforcement of micro-motor components.
• Optional High-Precision Weighing — Real-time glue weight monitoring to prevent over- or under-dispensing, guaranteeing product quality.

Technical Specifications

Q&A

Q1: Can FS600 series handle different sizes of VCM boards?
A: Yes, it supports adjustable track widths from 35mm to 520mm, accommodating various shadow boards and VCM module sizes.

Q2: What is the function of the rotary module?
A: The rotary module allows precise 360° dispensing on circular VCM structures and complex components, ensuring consistent glue application without dead spots.

Q3: Is the weighing module mandatory?
A: The weighing module is optional but recommended for customers requiring extremely consistent glue volume control for heat-curable adhesives.

Q4: Does FS600 series support thermosetting glue dispensing processes?
A: Yes. The machine is optimized for thermosetting glue, featuring temperature-controlled valves and bottom heating to maintain stable glue flow and achieve strong bonding.
