Large-Format Inline Visual Dispensing Machine for SMT Industry

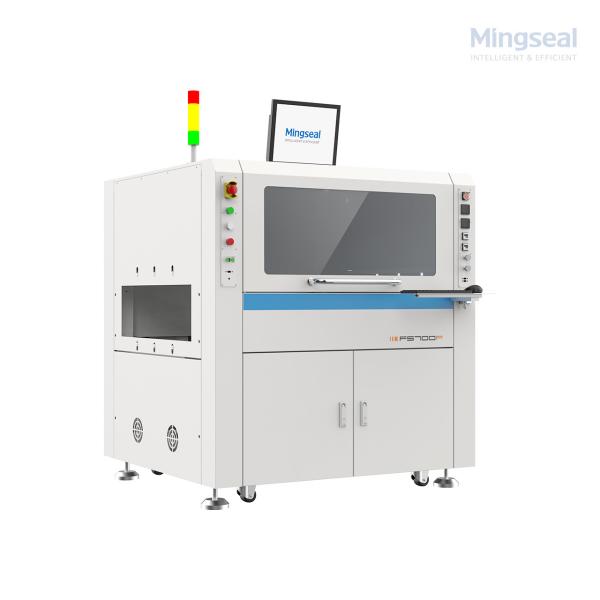

The FS700 Series Online Visual Dispensing Machine is Mingseal’s advanced inline dispensing solution specifically engineered for large-format PCB and FPC manufacturing in SMT production lines. Designed to meet the high-precision, high-capacity demands of modern electronics assembly, the FS700 Series supports travel lengths ranging from 500-1500mm, making it ideal for power battery FPC modules, MiniLED boards, and other oversized substrates.

Core Advantages

• Extra-Large Travel Range: Supports board transfer lengths from 500 mm up to 1.5 meters.
• Dual-Valve, Flexible Process: Enables two different materials or processes to run simultaneously or sequentially on the same panel.
• High Efficiency: Improves UPH (Units Per Hour) and reduces line changeover downtime.
• SMT-Ready Automation: Adapts to various panel sizes without manual setup.

Typical Applications

✔ Large-format FPC Component Encapsulation
✔ Dam & Fill Process for MiniLED modules
✔ SMT BGA underfill and flip-chip packaging
✔ Power battery module dispensing
✔ Protective coating and adhesive gluing for diverse PCB types

Technical Specifications

Q1: What makes the FS700 Series ideal for large boards?
A: Its extended conveyor supports board lengths up to 1.5 meters, with robust gantry stability and precision motion control, making it perfect for large-format FPCs and battery modules.

Q2: How does the dual-valve system improve productivity?
A: It allows two valves to dispense either simultaneously (synchronous) or in sequence (asynchronous), doubling efficiency for processes like Dam & Fill, underfill, or multiple glue types in one pass.

Q3: Can the machine switch quickly between models or panels?
A: Yes. The intelligent software enables fast recipe changeover, and the automatic track adjustment fits various panel sizes without manual recalibration.

Q4: Is it easy to integrate with existing SMT lines?
A: Absolutely. The FS700 Series complies with SMEMA standards, supports MES connectivity, and can be expanded inline for high-volume smart factory setups.

Conclusion

If you’re seeking a robust, flexible, large-format inline dispensing solution for SMT, FPC, MiniLED, or advanced consumer electronics, the FS700 Series delivers unmatched stability, precision, and scalability to meet today’s demanding high-volume production needs.
