Specifications
Brand Name :
Mingseal
Model Number :
FS800F15
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
$28000-$150000 / pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
5-60 Days
Packaging Details :
Wooden Case
Conveyor Belt Load :
10KG
Dimension :
2400*1800*1600
Single Valve Dispensing Range :
1700mm
Max. Height of Devices on Top of PCB :
25mm
Description

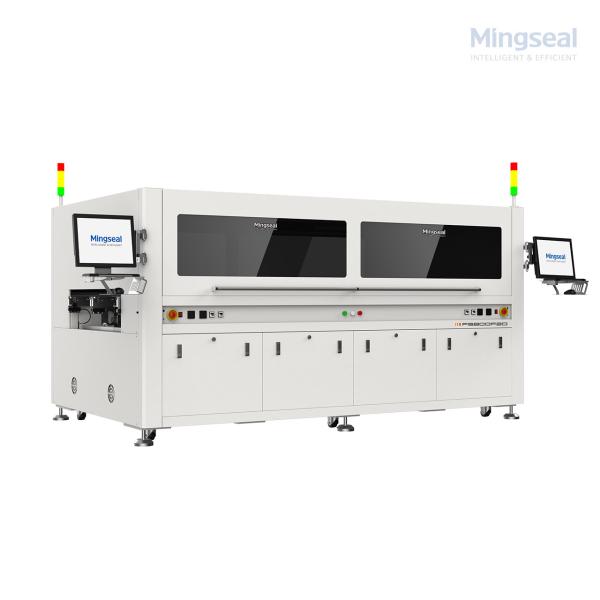

Fully-Automatic Dispensing Machine for New Energy FPC Manufacturing

The FS800 series Fully-Automatic Dispensing Machine is an advanced inline dispensing solution tailored for the fast-growing new energy vehicle (NEV) battery FPC-FFC circuit and battery signal acquisition module industry. It is purpose-built to handle precise bonding and protective coating processes for flexible circuits, signal sensors, connectors, nickel strips, and NTC thermistors used in smart battery management and temperature monitoring.

The FS800F15 is equipped with a single valve configuration offering a maximum dispensing range of 1700mm on a dual-track system, enabling efficient inline processing of large flexible boards or multiple smaller panels simultaneously. The machine is optimized for demanding applications that require high glue control accuracy — especially for NTC thermistors where adhesive quantity and flatness are critical for precise temperature reading, or FR4/Nickel Strip bonding, where uniform glue thickness, no air bubbles, and strong adhesion directly affect battery safety and signal integrity.


Key Advantages

  • Large Working Range: Single valve dispensing range up to 1700mm, perfect for oversized FPC/FFC panels.

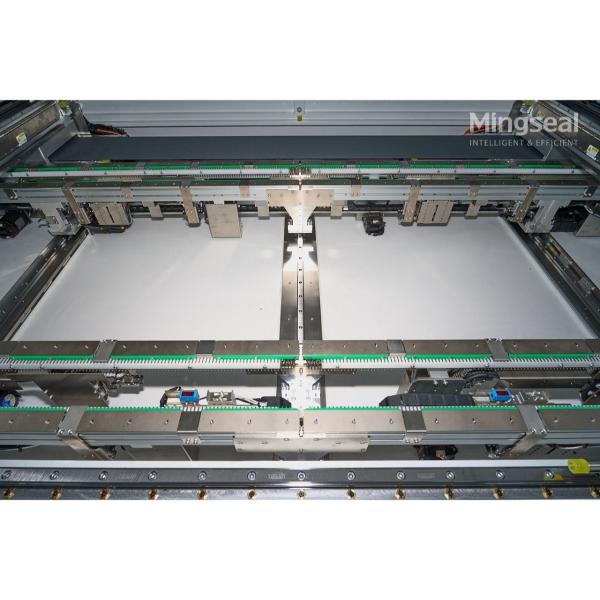

  • Dual Track System: Parallel tracks reduce panel changeover time and boost production efficiency.
  • Piezoceramic Valve Support: Provides non-contact high-frequency jetting for minimal glue waste and precise volume control.
  • Optimized for Critical Parts: Maintains accurate glue amounts for NTC thermistors and ensures flat bonding with FR4.
  • High-Quality Sealing: Guarantees bubble-free nickel strip bonding, stable adhesive thickness, and complete solder joint insulation.


Applications

✓ EV Battery FPC-FFC Flexible Circuit Bonding
✓ Battery Signal Collection Modules
✓ NTC Thermistor Temperature Sensing Points
✓ Nickel Strip Bonding & Insulation
✓ Connector & Terminal Potting/Sealing
✓ Solder Joint Protective Coating

Technical Specifications

FS800 Series Fully-Automatic Dispensing Machine

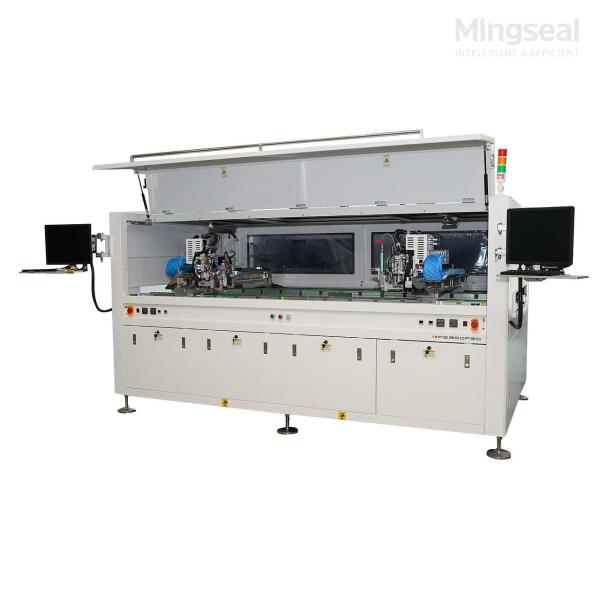

Structure

Floor-mounted gull-wing door type

Left- right XYZ dispensing actuation modules+Double track

Transmission Method X/Y axis X/Y: Linear motor +Raster Ruler
Z-axis: Servo motor+Screw module
Number of Axis Total 6 axis ( Dual XYZ actuation units)
Dimension ( W × D × H) 2400 × 1800 × 1600mm
Dispensing Range ( W × D) 1500 × 800mm
Max . speed X/Y/ Z axis XY: 1000mm/s Z: 500mm/s
Max . Acceleration XY: 1g Z: 0.5g
Repeatability ( 3sigma) XY: ±0.015mm Z: ±0.005mm
Positioning Accuracy (3sigma) XY: ±0.03mm Z: ±0.01mm
Track Width Adjustment Method Automatic width adjustment
( 1 fixed , 3 movable)

FAQ

Q1: Can the FS800 series ensure glue consistency for sensitive NTC thermistors?
A: Yes. The piezoelectronic jetting valve provides ultra-precise non-contact dispensing, ensuring accurate glue volumes and flatness for temperature detection reliability.

Q2: How does it handle nickel sheet bonding for battery modules?
A: The FS800 series achieves stable glue thickness with bubble-free bonding, ensuring safe and durable nickel sheet connections under high current.

Q3: Can it protect connectors and solder joints from oxidation?
A: Absolutely. The system provides uniform insulation coating, safeguarding solder points and terminals from moisture or short-circuits.

Q4: Is the machine suitable for high-volume inline production?
A: Yes. The large 1700mm range, dual track, and optional multi-panel support help automotive battery makers maximize throughput while maintaining process stability.
