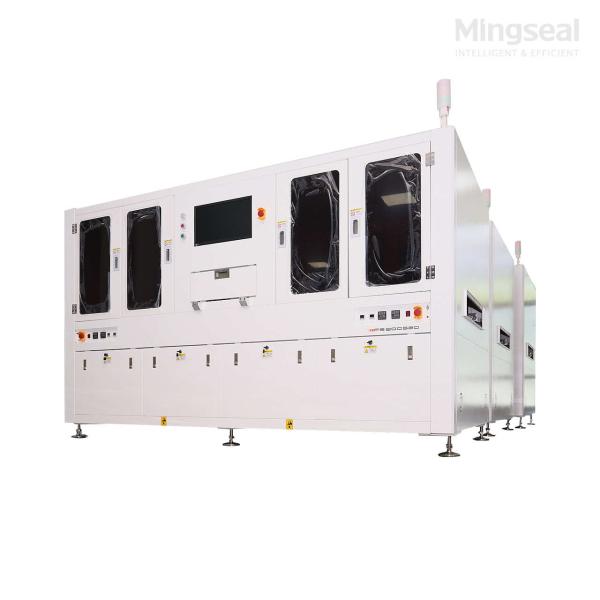

FS800S18 6-axis large dispensing cabinet equipment for Electric vehicle battery FPC

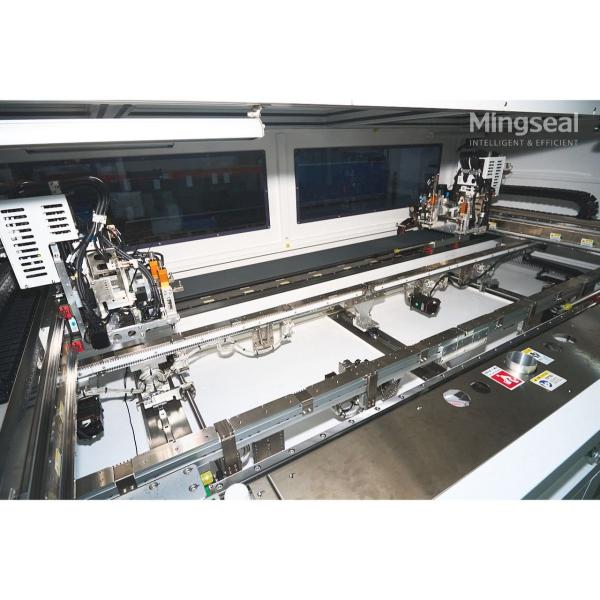

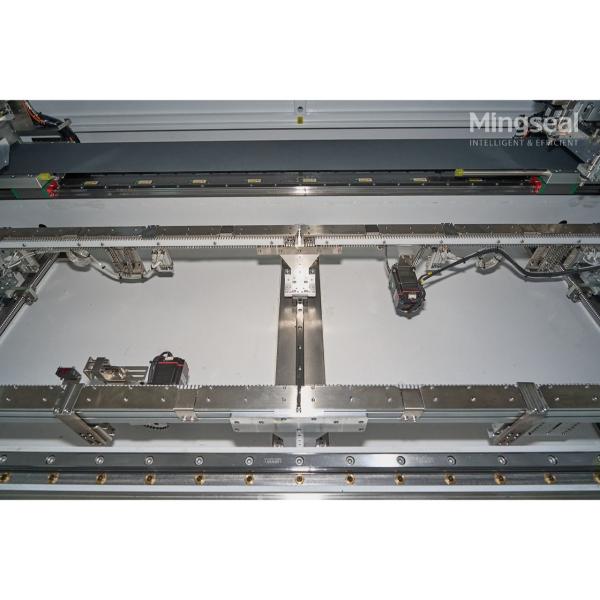

The FS800S18 is a high-precision, large-format cabinet-type dispensing machine engineered for demanding applications in the new energy vehicle (NEV) industry, particularly lithium battery FPC/FFC adhesive processes. With a full working range of 1850×800mm and a maximum dispensing stroke of 1700mm, the system supports high-throughput, full-travel operations. It features auto-width-adjustable rails, high motion accuracy, and compatibility with both single and dual-valve configurations, including piezo jet valves and screw valves. The FS800S18 ensures precise adhesive control for components such as thermistors, nickel strips, connectors, and terminals—meeting rigorous standards for insulation, bonding, and reliability in EV battery manufacturing.

Core Advantages

• Adapt to large-size workpieces: suitable for batch dispensing of oversized or multiple products
• Support single and double valve configuration: improve production capacity
• Can integrate a variety of dispensing valves (piezoelectric valves, screw valves, etc.)
• Easy to customize: can configure automatic loading and unloading, visual recognition and other functions

Main software functions

• FS800S18 standard dispensing operating system
• Fluid distribution system
• MES system
• Automatic weighing calibration function
• Visual calibration function
• Height calibration function
• Barcode and QR code recognition function
• Linefix function
• Program copy function
• Anti-mistake alarm

Technical parameters

FAQ

Q1: Can the equipment be integrated into a smart manufacturing or MES system?
Yes, it supports communication protocols (such as MES, SECS/GEM, etc.) for real-time data exchange and production traceability.

Q2: How is maintenance handled for such large-format dispensing systems?
The machine is designed with modular components and offers automatic nozzle cleaning and purging functions for ease of maintenance.
