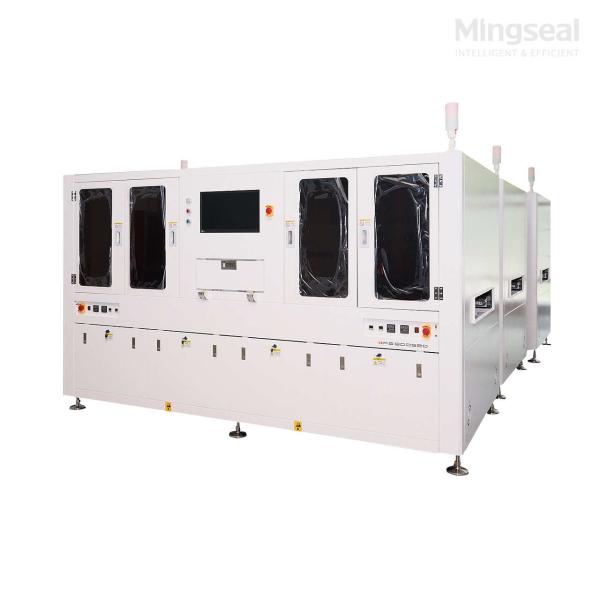

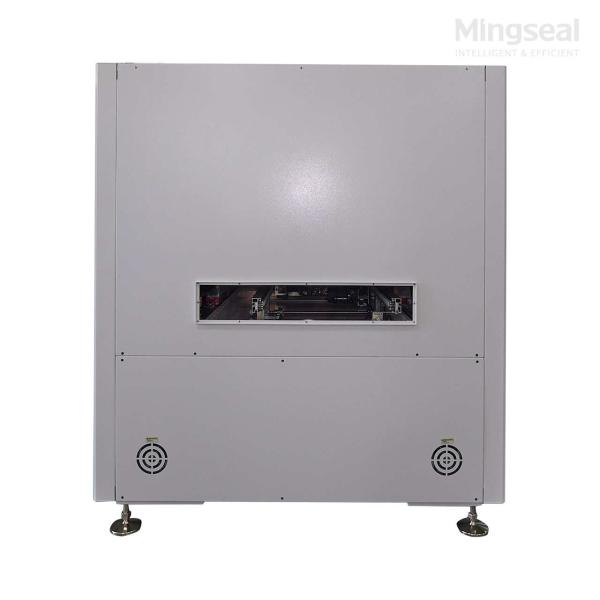

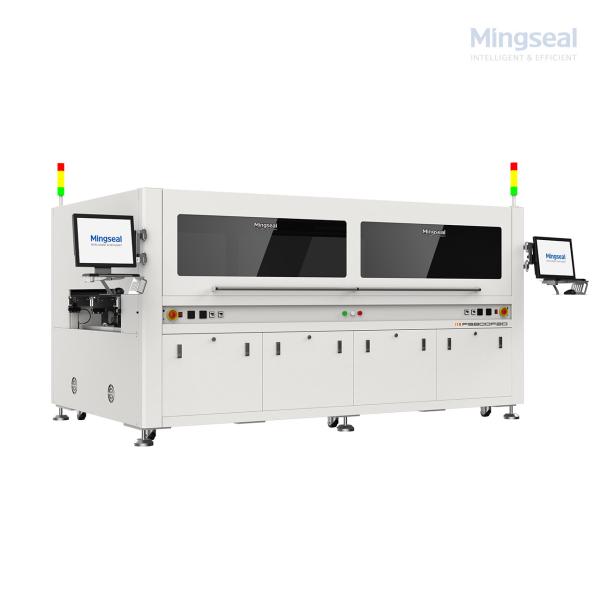

FS800S12 Cabinet type Large Stroke Dispensing Machine in New energy FPC industry

The FS800S12 is a high-speed, high-precision, and cost-effective inline dispensing system specifically developed for the new energy FPC industry. Designed in a floor-standing gull-wing layout, this large-format dispensing machine offers a generous working area of 1250×800mm, ideal for oversized or panelized FPC substrates. The track width can be automatically adjusted to accommodate different product sizes, enhancing production flexibility. Leveraging the advantages of cabinet-type long-stroke dispensing platforms, the FS800S12 supports high-volume, high-accuracy adhesive application with seamless automation. It’s well-suited for smart manufacturing environments demanding stable, scalable dispensing performance.

Core Advantages

• Achieve high-quality, high-speed and precise dispensing
• Convenient equipment architecture
• High compatibility:
  The track width is adjustable and can be connected, compatible with products of different sizes and specifications, and can be connected to multiple units.

Main appliaction

Automotive lithium battery FPC-FFC
New energy vehicles
Energy storage battery

Technical parameters

FAQ

Q1: What is the maximum dispensing area supported by the large-stroke cabinet-type machine?
The equipment FS800S12 supports up to 1250×800mm dispensing areas. If the customer has larger dispensing requirement, we also have other mahine types available.

Q2. Is the system compatible with dual-component adhesives such as thermal gel or potting materials?
Yes, the system can integrate dual-component valves for dispensing thermal interface materials, potting compounds, or sealants.

Q3. How does the equipment ensure precise dispensing over such a large area?

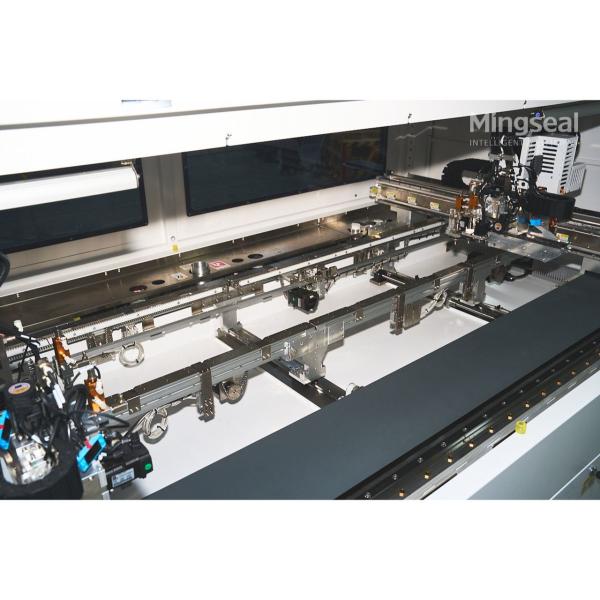

High-precision servo-driven gantry modules, closed-loop motion control, and optional vision alignment ensure consistent dispensing accuracy across the entire work area.
