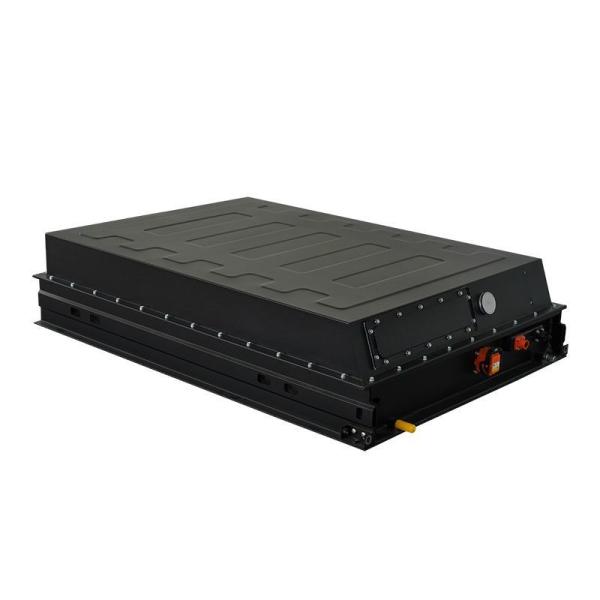

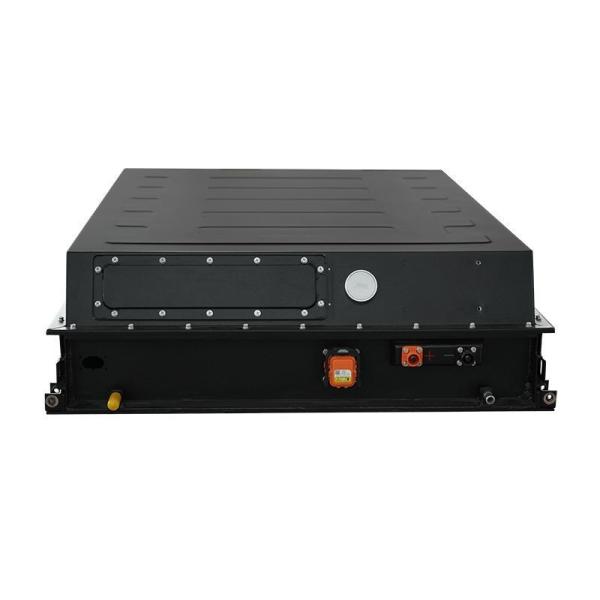

Liquid-cooling Battery Pack Gen 1
Liquid-cooling Battery Pack Gen 1
Liquid-cooling Battery Pack Gen 1
Liquid-cooling Battery Pack Gen 1
Liquid-cooling Battery Pack Gen 1
Liquid-cooling Battery Pack Gen 1
Liquid-cooling Battery Pack Gen 1
Liquid-cooling Battery Pack Gen 1
Specifications
Energy Efficiency :
≥ 94% @ 0.5P, room temperature
Standard modules :
flexible system expansion
Compact Design :
lightweight
Low internal resistance :
stable discharge
Description

Product Description

Energy storage block is the basic unit used in energy storage system and it can be stacked in series and parallel to assemble into various energy storage systems.

-Energy Efficiency ≥ 94% @ 0.5P, room temperature
-Standard modules, flexible system expansion

Technical Data of Liquid-cooling Battery pack Gen 1

Model LS280-1P48S LS280-1P52S Note
Cell Configuration 1P48S 1P52S
Nominal Voltage 153.6V 166.4V
Minimum Working Voltage 129.6V 140.4V T＞0℃@cell 2.7V
Maximum Working Voltage 175.2V 189.8V T＞0℃@cell 3.65V
Rated Energy 43.008kWh 46.592kWh 25±2℃, 0.5C
Weight 325±5kg 340±5kg
Dimensions 510*1050*251mm 810*1145*251mm WxDxH, ±2mm
Energy Density ＞132Wh/kg ＞137Wh/kg
Cell Capacity 280Ah 0.5C discharge current, ±2°C
Cycle Life 6000 25±2℃, 0.5C, SOC≥80%
Maximum Continuous Charging Current 140A/0.5C 20~35℃, SOC: 0~90%
Maximum Continuous Discharging Current 140A/0.5C 15~35℃, SOC: 10~100%
Self-discharge Rate ≤3%/month 25±2℃, 30% SOC，storage for 3 months
Operating Temperature Charge: 0~55℃ Discharge: -20~55℃ Charging below 0°C requires external heating
Insulation Grade Resistance≥500MΩ@1000VDC Battery pack main positive and negative terminals referenced to ground
Withstand Voltage Leakage Current ≤ 1mA@4500VDC
Battery Pack Casing Protection Rating IP67
Cooling Mode Liquid-cooling
Product State Of Charge At Shipment 30%±5%
