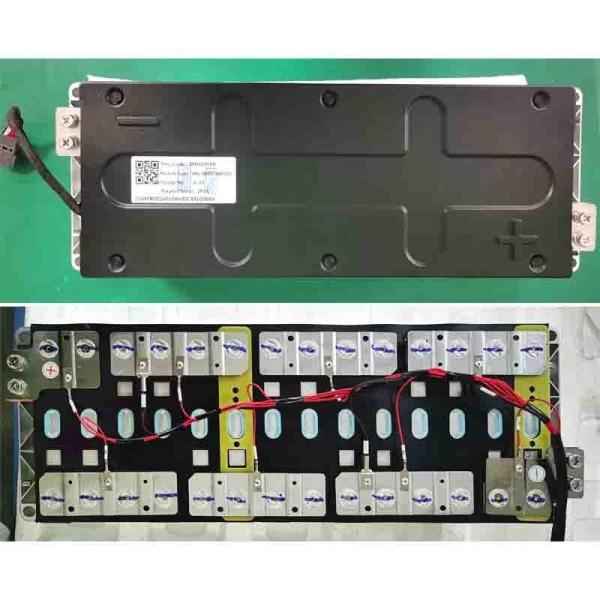

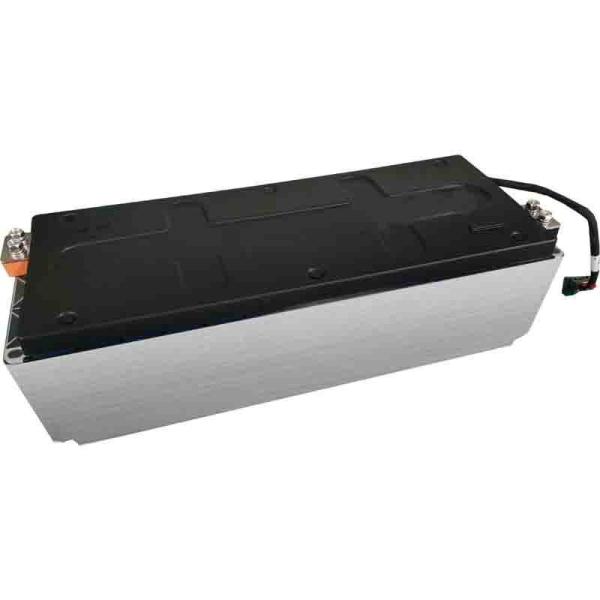

NCM58Ah 2P7S BATTERY Module
NCM58Ah 2P7S BATTERY Module
NCM58Ah 2P7S BATTERY Module
NCM58Ah 2P7S BATTERY Module
NCM58Ah 2P7S BATTERY Module
NCM58Ah 2P7S BATTERY Module
Specifications
Product Name :
NCM58Ah Standard Module
Composition :
2P7S NCM58Ah, data collecting unit of BMS and fixed fittings
Capacity :
58Ah
Voltage :
25.69V
Expandability :
1,1
Description

Product Description


No.

Items

STANDARD MODULE

Note

NCM 58Ah2P7S

1

Nominal voltage(V)

25.69

2

Operating voltage(V)

min

19.25

3

max

30.45

4

Nominal capacity(Ah)

116

25°C

5

Nominal energy(KWh )

2.980

25°C

7

Group mode

2P7S

8

End of life residual capacity (Ah)

81.6

9

Module weight(kg)

14.5

10

Maximum continuous charge current(A)

92.8

11

Maximum continuous discharge current(A)

116

12

Maximum pulse discharge current(≤10s)(A)

232

13

SOC operating range(%)

5-97

14

Insulation requirements(MΩ)

500

DC500V,5S,15°C-35°C,≤70%%RH

15

Module cooling method

Natural cooling

16

Module heating method

NO

17

Shipping capacity (SOC)

≈30%

SOC is consistency in the same batch

18

Dimension L (mm)

424.5

Dimension W (mm)

154.6

Dimension H (mm)

114

NCM58AH 2P7S BATTERY Module Dimensions


DRAWING INTERFACE TYPE


01 02

Carton for air transportation and Meeting the UN38.3 package
plywood case for sea transportation standard for dangerous goods
