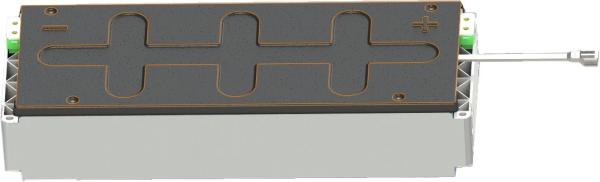

NCM113AH 2P8S MEB Module
NCM113AH 2P8S MEB Module
Specifications
product_name :
NCM113Ah Standard Module
battery_type :
Standard Module
cell_configuration :
2P8S NCM113Ah
capacity :
113Ah
voltage :
29.36V
features :
Data collecting unit of BMS,Fixed fittings
expansion_options :
Expand voltage,Expand capacity
Description

Product Description


No.

Items

STANDARD MODULE

Note

NCM113Ah 2P8S

1

Nominal voltage(V)

29.36

1C

2

Operating voltage(V)

min

22.4

T＞0℃

3

max

34.8

4

Nominal capacity(Ah)

227

25℃,1C,100%DOD

5

Nominal energy(KWh )

6.64

25℃,1C,100%DOD

7

Group mode

2P8S

8

Module weight(kg)

31.4

9

Maximum continuous charge current(A)

227

1C 10℃-45℃

10

Maximum continuous discharge current(A)

227

11

Working temperature

-20~55°C

Charging temperature

-30~55°C

Discharging temperature

12

SOC operating range(%)

0%~95%

0~20000 km

0%~95%

2~40000 km

3%~95%

＞40000 km

13

DCR

≤5mΩ

@25℃,300A (Discharging),10s,70%SOC,BOL

≤5mΩ

@25℃,300A (Charging),10s,70%SOC,BOL

14

Module cooling method

Natural cooling

15

Module heating method

NO

16

Shipping capacity (SOC)

≈30%

SOC is consistency in the same batch

17

Dimension L (mm)

590

Dimension W (mm)

225.5

Dimension H (mm)

110

NCM113AH 2P8S MEB 590 Module Dimensions


DRAWING INTERFACE TYPE


01 02

Carton for air transportation and Meeting the UN38.3 package
plywood case for sea transportation standard for dangerous goods
