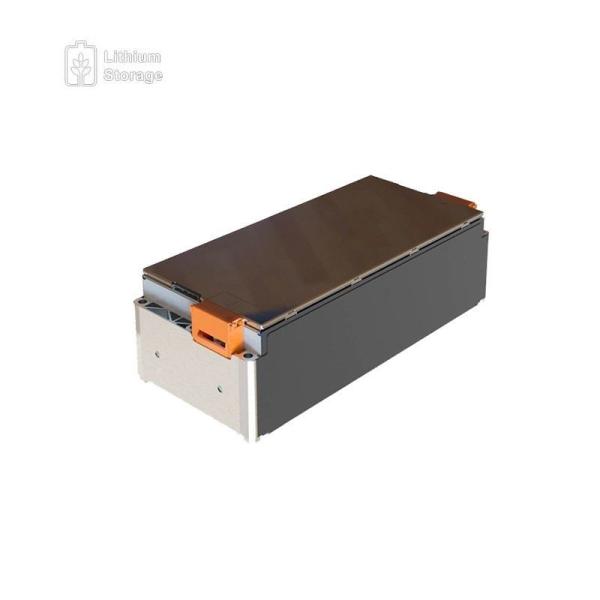

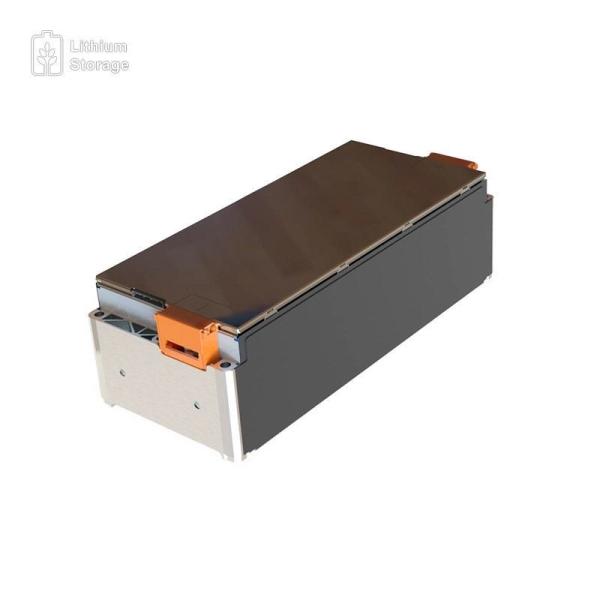

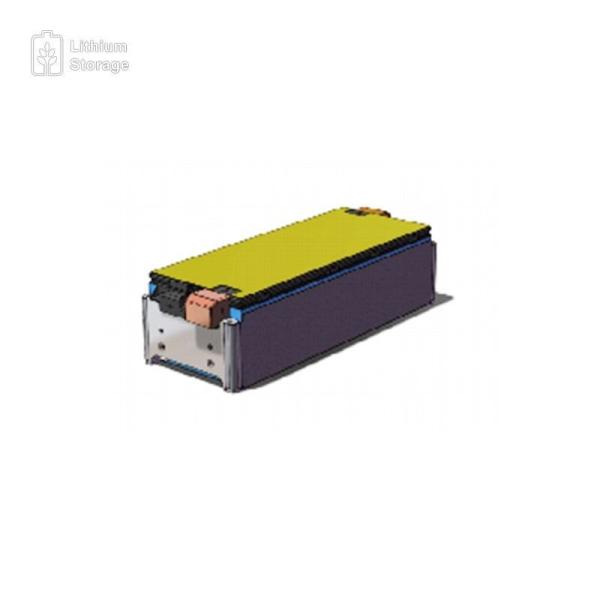

NCM177Ah 1P4S - VDA 355 Module
NCM177Ah 1P4S - VDA 355 Module
NCM177Ah 1P4S - VDA 355 Module
NCM177Ah 1P4S - VDA 355 Module
NCM177Ah 1P4S - VDA 355 Module
NCM177Ah 1P4S - VDA 355 Module
NCM177Ah 1P4S - VDA 355 Module
NCM177Ah 1P4S - VDA 355 Module
NCM177Ah 1P4S - VDA 355 Module
NCM177Ah 1P4S - VDA 355 Module
Specifications
product_name :
NCM177Ah Standard Module
module_type :
Standard Module
module_capacity :
177Ah
module_voltage :
12.8V
module_composition :
1P4S NCM79148102-177Ah
additional_components :
data collecting unit of BMS,fixed fittings
expandable_features :
expand voltage by connecting in series,expand capacity by connecting in parallel
Description

Product Description

LITHIUM STORAGE supports offering standard battery

modules and customization of battery modules based

on LFP/NCM prismatic cells, including the structure

of the banding module and frame welding module.
The high structural strength of the frame welding

module meet harsh vehicle operating conditions,

and the high flexibility of the banding module

meets a wide range of dimension requirement.

No. Items STANDARD MODULE Note
NCM177Ah 1P4S-12.8V177Ah
1 Nominal voltage(V) 14.64
2 Operating voltage(V) min 11.2 T: 25±3℃
3 max 17.4 T: 25±3℃
4 Nominal capacity(Ah) 177 1/3C，100%DOD
5 Nominal energy（KWh ） 2.591 1/3C，100%DOD
7 Group mode 1P4S
8 Module weight（kg） 11.9
9 Maximum continuous charge current（A） 211.3
10 Maximum continuous discharge current（A） 348
11 Maximum pulse charge current（A） 310 @10S，SOC≤70%
12 Maximum pulse discharge current（A） 465 @10S，SOC≥30%
14 SOC operating range（%） 10~90
15 Module cooling method Natural cooling
16 Module heating method No Or heating film
17 Temperature detector qty. 2
18 Shipping capacity (SOC) 50%±5 SOC is consistency in the same batch
19 Temp. Condition（℃） Charge -20~55
Discharge -30~55
Storage -30~55

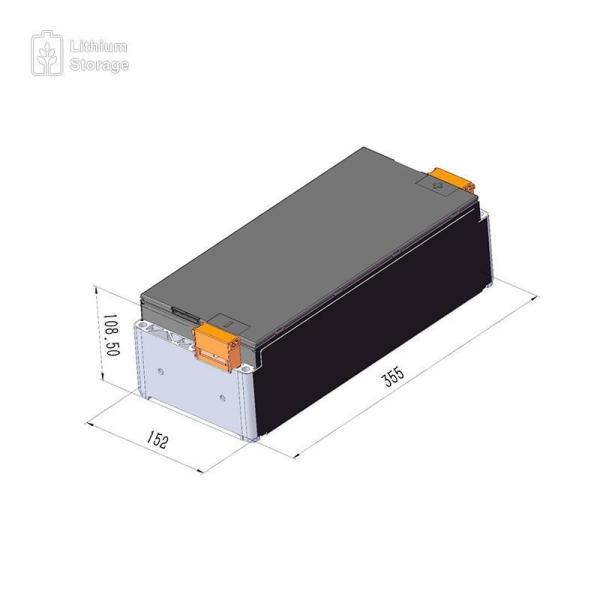

20 Dimension L （mm） 355
21 Dimension W（mm） 152
22 Dimension H（mm） 108.5
23 Relevant product standard

GB/T 31484—2015

GB/T 31485—2015

GB/T 31486—2015

01 02

Carton for air transportation and Meeting the UN38.3 package
plywood case for sea transportation standard for dangerous goods

Lithium Storage Co.,Ltd

Add.: No.9 East Mozhou Road, Jiangning District, 211111, Nanjing City, China

Tel. : +86 025 8773 9887

E-mail: admin@lithiumstoragebattery.com

Your professional lithium battery power solution provider.
