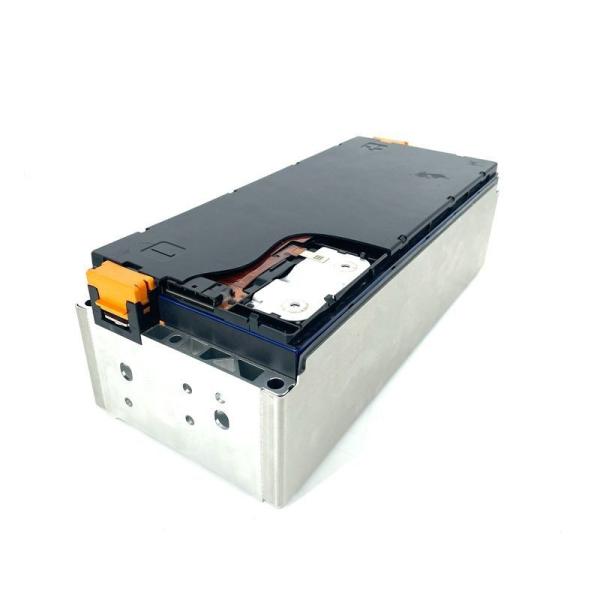

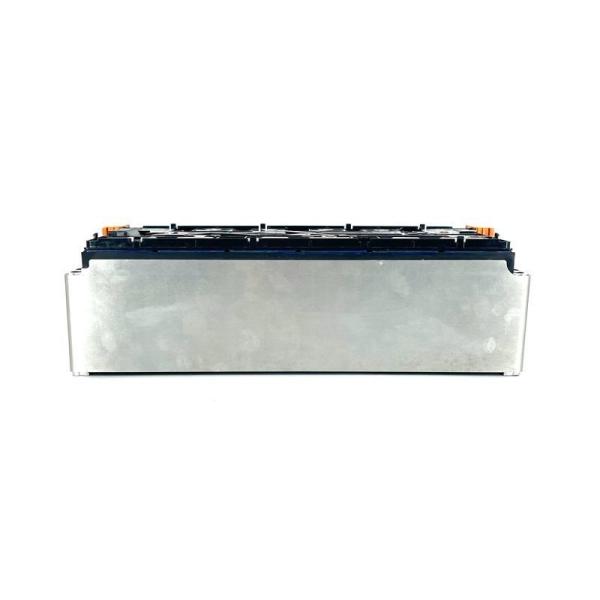

NCM114Ah 1P6S VDA Module
NCM114Ah 1P6S VDA Module
NCM114Ah 1P6S VDA Module
NCM114Ah 1P6S VDA Module
NCM114Ah 1P6S VDA Module
NCM114Ah 1P6S VDA Module
Specifications
product_name :
NCM114Ah Standard Module
module_type :
355 module
battery_type :
NCM114Ah
module_configuration :
1P6S
capacity :
114Ah
voltage :
22.44V
features :
Data collecting unit of BMS,Fixed fittings,Can be connected in series to expand voltage,Can be connected in parallel to expand capacity
Description

Product Description


No.

Items

STANDARD MODULE

Note

NCM 114AH1P6S

1

Nominal voltage(V)

22.44

@1/3C,22.08@1C

2

Operating voltage(V)

min

16.8

3

max

26.4

4

Nominal capacity(Ah)

114

@1/3C,25°C,100%DOD

5

Nominal energy(KWh )

2.558

@1/3C,25°C,100%DOD

7

Group mode

1P6S

8

End of life residual capacity (Ah)

91.2

@1/3C,25°C,100%DOD

9

Module weight(kg)

12.1±0.3

10

Maximum continuous charge current(A)

114

11

Maximum continuous discharge current(A)

114

12

Maximum pulse discharge current(≤10s)(A)

342

13

SOC operating range(%)

0-97

14

Insulation requirements(MΩ)

≥500

15

Module cooling method

Natural cooling

16

Module heating method

NO

17

Shipping capacity (SOC)

30%

SOC is consistency in the same batch

18

Dimension L (mm)

355

Dimension W (mm)

151.5

Dimension H (mm)

108.5

NCM114AH 1P6S VDA Module Dimensions


DRAWING INTERFACE TYPE



01 02

Carton for air transportation and Meeting the UN38.3 package
plywood case for sea transportation standard for dangerous goods


Lithium Storage Co.,Ltd

Add.: No.9 East Mozhou Road, Jiangning District, 211111, Nanjing City, China

Tel. : +86 025 8773 9887

E-mail: admin@lithiumstoragebattery.com

Your professional lithium battery power solution provider.
