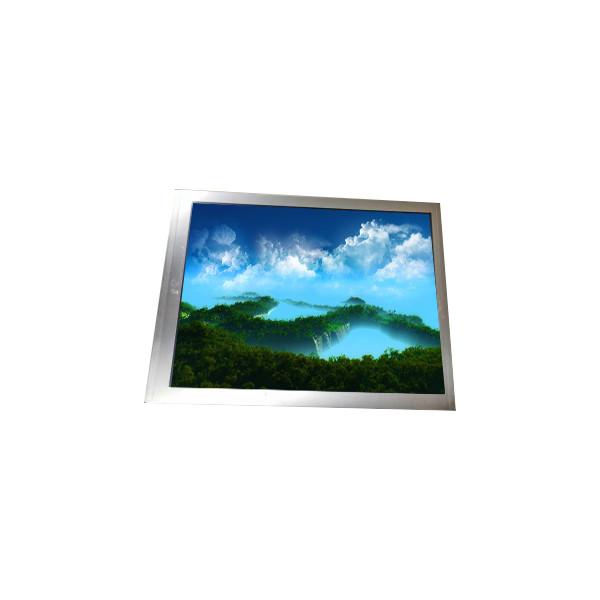

TL070VFGP02-00 7.0 inch LCD Screen Display Panel
TL070VFGP02-00 7.0 inch LCD Screen Display Panel
Specifications
Brand Name :
TIANMA
Model Number :
TL070VFGP02-00
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
TL070VFGP02-00
Diagonal Size :
7.0"
Panel Type :
a-Si TFT-LCD, CELL , FOG
Resolution :
1080(RGB)×1920, FHD 315PPI
Pixel Format :
RGB Vertical Stripe
Active Area :
86.832(W)×154.368(H) mm
Outline Size :
88.83 × 158.82 × 0.48 (H×V×D)
Brightness :
0 cd/m²
Contrast Ratio :
1000 : 1 (Typ.) (TM)
Application :
Pad & Tablet
Description

TL070VFGP02-00 7.0 inch LCD Screen Display Panel

TL070VFGP02-00 LCD Panel Product details :

Brand TIANMA
Model P/N TL070VFGP02-00
Diagonal Size 7.0"
Panel Type a-Si TFT-LCD, CELL , FOG
Resolution 1080(RGB)×1920, FHD 315PPI
Pixel Format RGB Vertical Stripe
Active Area 86.832(W)×154.368(H) mm
Bezel Opening -
Outline Size 88.83 × 158.82 × 0.48 (H×V×D)
Surface Hard coating
Brightness 0 cd/m²
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Min.)(CR≥10)
Display Mode SFT, Normally Black, Transmissive
Glass Thickness 0.15+0.15 mm
Transmissivity -
Best View on Symmetry
Response Time 30 (Max.)(Tr+Td) ms
Display Colors 16.7M
Lamp Type No B/L
Frequency 60Hz
Touch Screen In-Cell Touch, I²C
Mass TBD
Application Pad & Tablet
Signal Interface MIPI (4 data lanes) , 40 pins Connector
Input Voltage 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN)
Environment Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

TL070VFGP02-00 LCD Display - Extremely Important Information:

Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.

Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.

100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.

For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.

TL070VFGP02-00 LCD Panel Shipping and Package :

TL070VFGP02-00 7.0 inch LCD Screen Display Panel

TL070VFGP02-00 LCD Display SHIPPING :

We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .

The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )

Each order will be attached a tracking number and we will send to you.


TL070VFGP02-00 LCD Display Warranty:

Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.

Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.

However, it is imperative to ensure that the returned product is unused and free from any man-made damages.

Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.

Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.

TL070VFGP02-00 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of TL070VFGP02-00  ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of TL070VFGP02-00  via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods TL070VFGP02-00  ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT..

Q: Do you accept sample orders of TL070VFGP02-00  ?

A: Of course!sample order is welcome !
