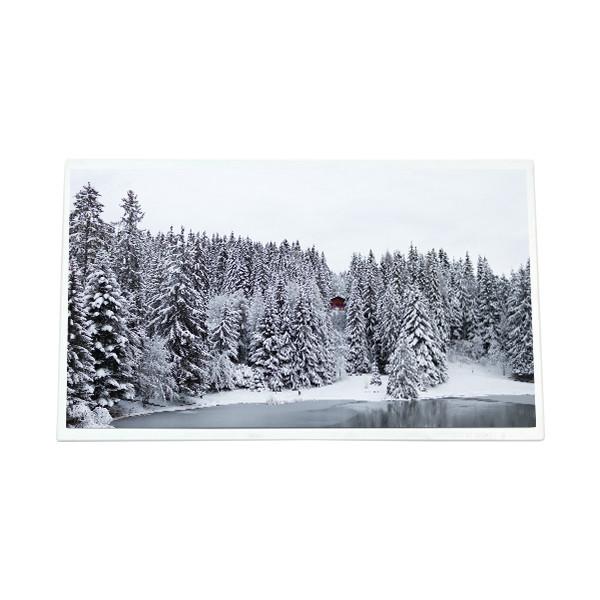

Hot Sell 12.0 inch C120HAT01.3 1920*860 1035 cd/m2 LCD screen
Hot Sell 12.0 inch C120HAT01.3 1920*860 1035 cd/m2 LCD screen
Specifications
Brand Name :
AUO
Model Number :
C120HAT01.3
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Unit/Units per Month
Delivery Time :
7 Days
Packaging Details :
Original packaging/conventional packaging box
Model Name :
C120HAT01.3
Diagonal Size :
12.0"
Panel Type :
LTPS TFT-LCD, LCM
Resolution :
1920(RGB)×860 175PPI
Pixel Format :
RGB Vertical Stripe
Active Area :
278.208(W)×124.614(H) mm
Frequency :
Outdoor High Brightness、Automotive Display
Interface Type :
60Hz
Description

Hot Sell 12.0 inch C120HAT01.3 1920*860 1035 cd/m2 LCD screen

C120HAT01.3 LCD Panel Product details :

Brand AUO
Model P/N C120HAT01.3
Diagonal Size 12.0"
Panel Type LTPS TFT-LCD, LCM
Resolution 1920(RGB)×860 175PPI
Pixel Format RGB Vertical Stripe
Active Area 278.208(W)×124.614(H) mm
Bezel Opening -
Outline(mm) 307.118 × 147.556× 12.5 (H×V×D)
Treatment Antireflection
Luminance 1035 cd/m² (Min.)
Contrast Ratio 1400 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Response 22 (Max.)(Tr+Td) ms
Good View at Symmetry
Work Mode AHVA, Normally Black, Transmissive
Color Depth 16.7M 91%DCI-P3
Backlight WLED, 10K hours, No Driver
Mass 535±54g
Used for Outdoor High Brightness,Automotive Display
Refresh Rate 60Hz
Touchscreen PCAP
Signal Type LVDS (2 ch, 8-bit), 60 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)
Hot Sell 12.0 inch C120HAT01.3 1920*860 1035 cd/m2 LCD screen
C120HAT01.3 LCD Panel Payment Instructions :
Accepted Payment Methods:
We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.
Payment Timeline:
To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

C120HAT01.3 LCD Panel Shipping and Package :

Hot Sell 12.0 inch C120HAT01.3 1920*860 1035 cd/m2 LCD screen

C120HAT01.3 LCD Panel Shipment Information :
Shipping Address:
We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.
Estimated Delivery Time:
Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.
Delayed Shipments:
If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.
Dispute Policy:
Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.
Customs Duty and Import Tax:
We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.
Important Instructions for Receiving and Handling Your C120HAT01.3 LCD Panel :
Inspecting the Package Upon Arrival:
When you receive the package, carefully inspect its condition.
If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.
Reporting Damaged Goods:
If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.
Send these visuals to us to document the issue.
Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.
Testing Before Installation:
After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.
Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.
Product Authenticity and Labels:
Each product from our store includes a unique anti-tear label.
Do not remove this label, as it verifies the product's authenticity and origin from our store.
Documenting Product Issues:
If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.
Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

C120HAT01.3 LCD Panel FAQ :

Q: What happen if the lcd panel C120HAT01.3 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.
