Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.3-inch high-definition IPS LCD
Resolution :
240X240
Interface type :
4-IPS, 8-bit 8080 MCU
Control chip :
ST7789V
Display color :
Full color
Display area :
23.4X23.4 (mm)
Panel dimensions :
39.22 X 27.28 X 2.7 (mm)
Pixel pitch :
0.0975 x 0.0975 (mm)
Working current :
20 (mA)
Operating voltage :
3.3V
Pin count :
18 pins (2.54mm pitch double row pins, default not soldered)
Viewpoint direction :
Full perspective
Backlight type :
2 White LED Parallel
Working temperature :
-20 to 70 degrees Celsius
Description

Display screen size

1.3-inch IPS high-definition parallel port with 240x240 resolution ST7789 square TFT liquid crystal screen,segment lcd display,segment lcd

Module Interface Definition

Serial number symbol explanation
1 DC In the parallel port mode, it serves as the data and command control pins; in the SPI mode, it acts as the SPI clock line.
2 CS The chip select is effective when the level is low.
3 RD And read aloud
4 SDC When using the parallel interface, it is written as the parallel interface; when using SPI communication, it is written as the SPI DC pin.
5 D0 Parallel port data D0
6 SDA SPI communication data line
7 D2 Parallel port data D2
8 D1 Parallel port data D1
9 D4 Parallel port data D4
10 D3 Parallel port data D3
11 RES Reset - Low level active
12 D5 Parallel port data D5
13 D7 Parallel port data D7
14 D6 Parallel port data D6
15 BLK Backlight, by default, can be left unconnected. Low level - turn off the backlight.
16 TE Used for synchronization, it is generally not necessary in most cases.
17 VCC Power supply: 3.3V
18 GND Power ground terminal

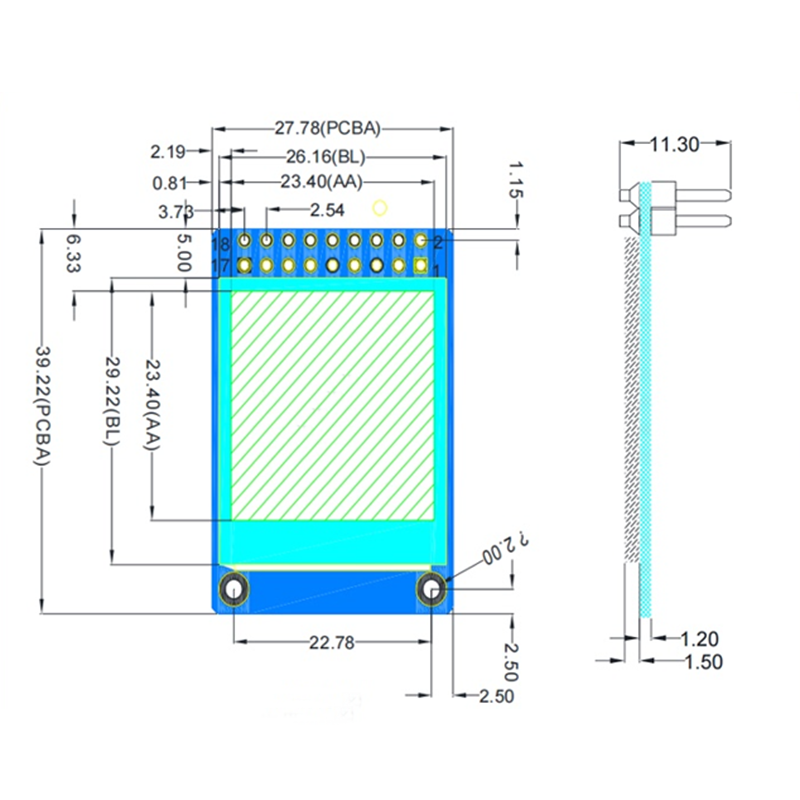

Structural drawing

1.3-inch IPS high-definition parallel port with 240x240 resolution ST7789 square TFT liquid crystal screen,segment lcd display,segment lcd

Display screen wiring diagram

1.3-inch IPS high-definition parallel port with 240x240 resolution ST7789 square TFT liquid crystal screen,segment lcd display,segment lcd
