Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.9 inches
Material :
IPS LCD
Resolution :
170 (RGB) x 320. The display orientation can be adjusted; it can be either horizontal or vertical
Control chip :
ST7789V3
Display area :
22.695 (width) * 42.72 (height)
Overall dimensions :
29(W) * 62.00(H) * 2.7(T)
Interface type :
4-SPI interface
Backlight type :
LEDX4
Voltage :
3.3V
Working temperature :
-20 to 70 degrees
Viewing angle :
Full perspective
Pin count :
8 pins (single row pin with 2.54mm spacing)
Description

1.9-inch TFT display screen size

1.9-inch resolution of 170x320, st7789-driven LCD high-definition IPS display screen,segment lcd display,segment lcd

1.9-inch module interface definition

Pin number Pin name Function Description
1 GND Power ground terminal
2 VCC Main power supply terminal for the display screen
3 SCL 4 SPI serial clock pins
4 SDA 4 SPI serial data input pins
5 RES Display screen reset
6 DC LCD data/command selection
7 CS Display screen chip select signal
8 BLK Backlight control switch: By default, the backlight is turned on; a low level will turn off the backlight

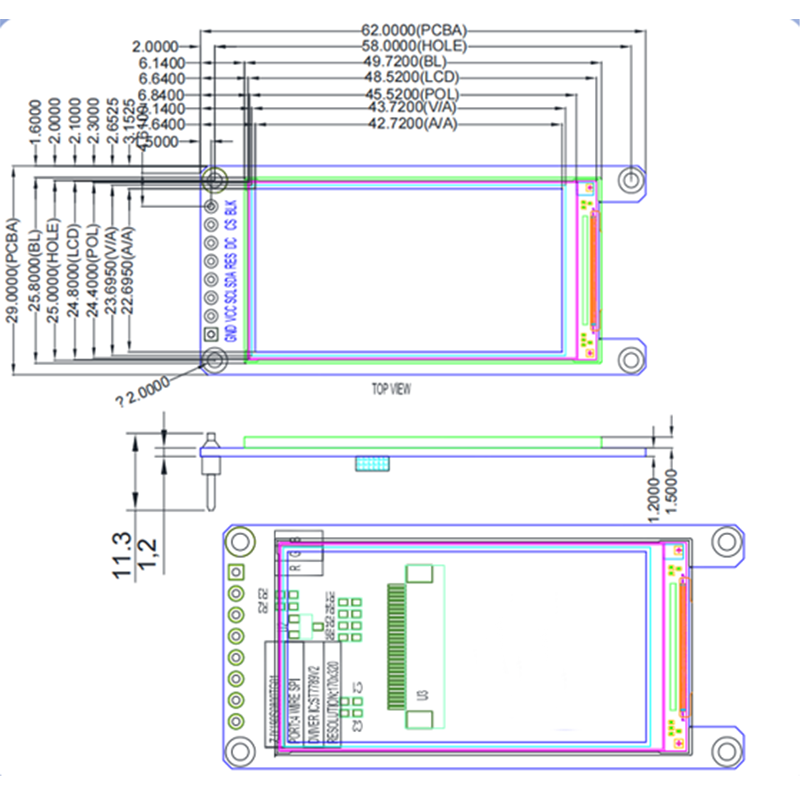

1.9-inch TFT display panel structure drawing

1.9-inch resolution of 170x320, st7789-driven LCD high-definition IPS display screen,segment lcd display,segment lcd

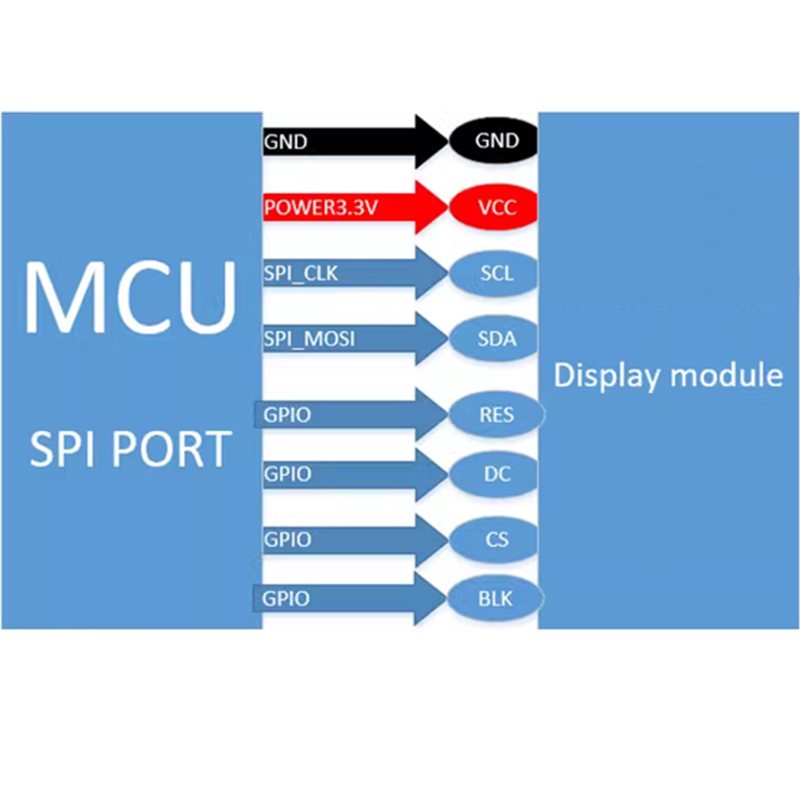

1.9-inch TFT display wiring diagram

1.9-inch resolution of 170x320, st7789-driven LCD high-definition IPS display screen,segment lcd display,segment lcd
