2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
2.8 inches, color TFT LCD
Resolution :
240X320
Interface type :
4-wire SPI
Control chip :
ILI9341, ST7789 (either chip can be selected as needed)
Product highlights :
The display direction can be adjusted
Touch chip :
XPT2046
Display area :
43.20X57.60 (mm)
Module size :
51X81.2X3.8X(T) (mm)
Backlight :
4 X LED
Voltage :
2.8V~3.3V
Current :
60ma
Power consumption :
0.22W
Pin count :
11 pins (2.54mm spacing single row pins)
Viewing angle direction :
12 o'clock direction
Operating temperature :
-20~70℃
Description

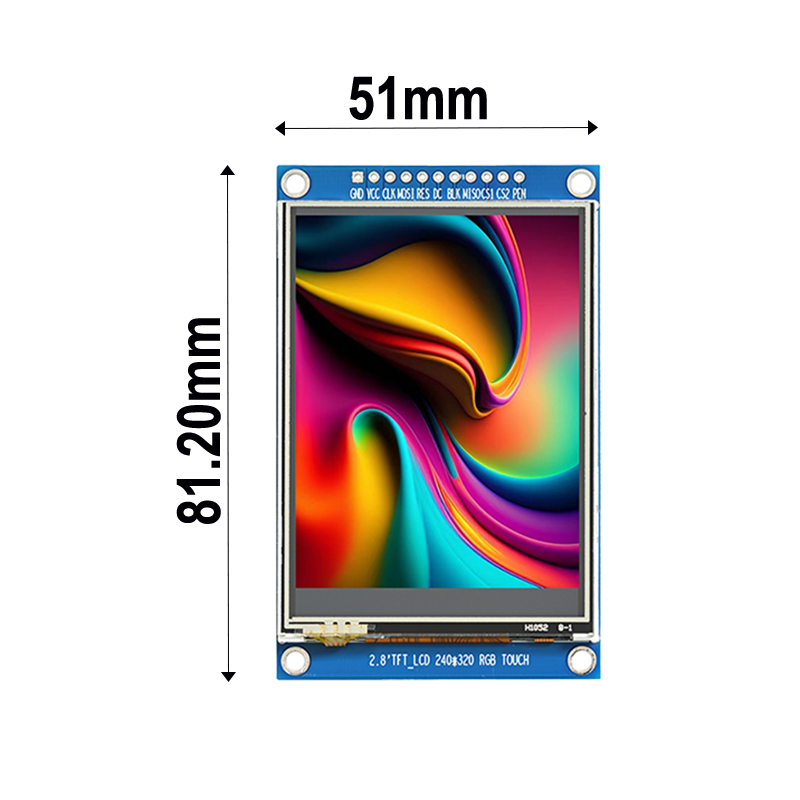

2.8-inch color TFT module size

2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version

Interface definition of the 2.8-inch color TFT module

Pin number Pin name Function description
1 GND Power ground pin
2 VCC Power positive 3.3V
3 CLK SPI clock line
4 MOSI SPI data line output
5 RES LCD reset
6 DC LCD data line/command selection pin
7 BLK Backlight control switch, default to turn on backlight, low level to turn off backlight
8 MISO Touch data input
9 CS1 Display chip select signal
10 CS2 Touch chip select
11 PEN Touch signal interrupt

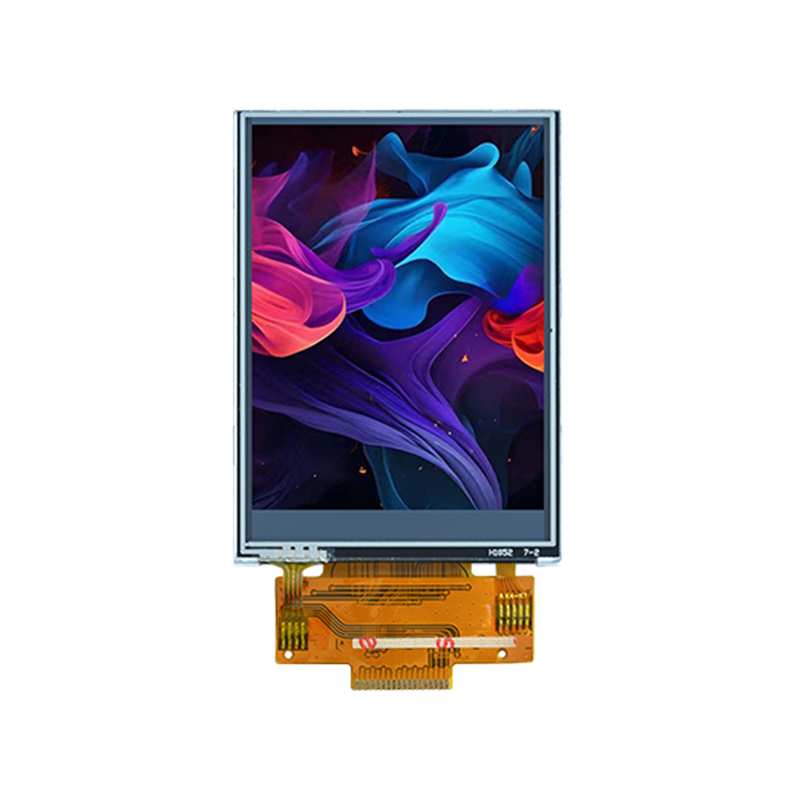

The screen corresponding to the 2.8-inch TFT module

2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version

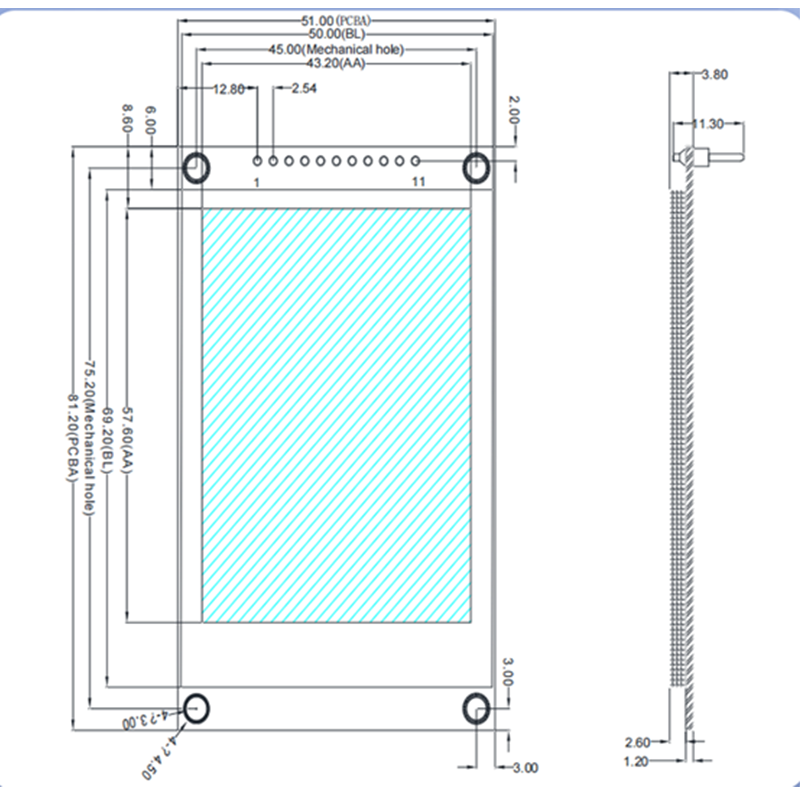

2.8-inch TFT module's structural drawing

2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version

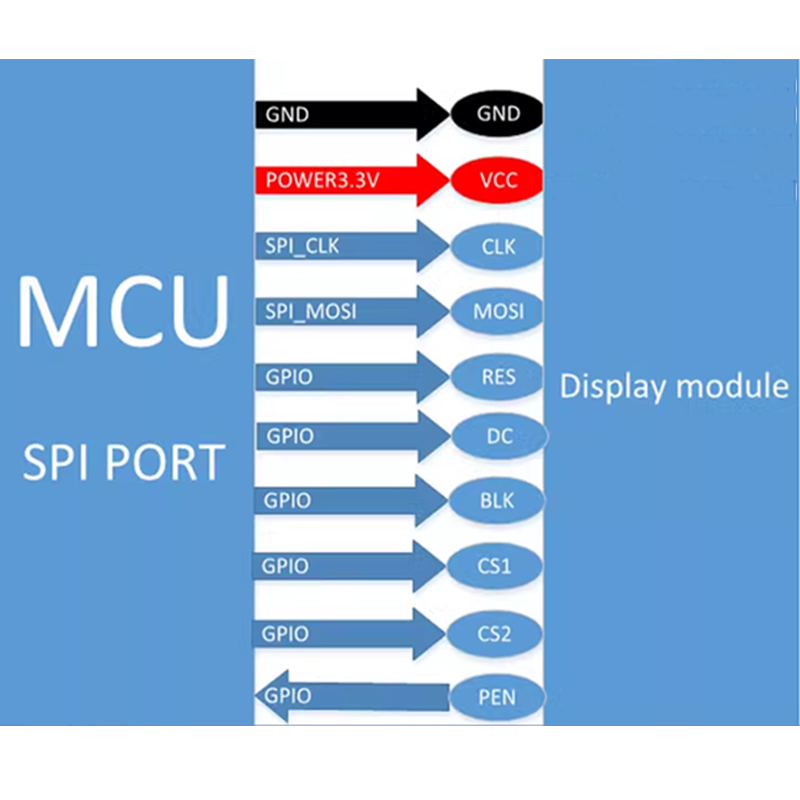

The wiring diagram of the 2.8-inch TFT module

2.8-inch TFT LCD SPI serial port touch screen. Available in touch version or regular version
