Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
2.4 inches, color TFT LCD
Resolution :
240X320
Interface type :
4-SPI
Control chip :
ILI9341, ST7789 (either chip can be selected as needed)
Product highlights :
The display direction can be adjusted
Display area :
36.72X48.96 (mm)
Module size :
43X72.26X5 (T) (mm)
Backlight :
4XLED
Current :
60mA
Power consumption :
0.22W
Pin count :
9 pins (single row of 2.54mm spacing jumper pins)
Viewing angle direction :
12 o'clock direction
Operating temperature :
-20~70℃
Description

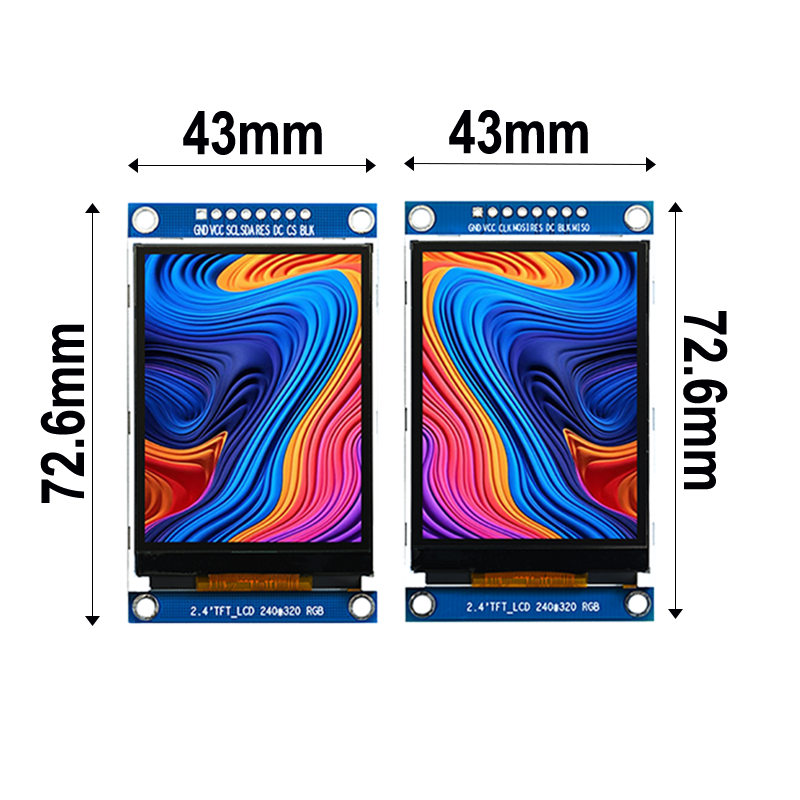

2.4-inch TFT module size

2.4-inch SPI serial port module, with ili9341/ST7789 drivers, supporting optional TFT LCD display module,segment lcd display,segment lcd

2.4-inch TFT module interface another

Pin number Pin name Function Description
1 GND Power ground terminal
2 VCC Power supply positive 2.8 - 3.55V
3 SCL 4-wire SPI serial clock
4 SDA 4-wire SPI data line
5 RES Display reset
6 DC LCD data/command selection
7 CS Display driver chip select, low level effective, needs to be grounded when not in use
8 BLK Backlight control switch, default backlight is on, low level turns off backlight

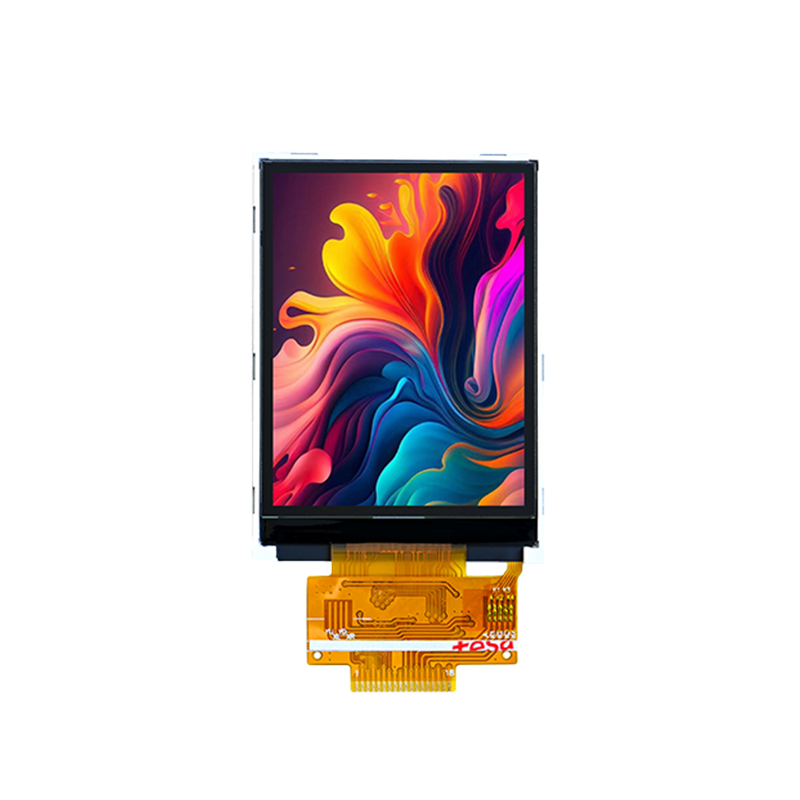

The screen corresponding to the 2.4-inch TFT module

2.4-inch SPI serial port module, with ili9341/ST7789 drivers, supporting optional TFT LCD display module,segment lcd display,segment lcd

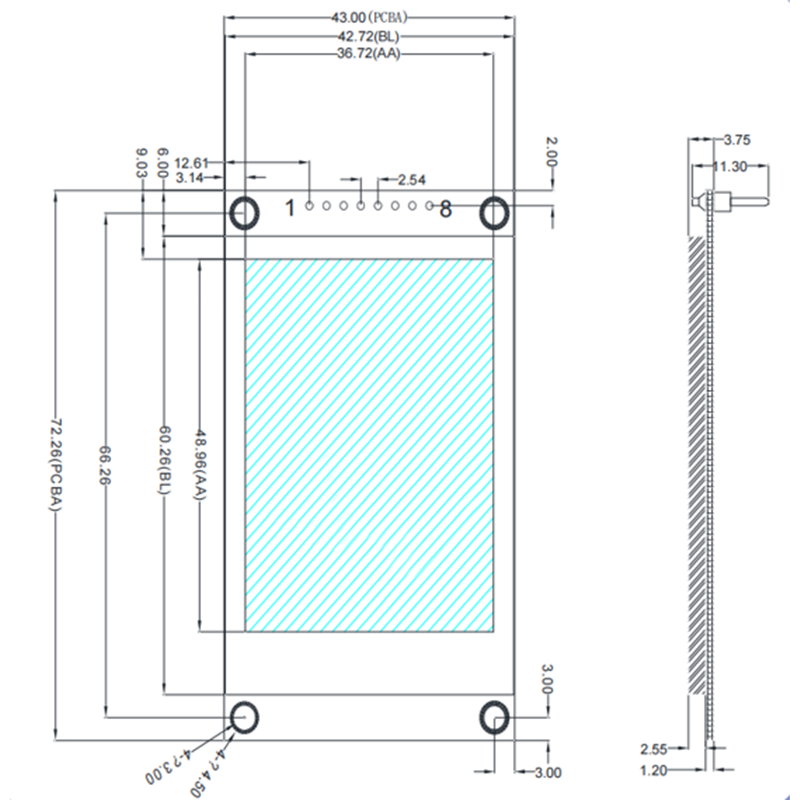

2.4-inch TFT module's structural drawing

2.4-inch SPI serial port module, with ili9341/ST7789 drivers, supporting optional TFT LCD display module,segment lcd display,segment lcd

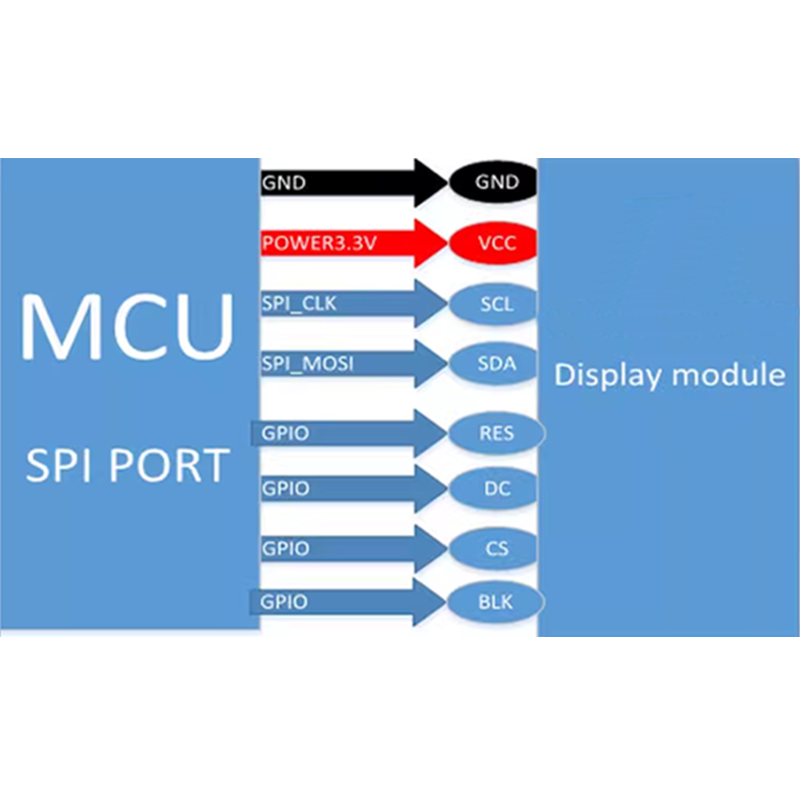

Wiring diagram of the 2.4-inch TFT module

2.4-inch SPI serial port module, with ili9341/ST7789 drivers, supporting optional TFT LCD display module,segment lcd display,segment lcd
