1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd
1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd
1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd
1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd
1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd
1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd
1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd
1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd
1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd
1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd
Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.69-inch TFT
Resolution :
240XRGBX280
Product highlights :
The display direction can be adjusted
Module size :
31.00 (H) X 48.00 (V) X 2.76 (V)
Display area :
27.972 (H) X 32.634 (V)
Display driver chip :
ST7789
Intere type :
fac 8-bit parallel port
Pixel pitch :
0.11655 X 0.11655 (mm)
Backlight type :
LEDX3
Brightness :
480 (TYP)
Pin count :
16 pins with 2.54 (mm) spacing, double row pins, 0.5 spacing for connecting to FPC socket
Viewing angle direction :
Full viewing angle
Operating temperature :
-20~70 degrees
Description

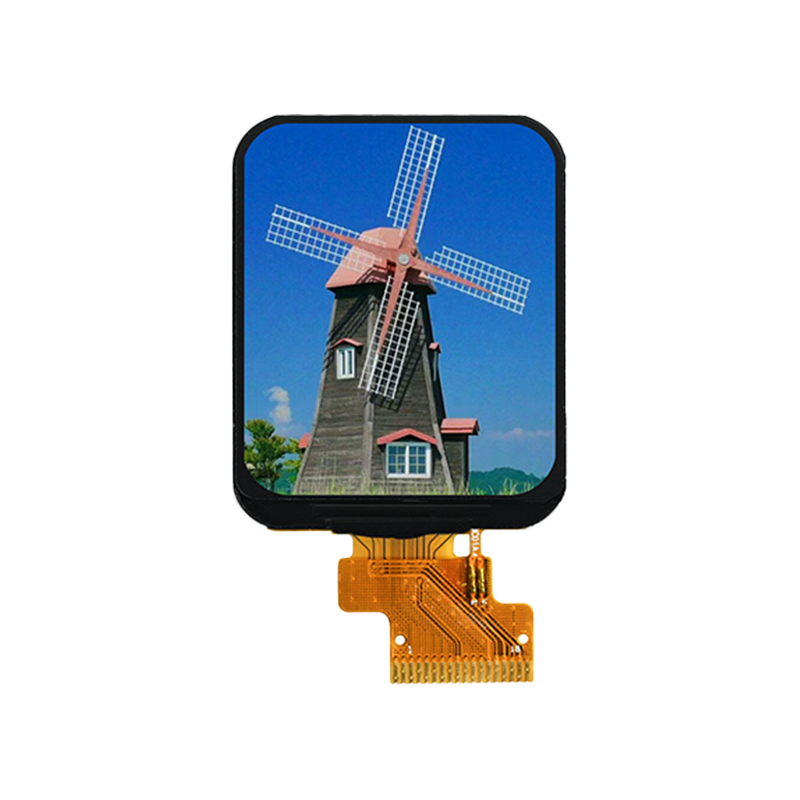

1.69-inch TFT module size

1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd

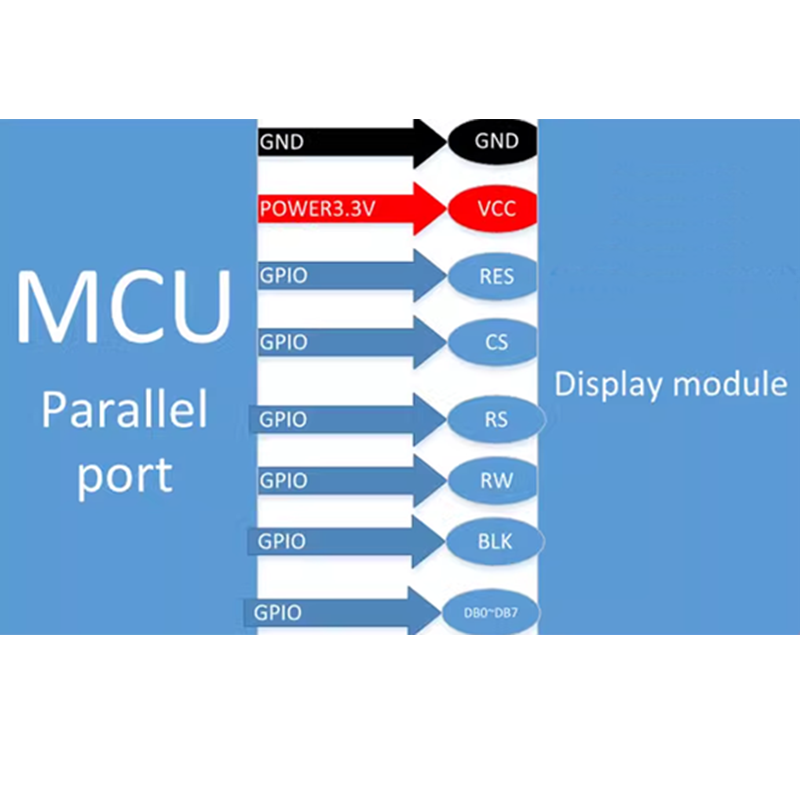

1.69-inch module interface definition

Pin Number Pin Name Function Description
1 VCC Power supply: 3.3V
2 GND Power ground
3 BLK Backlight control switch: By default, the backlight is turned on; a low level signal will turn off the backlight
4 RES LCD reset
5 CS LCD display chip select signal, with low level being the effective state
6 DC LCD data/command selection pin
7 WR Write control signals
8 TE Synchronization signal, not necessary to connect
9 DB0-DB7 8-bit data line

1.69-inch TFT module display screen

1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd

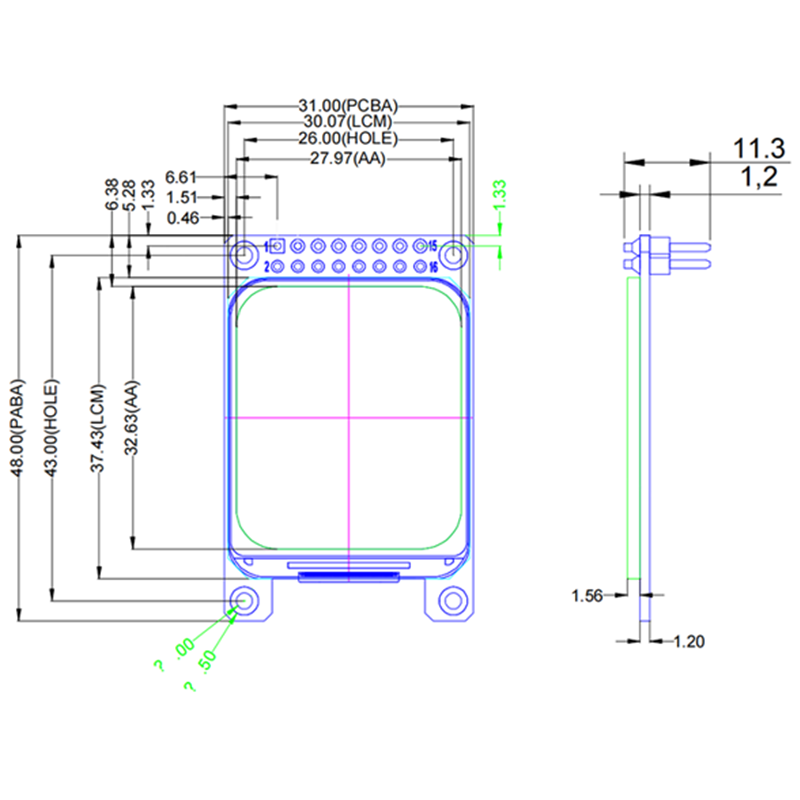

The structural drawing of the 1.69-inch TFT module

1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd

Interface drawing of the 1.69-inch TFT module

1.69-inch 240x280 st7789 driver parallel port TFT LCD display screen,segment lcd display,segment lcd
