Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.54-inch TFT
Material :
TFT LCD
Resolution :
240 X 240
Operating voltage :
3.3V
Driver chip :
ST7789V
Display color :
Full color
Panel area :
32 (H) x 43.72 (V) x 3.2 (D)
Display area :
27.72 X 27.72 (mm)
Pixel size :
0.1155 (H) x 0.1155 (V)
Viewing direction :
12 o'clock direction
Backlight :
2 CHIP White LEDs
Pin count :
8 pins
Working temperature :
-20 to 70 degrees Celsius
Description

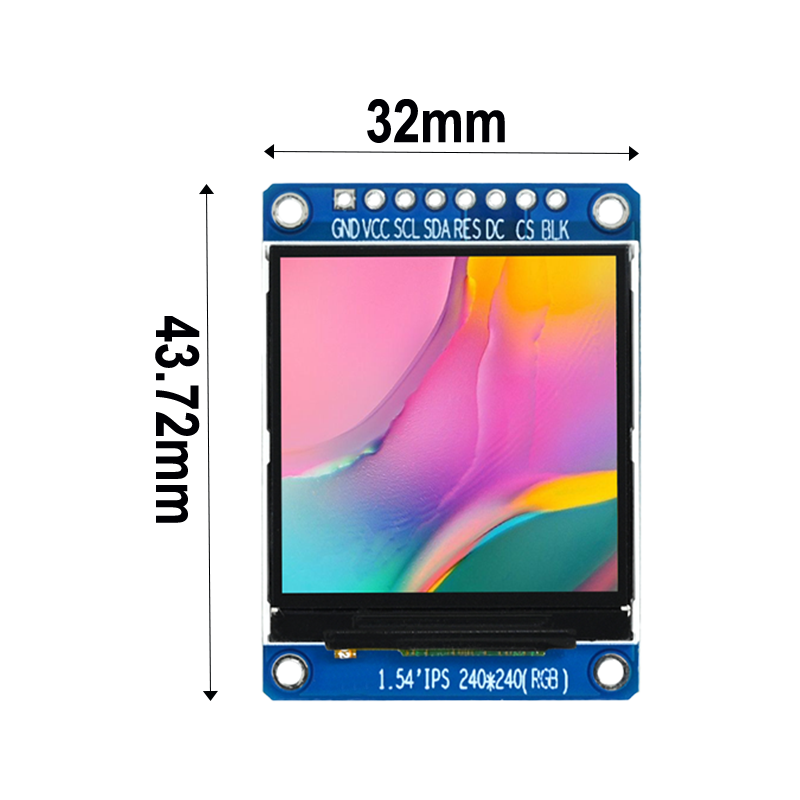

1.54-inch TFT display screen size

1.54-inch 240x240 high-definition TFT display st7789,segment lcd display,segment lcd

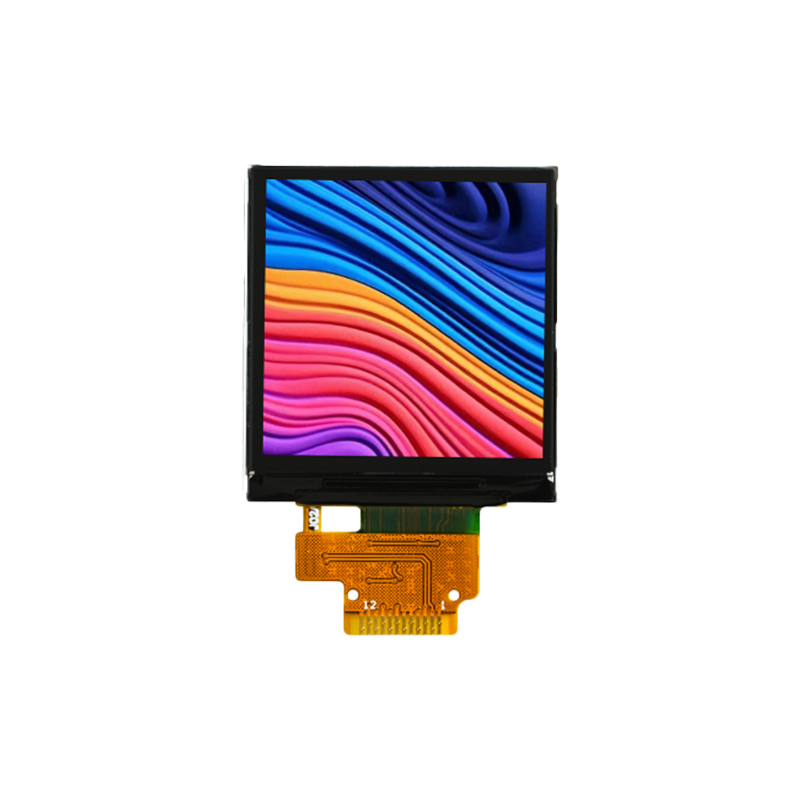

The screen corresponding to the display module

1.54-inch 240x240 high-definition TFT display st7789,segment lcd display,segment lcd

Module interface definition

Pin number pin name function description
1 GND Power ground terminal
2 VCC Main power supply terminal for the display screen
3 SCL Four-line SPI serial clock pin

4

 SDA Four-line SPI serial port data input pin
5 RES Display screen reset
6 DC LCD data/command selection
7 CS Display screen chip select signal
8 BLK Backlight control switch: By default, the backlight is turned on; a low level will turn off the backlight

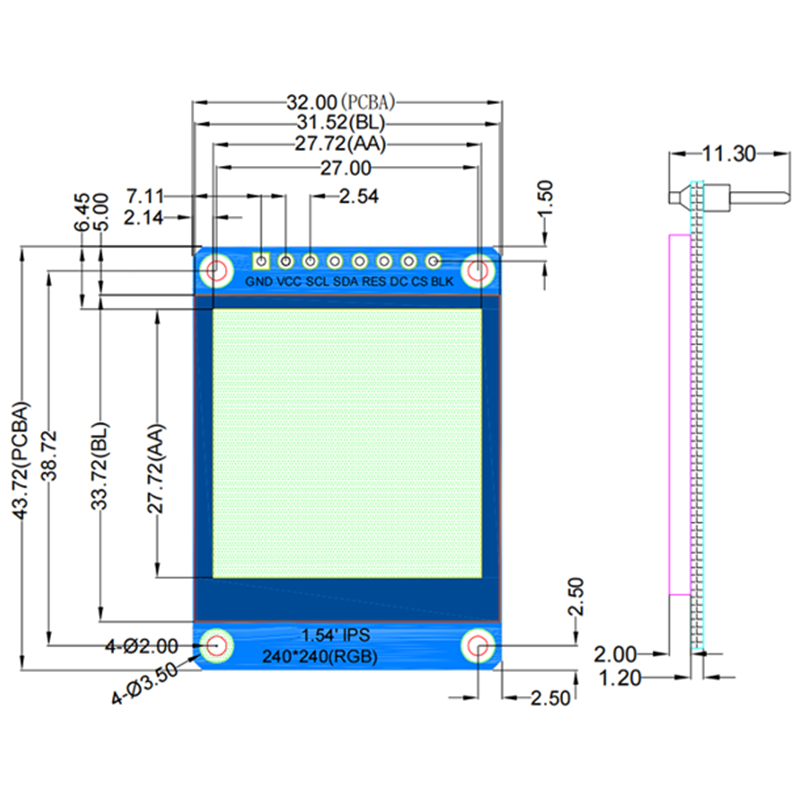

Display screen structure drawing

1.54-inch 240x240 high-definition TFT display st7789,segment lcd display,segment lcd

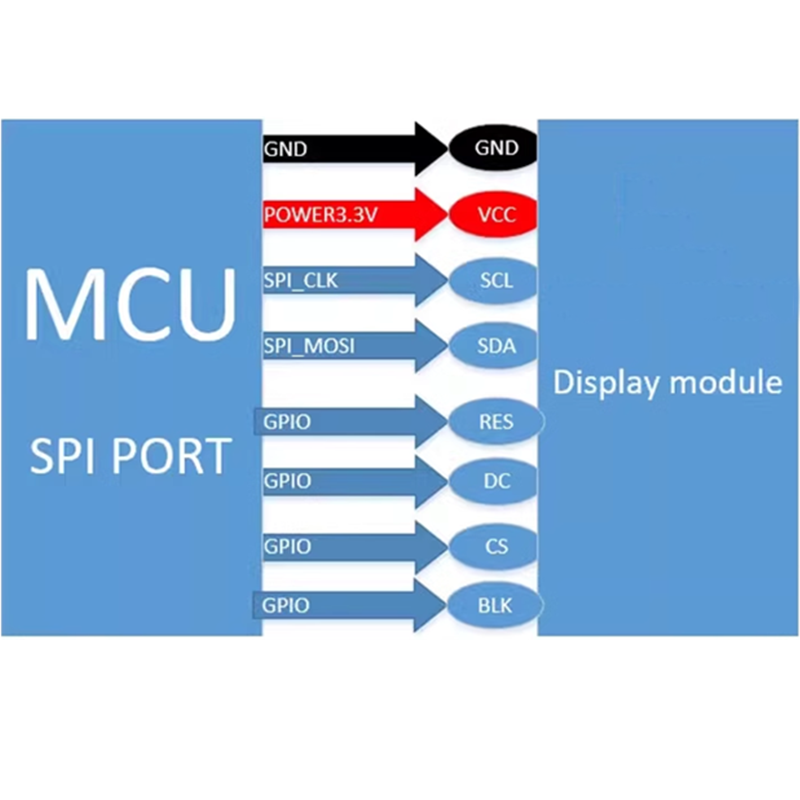

Display screen wiring diagram

1.54-inch 240x240 high-definition TFT display st7789,segment lcd display,segment lcd
