Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
3.2 inches, color TFT LCD
Resolution :
240X320
Interface type :
16-bit parallel port
Touch chip :
XPT2046
Control chip :
ILI19340, ST7789 (either chip can be selected as needed)
Product features :
The display direction can be adjusted
Display area :
48.60X64.80 (mm)
Module size :
56X89.40X3.6 (T) (mm)
Backlight :
LED X 6
Current :
90 ma
Power consumption :
0.32W
Pin count :
34 pins (2.54mm spacing double row pins)
Viewing angle direction :
12 o'clock direction
Operating temperature :
-20~70℃
Description

The size of the 3.20-inch color TFT module

3.2 inches, optional touch/non-touch, with a size of 240X320, a color TFT display module,segment lcd display,segment lcd

3. Interface definition of the 3.20-inch color TFT module

Pin number Pin name Function description
1 CS Chip select for LCD driver, low level active
2 RS Selection data/selection register
3 WR Write control pin
4 RD Read control pin
5 RES LCD reset pin, low level resets
6~21 D0-D15 16-bit data line
22,26,27 GND Power ground pin
23 BLK Backlight control switch, default not connected, low level turns off backlight
24,25 VCC Power supply 3.3V
28 B1-VDD Backlight adjustment voltage, default is consistent with the display voltage of the screen
29 MIS Touch chip output signal
30 MOS Touch chip input signal
31 PEN Touch chip interrupt signal
32 NC Floating
33

TCS

Touch chip chip select, low level active
34 TCLK Touch chip clock pin

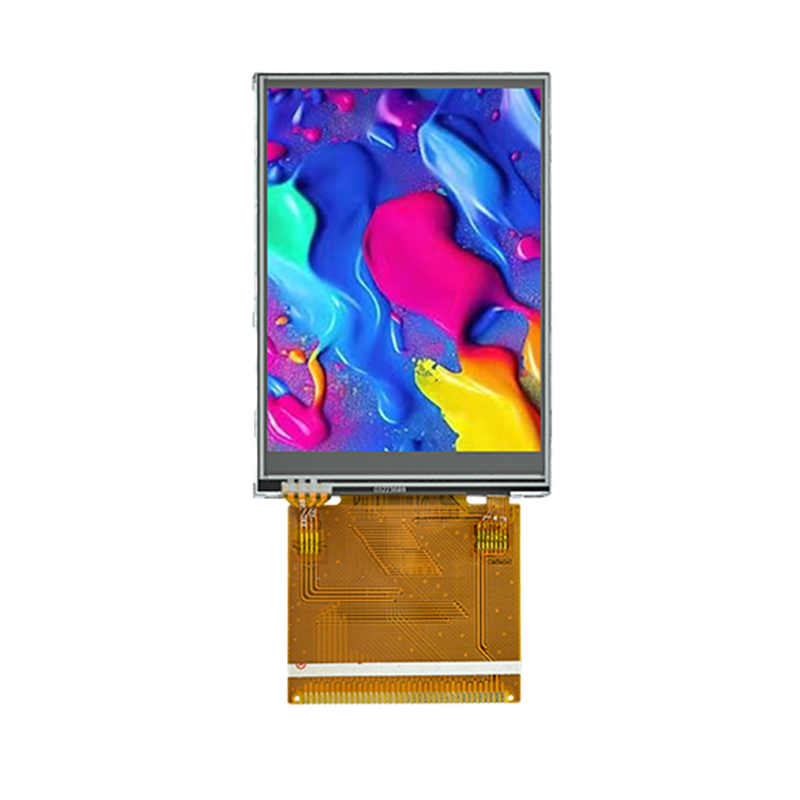

3.2-inch TFT color module display screen

3.2 inches, optional touch/non-touch, with a size of 240X320, a color TFT display module,segment lcd display,segment lcd

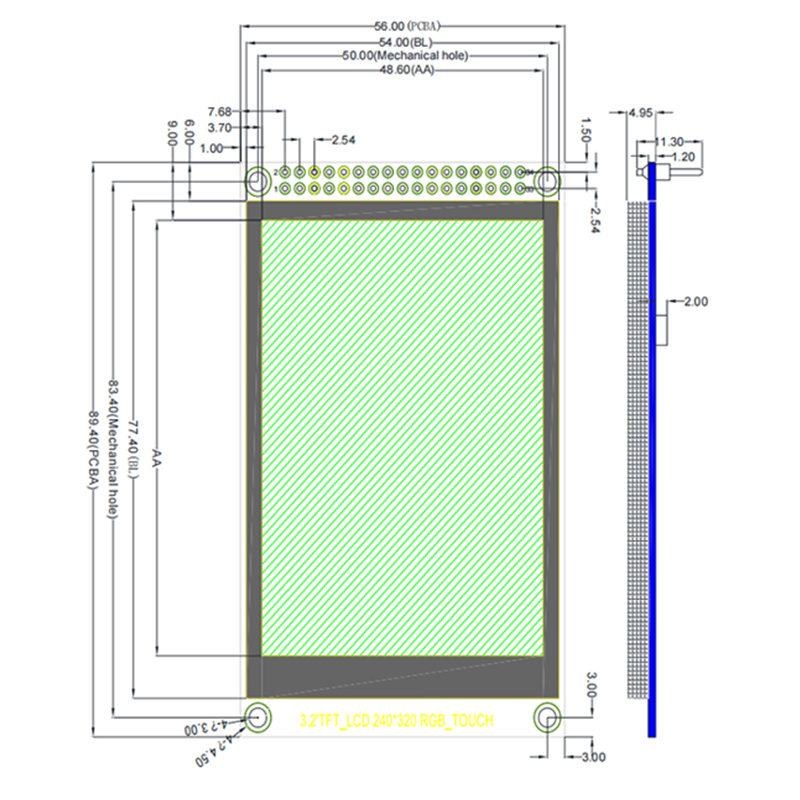

Structural drawing of the 3.20-inch color TFT module

3.2 inches, optional touch/non-touch, with a size of 240X320, a color TFT display module,segment lcd display,segment lcd
