Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
3.5-inch TFT
Resolution :
320XRGB X 480. The display orientation can be adjusted, either in landscape or portrait mode
Touch IC :
GT911
Touch type :
5-point capacitive touch. Capacitive touch. It can simultaneously identify the real-time accurate positions, movement trajectories and touch areas of 5 touch points
Module size :
Capacitive touch: 55.26 (W) X 84.52 (H) X 5.48 (T) mm
Display area :
48.96 (W) X 73.44 (H) mm
Display driving chip :
ST7796
Interface type :
Screen interface: 8-bit (8-bit parallel port), touch part: IIC interface
Pixel size :
0.153 X 0.153
Backlight type :
LED X 6
Voltage :
3.3V
Current :
90ma
Pin count :
20 pins, 2.54 (mm) spacing, double row pins
Viewing angle direction :
12 o'clock direction
Operating temperature :
-20~70 degrees
Description

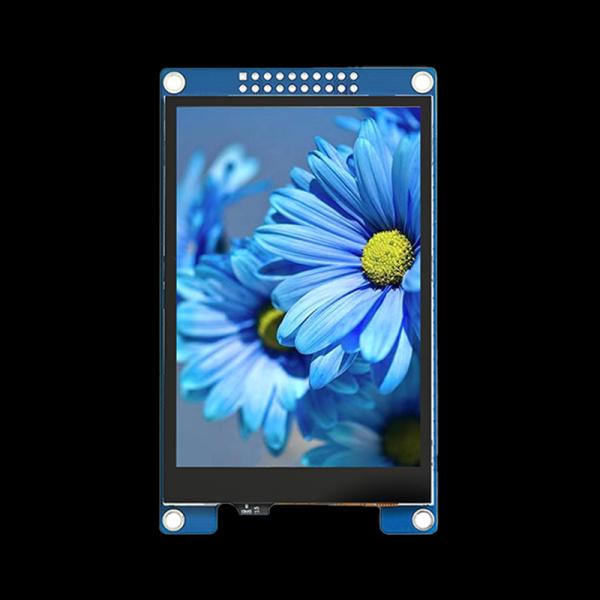

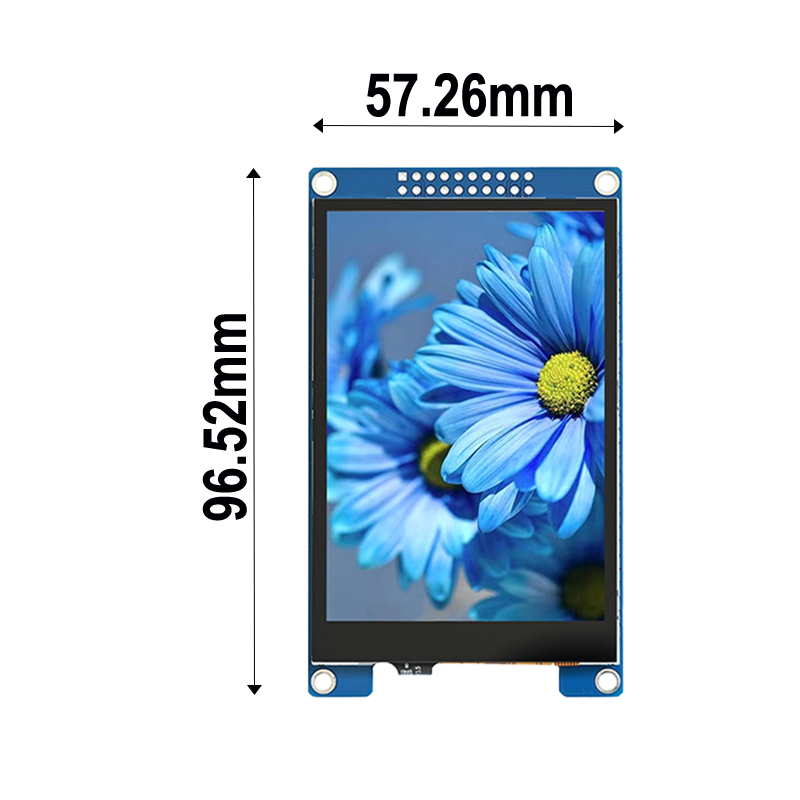

The size of the 3.5-inch TFT module

3.5-inch 320X480, ST7796 driver parallel port capacitive touch display screen,segment lcd display,segment lcd

Definition of the module interface for the 3.5-inch TFT module

Pin Number Pin Name Function Description
1 VCC Positive power supply 3.3V
2 GND Power ground pin
3 BLK Backlight control switch. The backlight is enabled by default and turned off with a low level
4 RES LCD reset for the display section
5 CS LCD select signal for the display section, valid with a low level
6 WR LCD data/command selection pin for the display section
7 RD Serial port write control pin
8 R0 Serial port read control pin
9-16 D0-D7 8-bit data line
17 CRES Reset pin for the touch chip, the pin is connected to pin 4 (RES) through a 0-ohm resistor R7 by default: select one of them; simultaneous reset is sufficient
18 CINT Touch interrupt
19 CSCL IIC communication clock for the touch section
20 CSDA IIC communication data line for the touch section

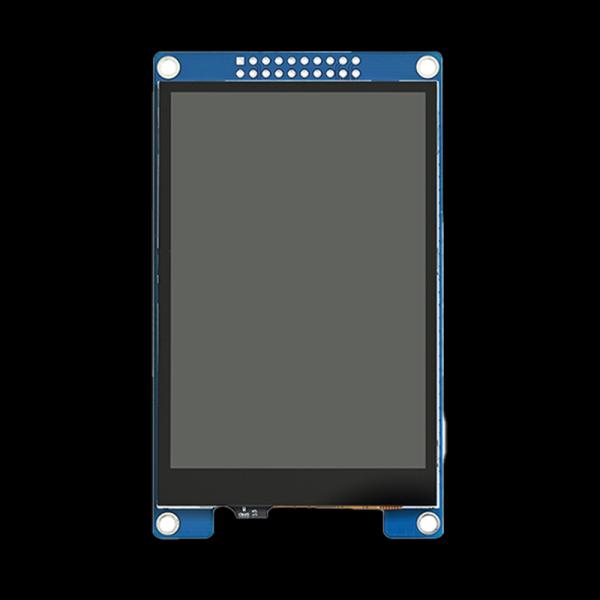

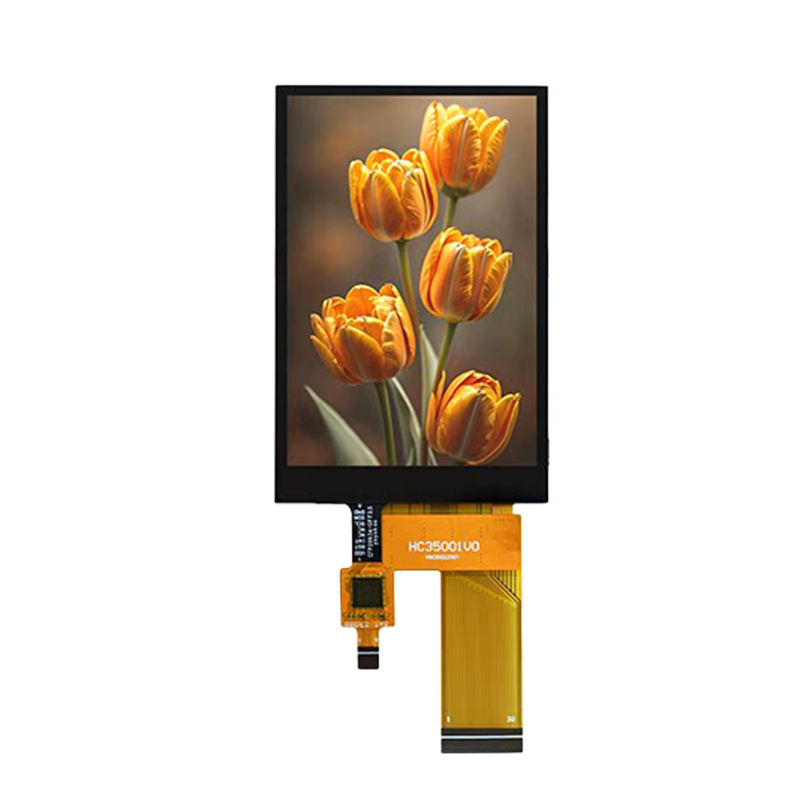

The corresponding screen for the 3.5-inch TFT module

3.5-inch 320X480, ST7796 driver parallel port capacitive touch display screen,segment lcd display,segment lcd

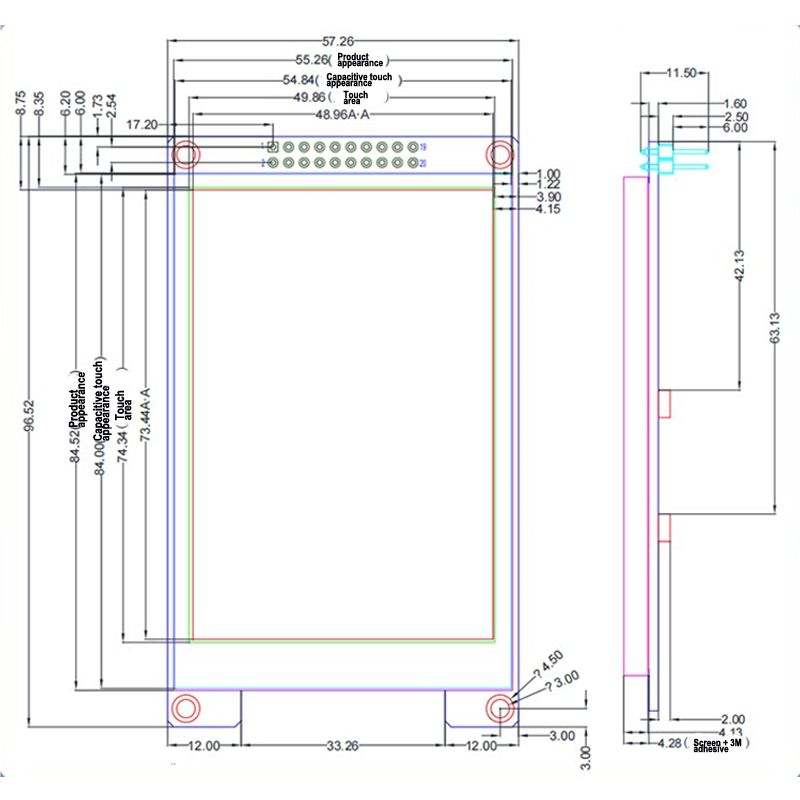

The structural drawing of the 3.5-inch TFT module

3.5-inch 320X480, ST7796 driver parallel port capacitive touch display screen,segment lcd display,segment lcd
