4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd
4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd
4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd
4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd
4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd
4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd
4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd
4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd
4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd
4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd
Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
4.0 inches, color TFT LCD
Resolution :
320 X 480
Interface type :
16-bit parallel port
Touch chip :
XPT2046
Control chip :
ILI9488
Product highlights :
The display direction can be adjusted
Display area :
55.68 X 83.52 (mm)
Module size :
62 X 106.57 X 4.9 (T) (mm)
Pixel size :
0.174 X 0.174 (mm)
Backlight :
LED X 8
Working voltage :
2.9~3.3V
Current :
120ma
Power consumption :
0.43W
Pin count :
34 pins (2.54mm spacing double row pins)
Viewing angle direction :
12 o'clock direction
Working temperature :
-20~70℃
Description

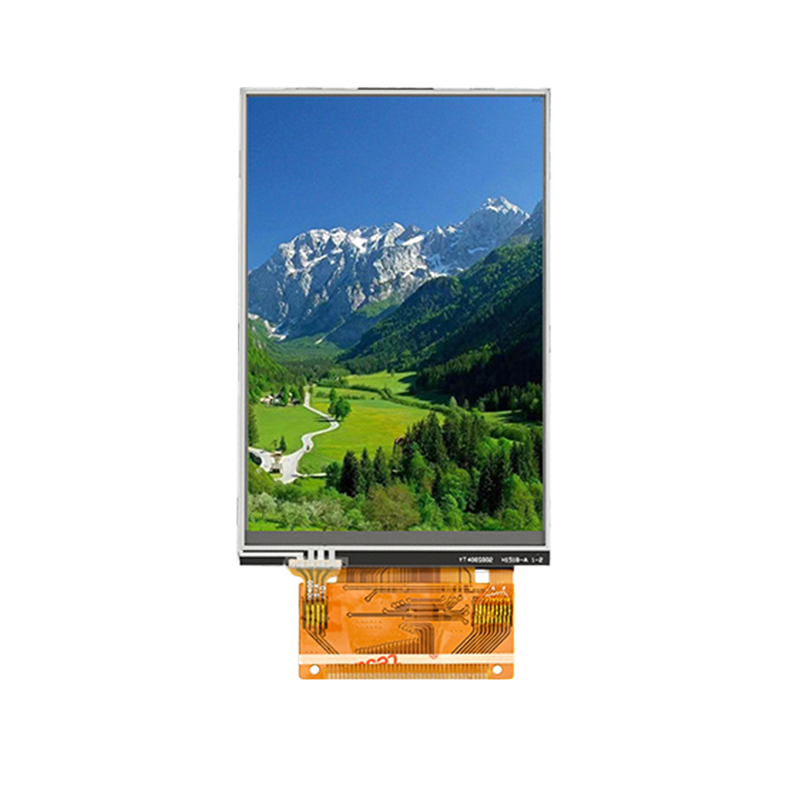

The size of the 4.0-inch color TFT module

4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd

4.0-inch color TFT module interface definition

Pin number pin name function description
1 CS Chip select pin of the display driver chip, low level effective
2 RS Selection data/selection register
3 WR Write control pin
4 RD Read control pin
5 RES Reset pin of the display driver chip, low level resets
6~21 D0-D15 16-bit data line
22,26,27 GND Power ground pin
23 BLK Backlight control pin, default can be left unconnected, low level turns off backlight
24,25 VCC Power supply 3.3V
28 B1_VDD Backlight adjustment voltage, default is consistent with the display voltage of the screen
29 MIS Touch chip output signal
30 MOS Touch chip input signal
31 PEN Touch chip interrupt
32 NC Floating
33 TCS Touch chip chip select, low level effective
34 TCLK Touch chip clock pin when touching the chip

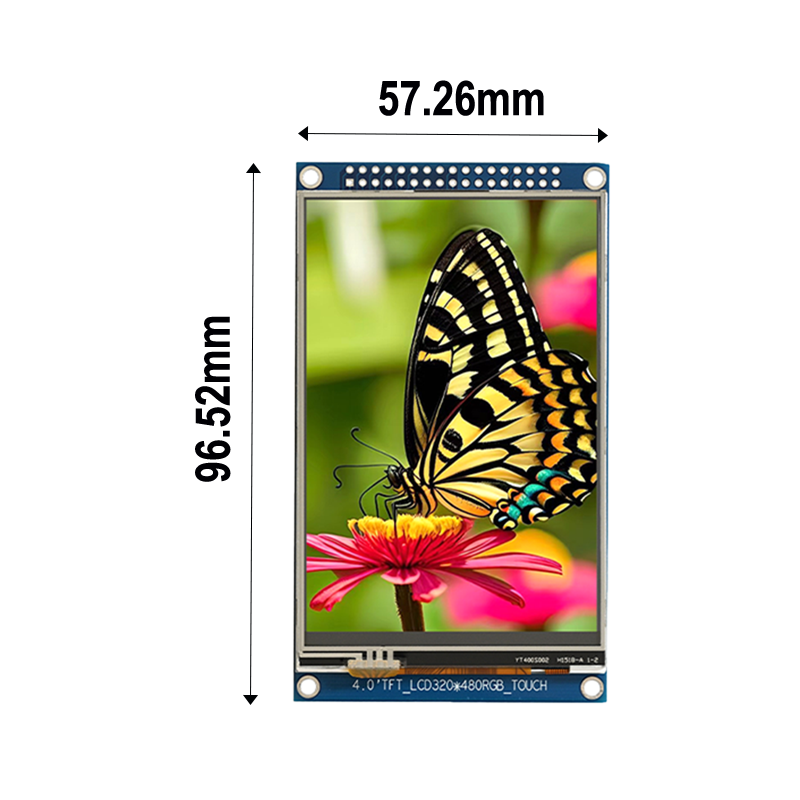

The corresponding screen of the 4.0-inch color TFT module

4.0-inch touch-enabled color screen with a 320 X 480 TFT LCD module, using the ILI9488 chip,segment lcd display,segment lcd

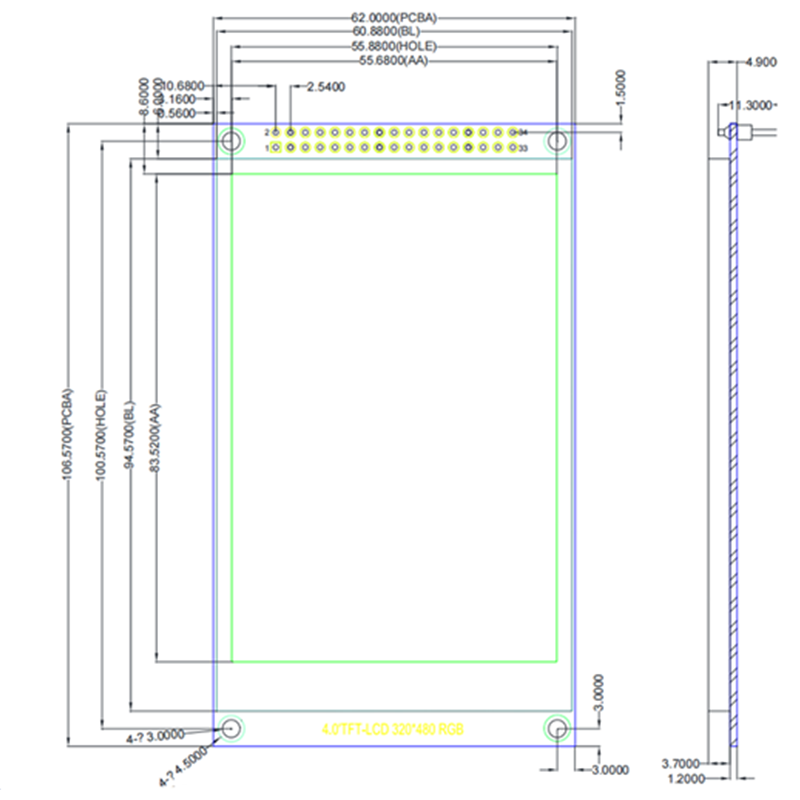

Structural drawing of the 4.0-inch color TFT module
