Specifications
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.05-inch IPS LCD
Material :
IPS LCD
Resolution :
120 (RGB) X 240
Communication Interface :
4-SPI
Operating Voltage :
3.3V
Driver Chip :
GC9A01
Display Color :
Full Color
Panel Size :
14.25 (H) X 28.6 (V) X 1.56 (D)
Display Area :
11.88 (H) X 23.76 (V)
Pixel Pitch :
0.099 (H) X 0.099 (V)
Viewing Angle :
Full View
Backlight :
1 CHIP White LED
Connection Method :
Soldered (13Pin 0.7mm spacing), Plug-in (8Pin 0.5mm spacing)
Operating Temperature :
-20~70℃
Description

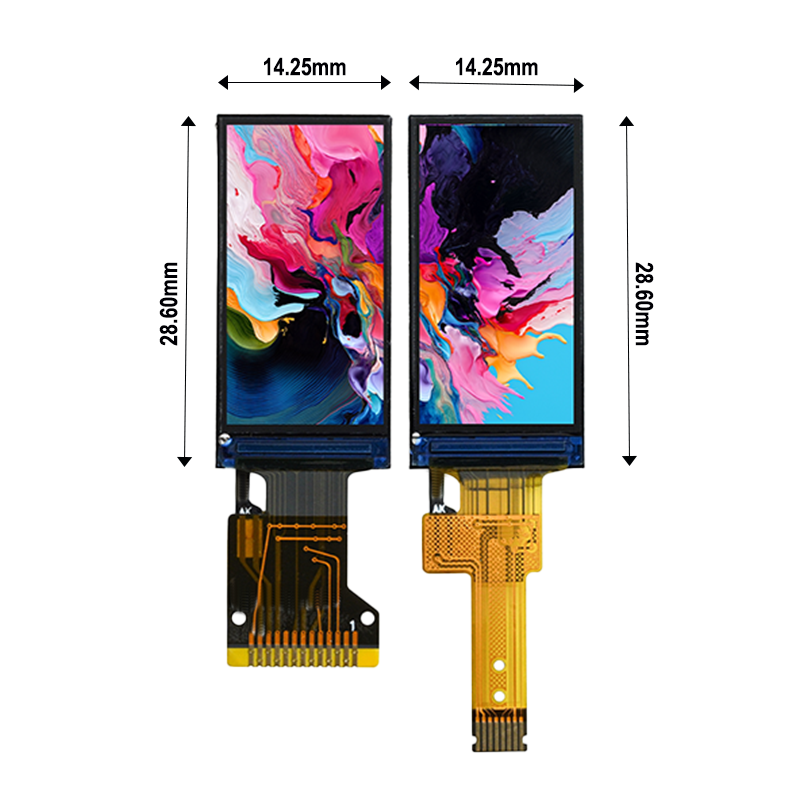

The size of the 1.05-inch color IPS screen

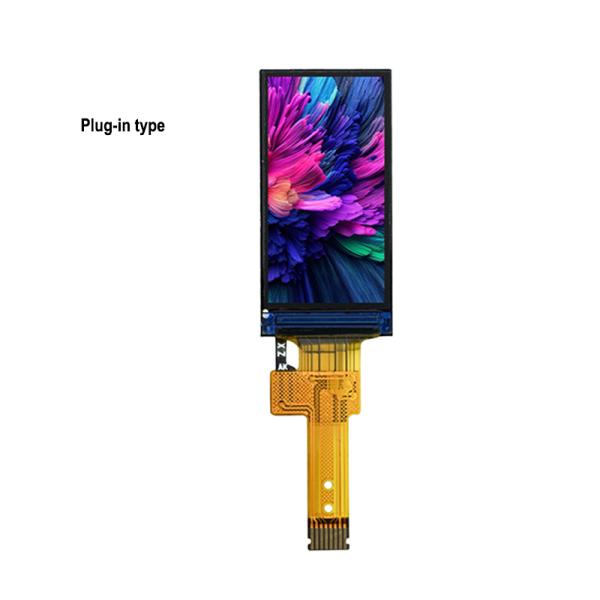

1.05 inches, driven by GC9A01, a TFT display with a resolution of 128X240 IPS LCD screen, available in plug-in or soldered types

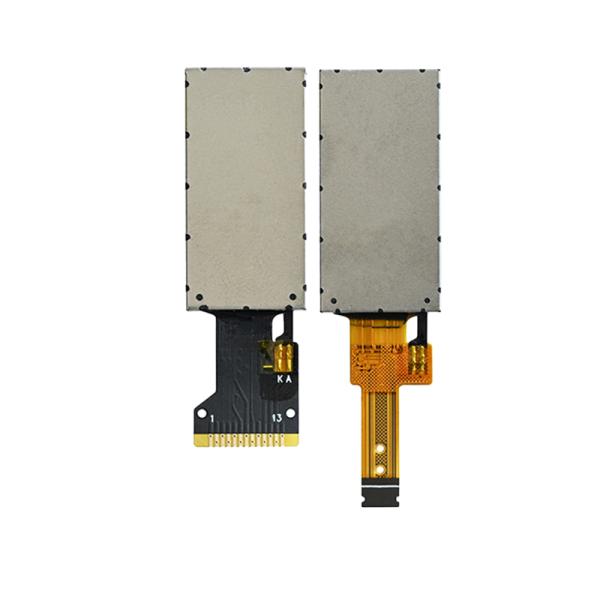

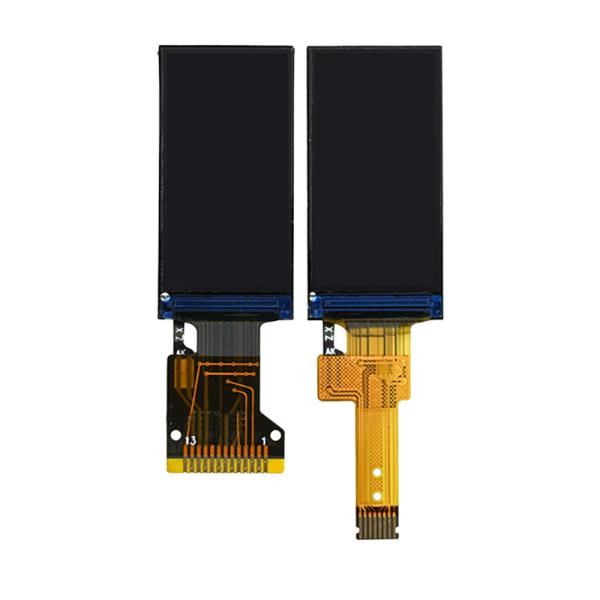

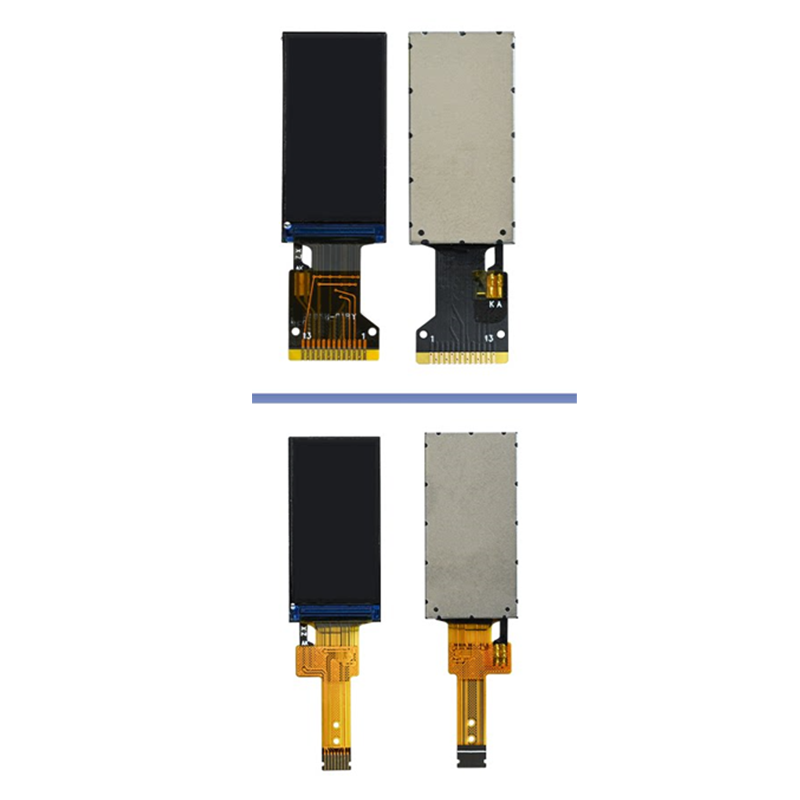

Product details of the 1.05-inch color IPS screen

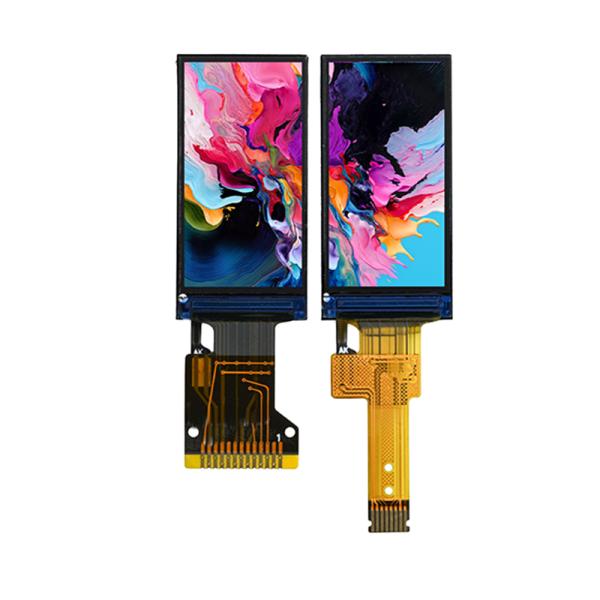

1.05 inches, driven by GC9A01, a TFT display with a resolution of 128X240 IPS LCD screen, available in plug-in or soldered types

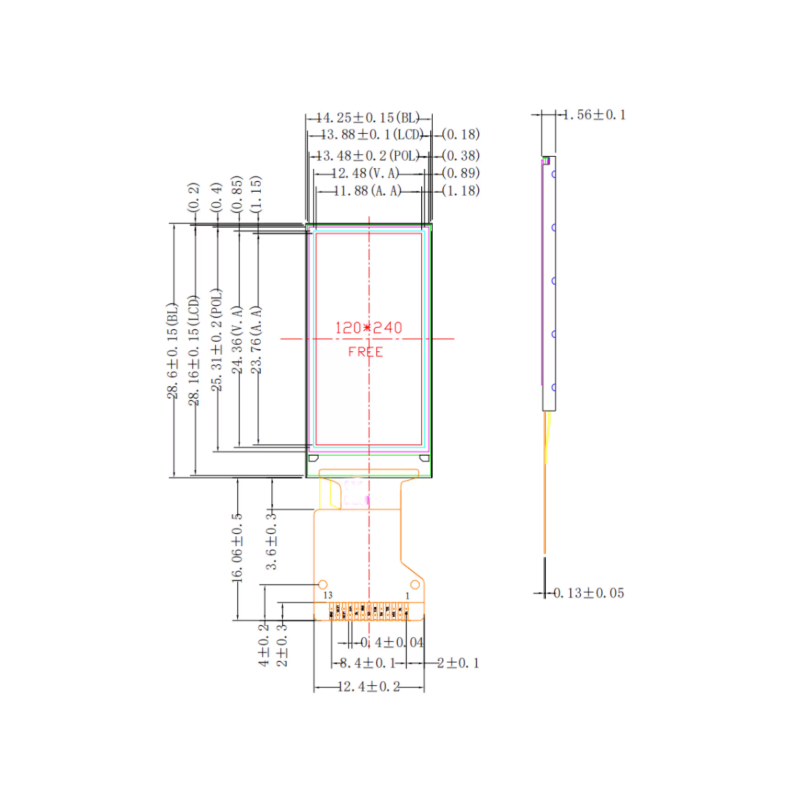

1.05-inch color IPS screen with soldered interface definition

Pin Symbol Pin Symbol
1 NC 8 GND
2 NC 9 NC
3 SDA 10 VDD
4 SCL 11 LEDK
5 RS 12 LEDA
6 RES 13 GND
7 CS

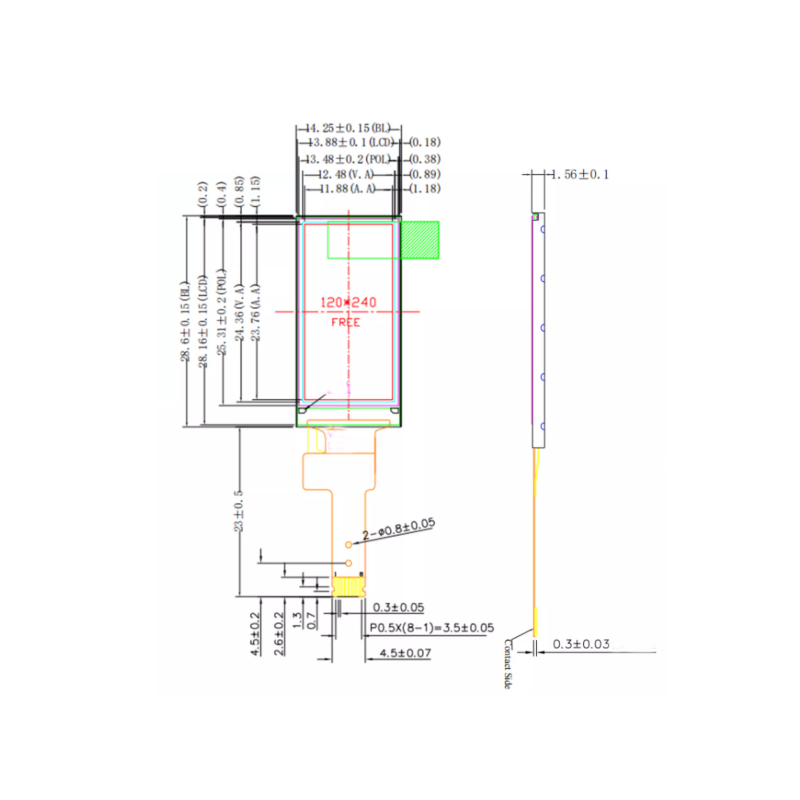

1.05-inch color IPS screen plug-in structure drawing

1.05 inches, driven by GC9A01, a TFT display with a resolution of 128X240 IPS LCD screen, available in plug-in or soldered types

1.05 inches, driven by GC9A01, a TFT display with a resolution of 128X240 IPS LCD screen, available in plug-in or soldered types
