Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.

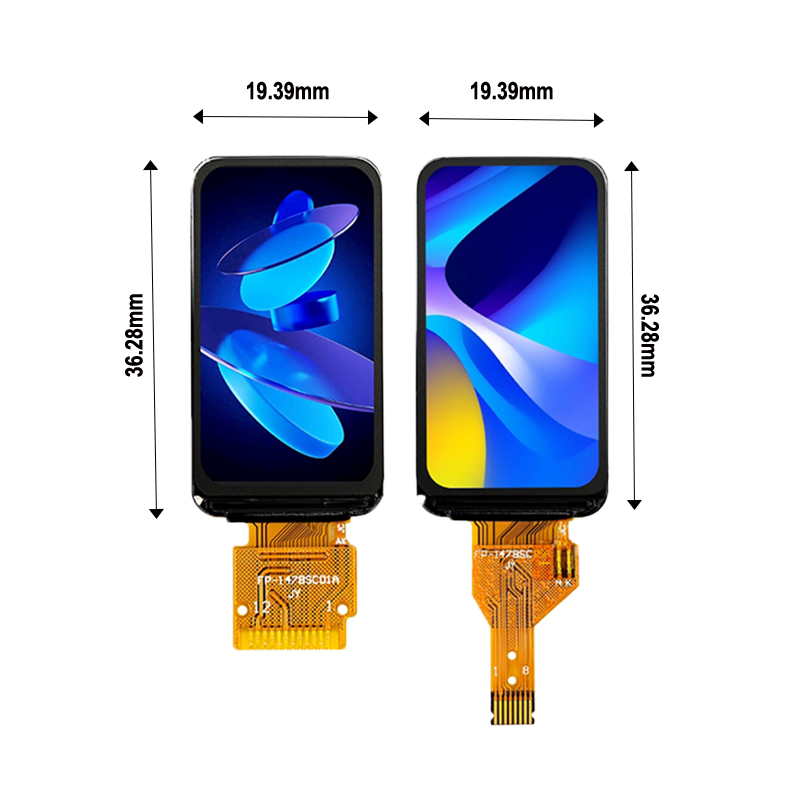

Size :
1.47 inches IPS color LCD
Resolution :
172 (H) RGBX320 (V)
Interface type :
SPI interface
Control chip :
ST7789V3
Highlights of this screen :
High-definition IPS, adjustable display orientation
Display colors :
262K full color
Panel size :
19.39 (H) X 36.28 (V) X 1.46 (D)
Display area :
17.3892 (H) X 32.352 (V)
Pixel pitch :
0.0337 (H) X 0.1011 (V)
Pin count :
Soldered (12Pin 0.7mm pitch soldered FPC); Plug-in (8Pin 0.5mm pitch top-mounted FPC)
Viewing angle direction :
Full viewing angle
Operating temperature :
-20~70 degrees
Logic voltage :
3.3V
Backlight type :
3 White LED Parallel
Brightness :
350 (TYP) Cd/m2
Weight :
2.7g
Connection method :
Soldered (12Pin 0.7mm pitch soldered FPC); Plug-in (8Pin 0.5mm pitch top-mounted FPC)
Description

1.47-inch color screen size

1.47 inches, driven by ST7789, with a TFT display screen of 172*320 resolution. Optional bare screen or SPI interface module

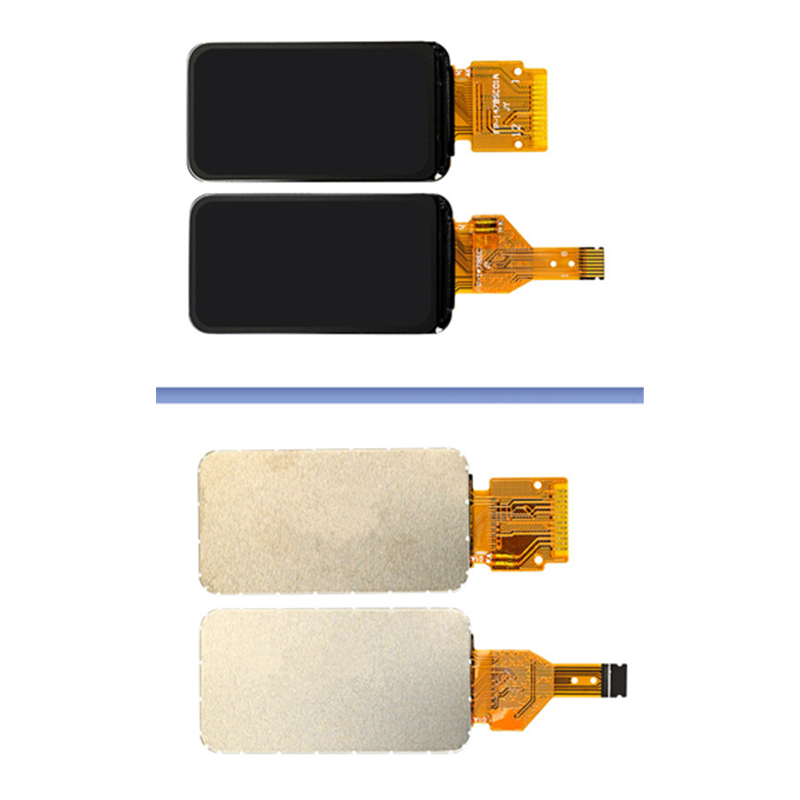

Product details presentation

1.47 inches, driven by ST7789, with a TFT display screen of 172*320 resolution. Optional bare screen or SPI interface module

Welding-type pin definition

pin number pin name function description
1 GND Power Ground
2 LED-K LED Cathode
3 LED-A LED Anode
4 VDD Power Supply for Analog, VDD=2.5V-3.3V
5 GND Power Ground
6 GND Power Ground
7 D/c Display data/command selection pin
8 CS Chip selection pin;Low enable ,high disable
9 SCL This pin is used to be serial interface clock
10 SDA SPl interface input/output pin .the data is latched on the risingedge of the SCL signal
11 RESET his signal will reset the device and it must be applied toproperly initialize the chip .Signal is active low.
12 GND Power Ground

Connector pin definition

pin number pin name function description
1 LED-A LED Anode
2 GND Power Ground
3 RESET his signal will reset the device and it must be applied toproperly initialize the chip .Signal is active low.
4 RS Chip selection pin ;Low enable ,high disable.
5 SDA SPl interface input/output pin the data is latched on the risingedge of the SCL signal.
6 SCL This pin is used to be serial interface clock
7 VDD Power Supply for Analog, VDD=2.5V-3.3V
8 CS Chip selection pin;Low enable ,high disable.

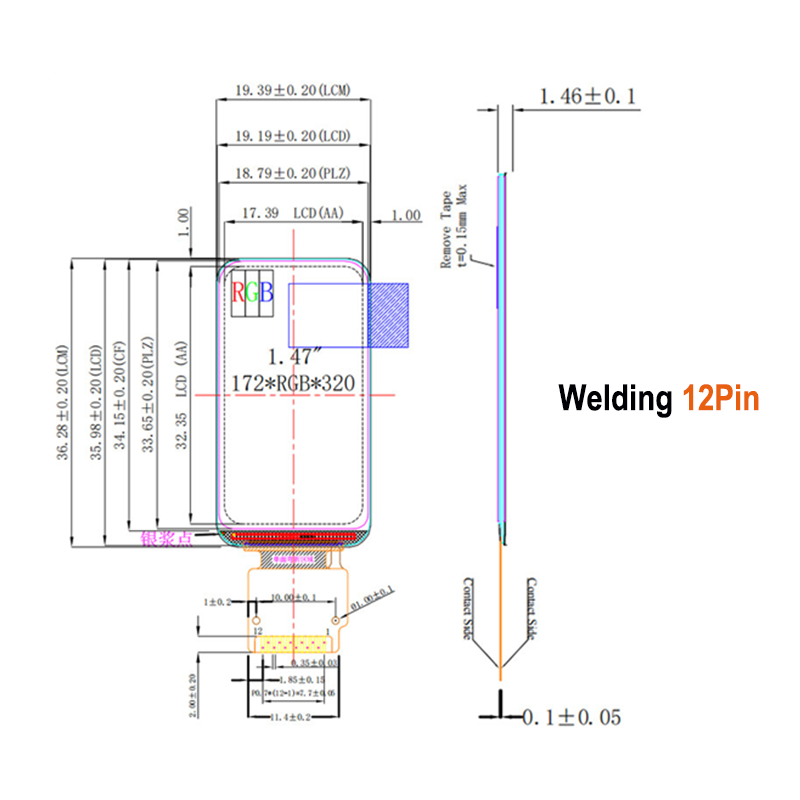

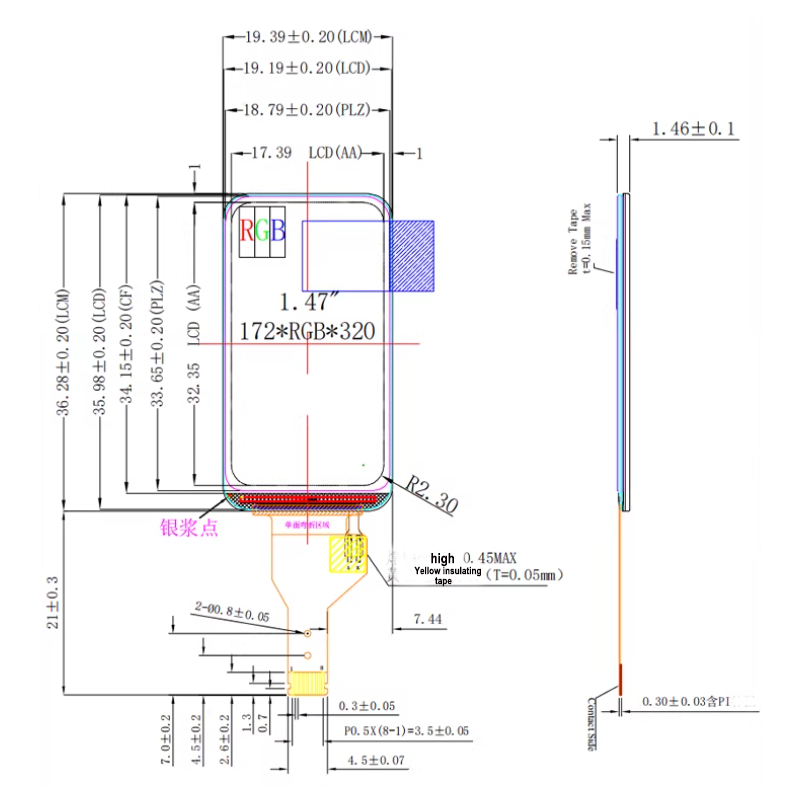

Structural drawing
