Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.28 inches IPS LCD
Material :
TFT LCD
Resolution :
240RGB X 240
Communication interface :
4-SPI
Operating voltage :
3.3V
Driver chip :
GC9A01
Display color :
Full color
Panel size :
35.6 (H) X 38.1 (V) X 1.5 (D)
Display area :
32.4
Pixel pitch :
0.135 (H) X 0.135 (V)
Viewing angle :
Full viewing angle
Backlight :
2 CHIP White LED
Operating current :
20ma
Pin count :
Soldered (12Pin 0.7mm spacing FPC ribbon cable)
Operating temperature :
-20~70℃
Description

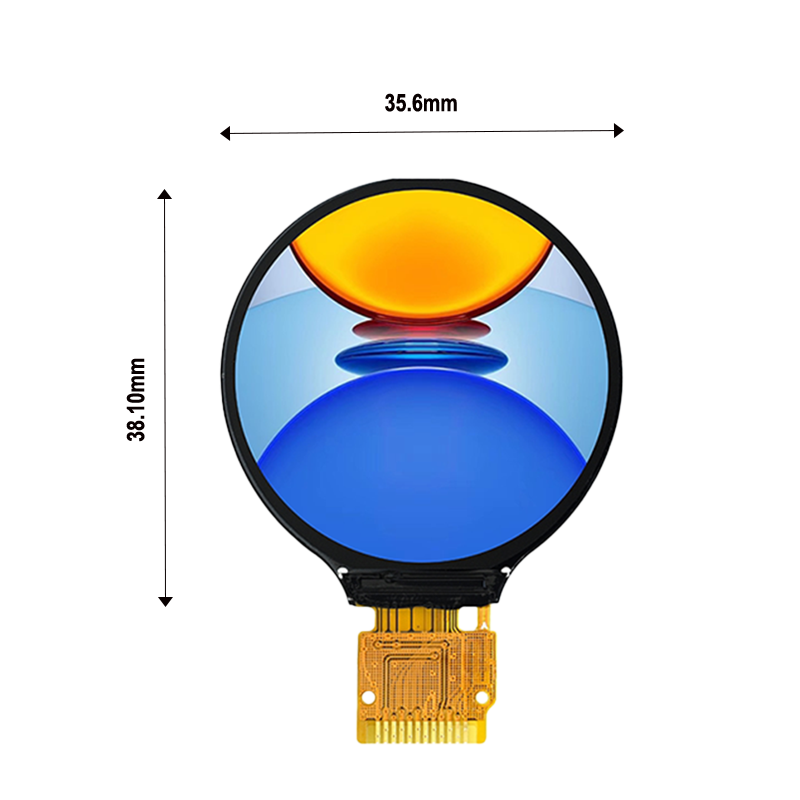

1.28-inch color screen size

1.28 inches, equipped with GC9A01 driver, circular TFT high-definition display screen, TFT module

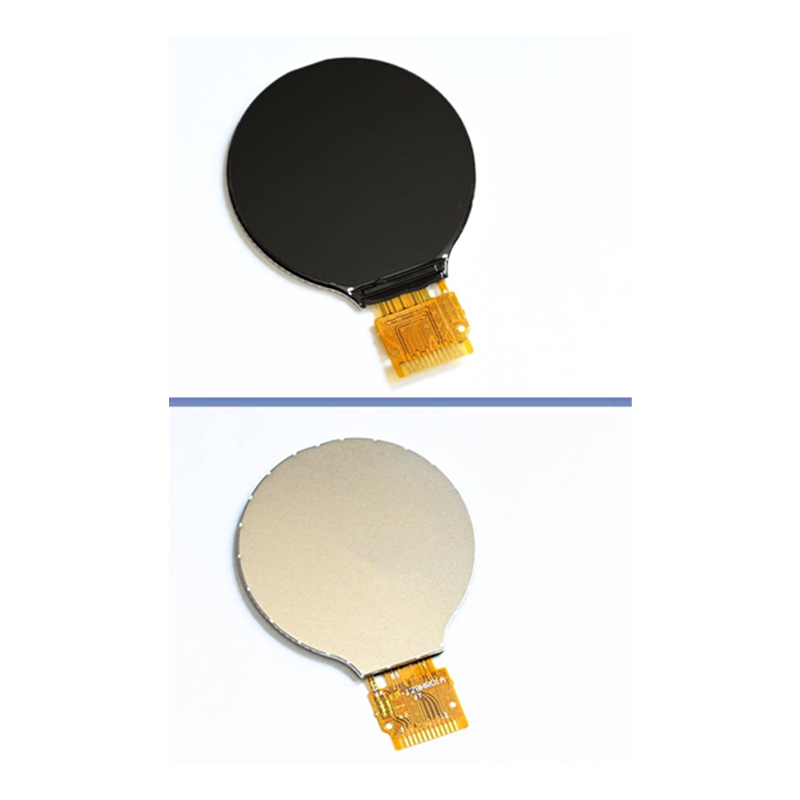

Product details presentation

1.28 inches, equipped with GC9A01 driver, circular TFT high-definition display screen, TFT module

Interface definition

Pin Symbol Pin Symbol
1 GND 7 D/C
2 LEDK 8 CS
3 LEDA 9 SCL
4 VDD 10 SDA
5 GND 11 RESET
6 GND 12 GND

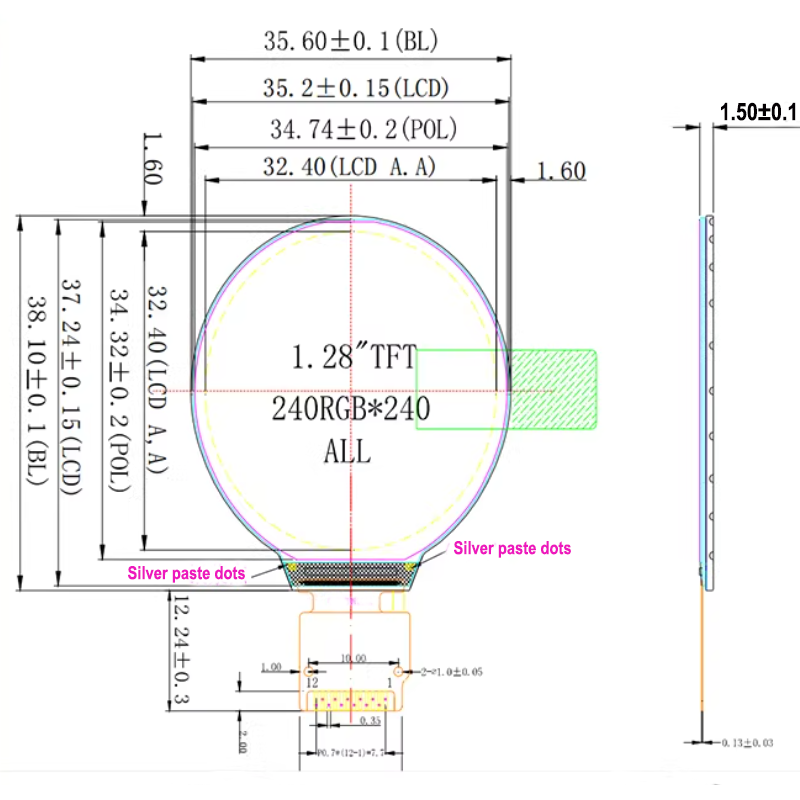

Structural drawing

1.28 inches, equipped with GC9A01 driver, circular TFT high-definition display screen, TFT module
