Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.08 inches IPS LCD
Material :
IPS screen
Resolution :
128 (RGB) X 220
Communication interface :
4-SPI
Operating voltage :
3.3V
Driver chip :
GC9203N
Brightness :
300 (Typical)
Panel size :
16.12 (H) X 29.76 (V) X 1.52 (D)
Display area :
13.824 (H) X 23.76 (V)
Pixel pitch :
0.108 (H) X 0.108 (V)
Viewing angle :
Full view
Backlight :
1 CHIP White LED
Connection method :
Soldered (13Pin 0.7mm spacing FPC ribbon cable)
Operating temperature :
-20~70℃
Description

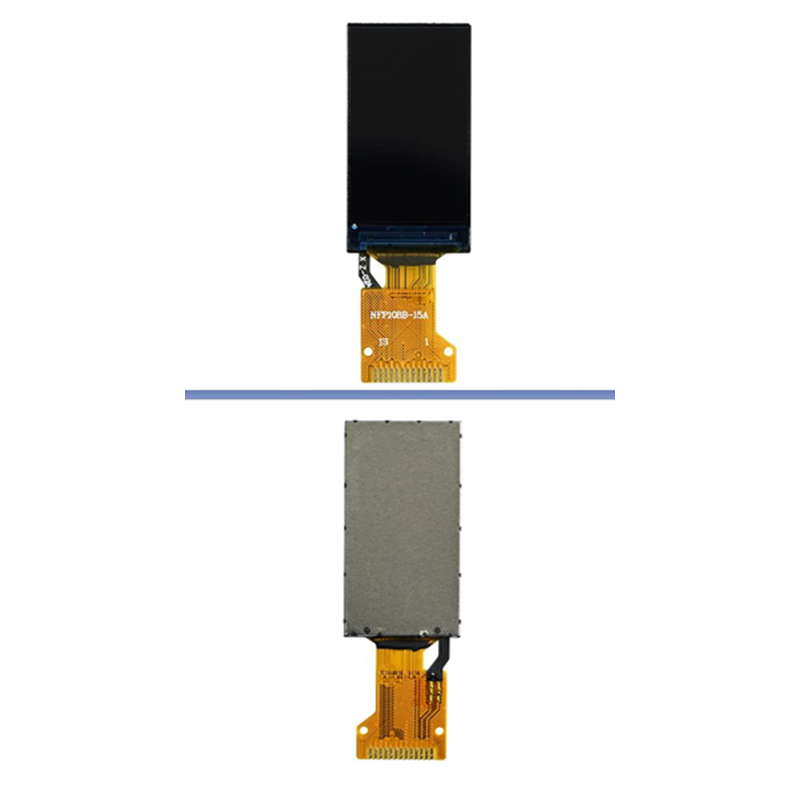

Product details presentation

1.08 inches, driven by GC9203, with a 128X220 TFT display screen of IPS type

Interface definition

Pin Symbol Pin Symbol
1 NC 8 GND
2 NC 9 NC
3 SDA 10 VDD
4 SCL 11 LEDK
5 RS 12 LEDA
6 RES 13 GND
7 CS

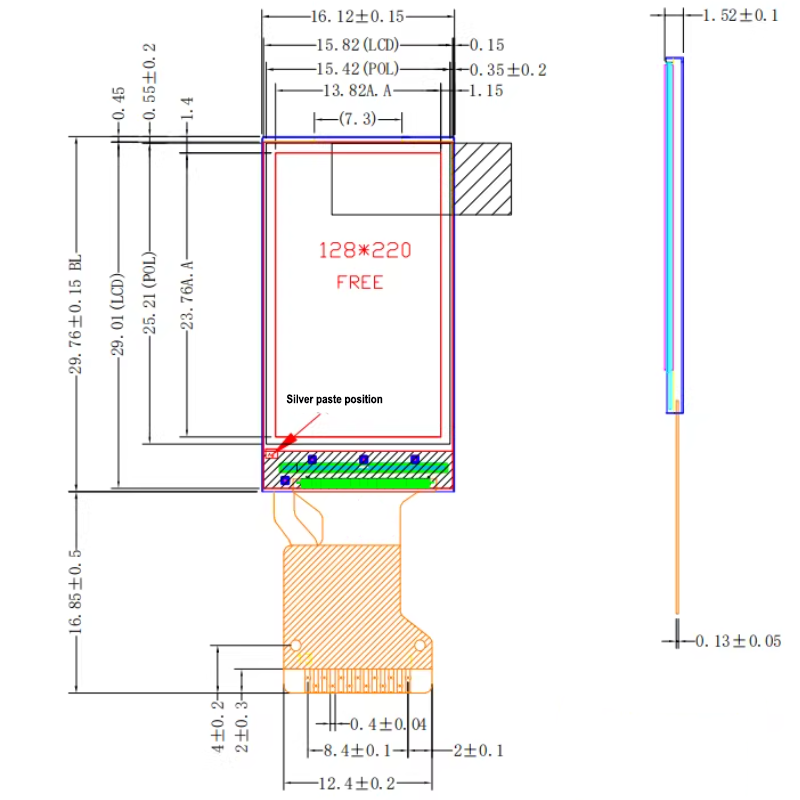

Structural drawing

1.08 inches, driven by GC9203, with a 128X220 TFT display screen of IPS type
