Specifications
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.3 inches
Material :
High-definition TFT LCD
Resolution :
240 (H) RGB X 240 (V)
Driver chip :
ST7789
Communication interface :
Soldered 12Pin and plug-in 12Pin (SPI interface), plug-in 24Pin (SPI and 8-bit parallel interface)
Display color :
Full color
Display area :
23.4 (H) X 23.4 (V) mm
Panel size :
26.16 (H) X 29.22 (V) X 1.5Nax (D) mm
Pixel pitch :
0.0957 (H) X 0.0975 (V)
Connection method :
Soldered 12Pin (0.7mm pitch soldered FPC), plug-in 12Pin (0.5mm pitch top-mounted FPC), plug-in 24Pin (0.5mm pitch top-mounted FPC)
Viewing angle direction :
Full viewing angle
Working voltage :
3.3V
Working current :
20mA
Backlight :
2 White LEDs in parallel
Working temperature :
-20~70℃
Description

1.30-inch color screen size

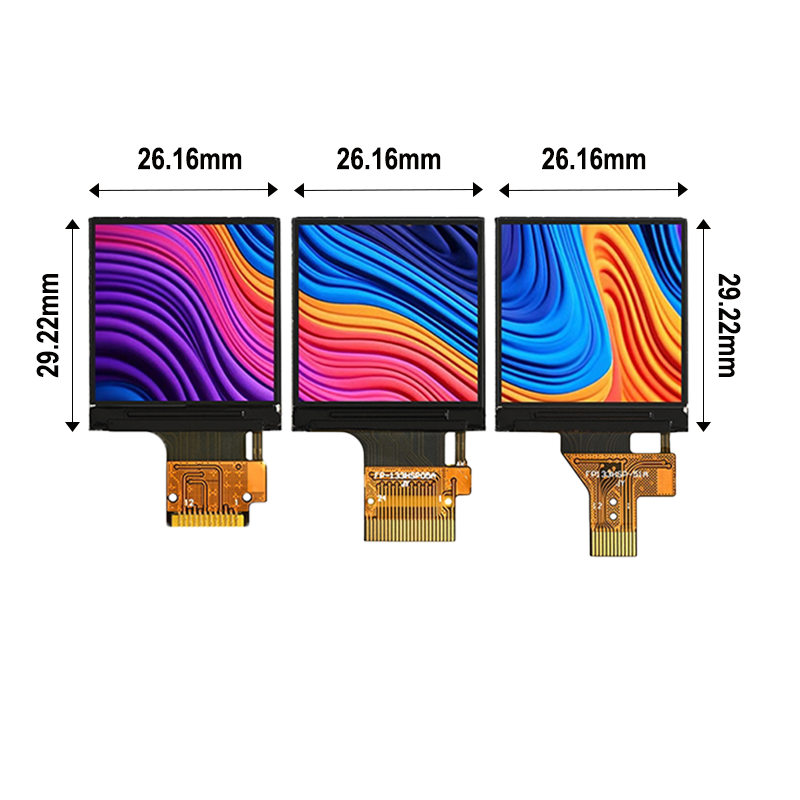

1. 30 inches, driven by ST7789, round TFT high-definition display panel, bare screen, 12/24 pins, available in soldered or plug-in type

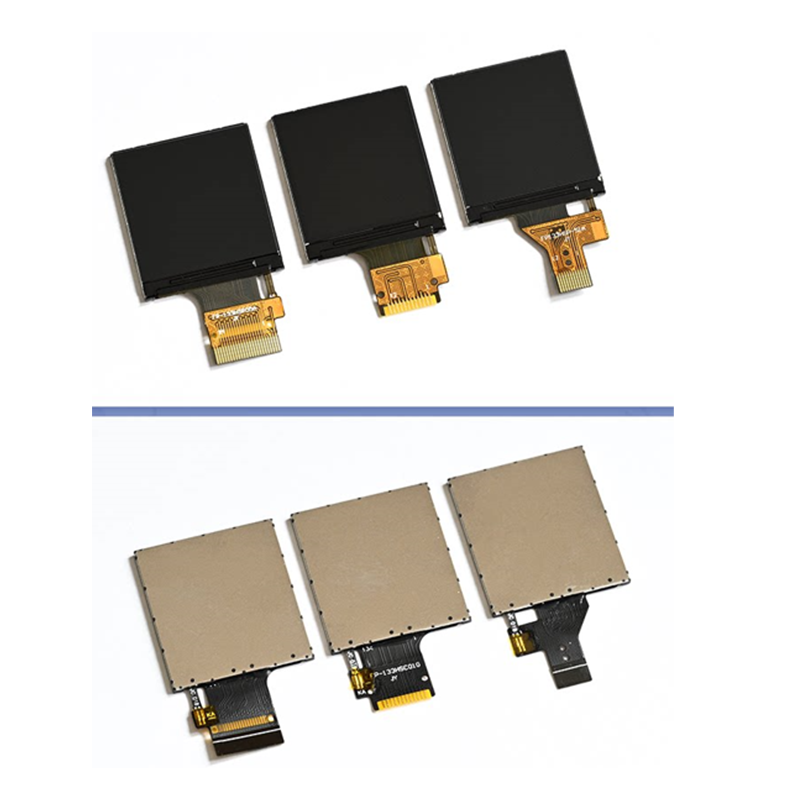

Product details presentation

1. 30 inches, driven by ST7789, round TFT high-definition display panel, bare screen, 12/24 pins, available in soldered or plug-in type

Welding 12-pin / Plug-in 12-pin interface definition

Pin Symbol Description
1 GND Power ground terminal
2 LEDK LED cathode
3 LEDA LED anode
4 VDD Analog power supply
5 GND Power ground terminal
6 GND Power ground terminal
7 D/C Data/Command selection pin for 4-line serial interface
8 CS Chip select pin; Low enable value, high disable
9 SCL Serial interface clock
10 SDA SPI interface input/output pins
11 RESET Display reset pin, low level effective
12 GND Power ground terminal

24-pin connector definition

Pin Symbol Description
1 LEDA LED anode
2 LEDK LED cathode
3 GND Power ground terminal
4 VDD-2.8V Simulator power: VDD-2.8V = 2.5V - 3.3V
5 VDDIO Input/output system power. IOVCC = 1.65V - 3.3V
6 IM1/2 W When IM1/2 = 1, 4-SPI; When IM1/2 = 0, 80-8-bit parallel
7 RESET Display reset terminal, low level effective
8 CS Chip select of the driver chip, low level effective
9 D/C Data/display instruction selection pin
10 WR Enable writing in the MCU parallel interface. Display data/command selection pin in the 4-line serial interface
11 RD Read from the MCU parallel interface
12 SDA SPI data pin
13-20 DB0-DB7 Single-chip microcontroller parallel interface data
21 TE Tear effect signal used to synchronize the single-chip microcontroller with the frame memory write
22 NC No connection
23-24 GND Power ground terminal

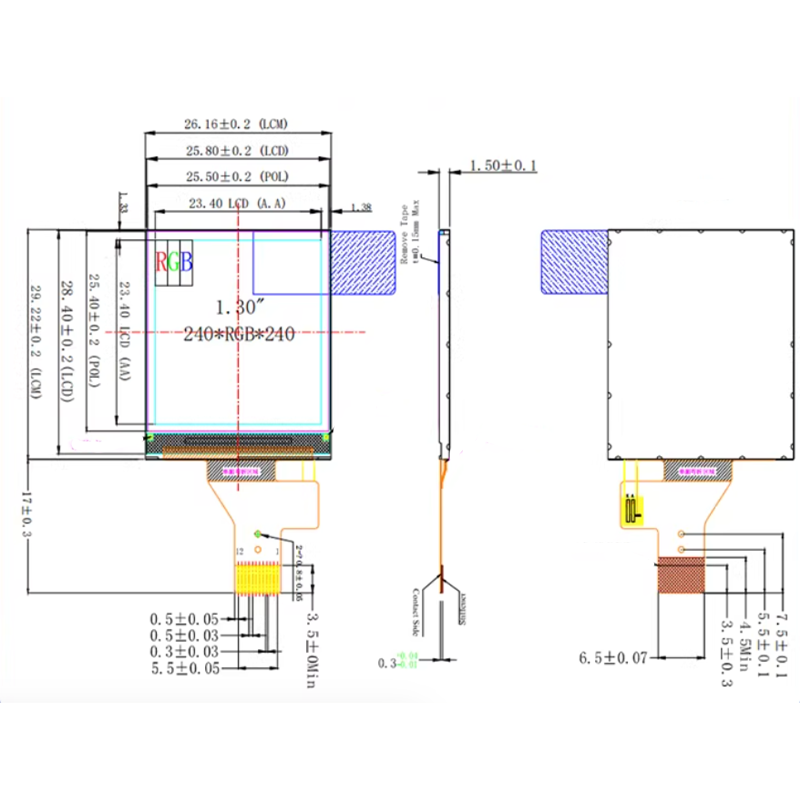

Welding type 12-pin structure drawing

1. 30 inches, driven by ST7789, round TFT high-definition display panel, bare screen, 12/24 pins, available in soldered or plug-in type

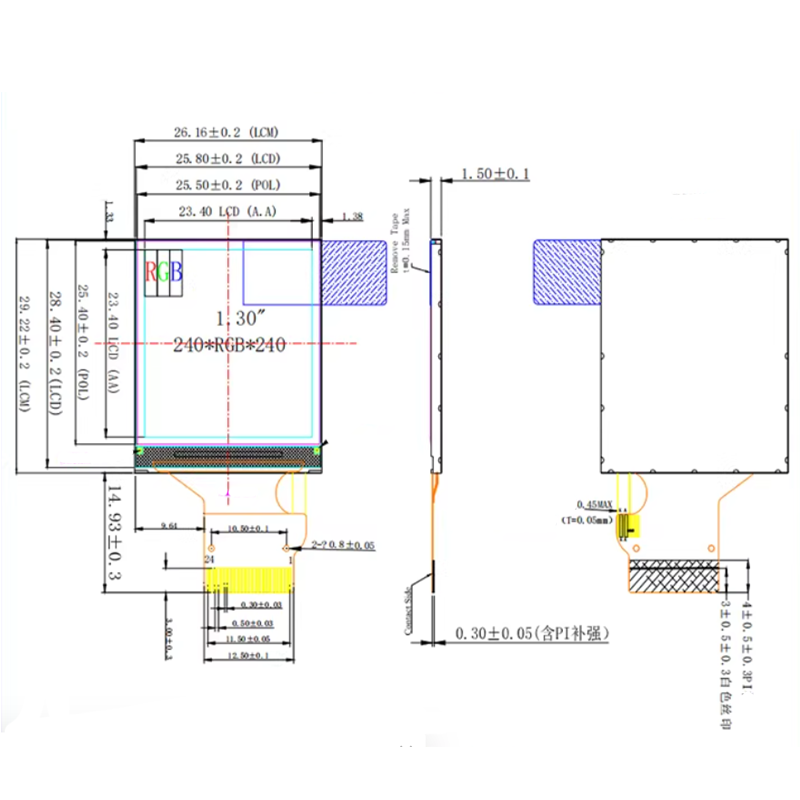

The structural drawing of the plug-in 24-pin type

1. 30 inches, driven by ST7789, round TFT high-definition display panel, bare screen, 12/24 pins, available in soldered or plug-in type

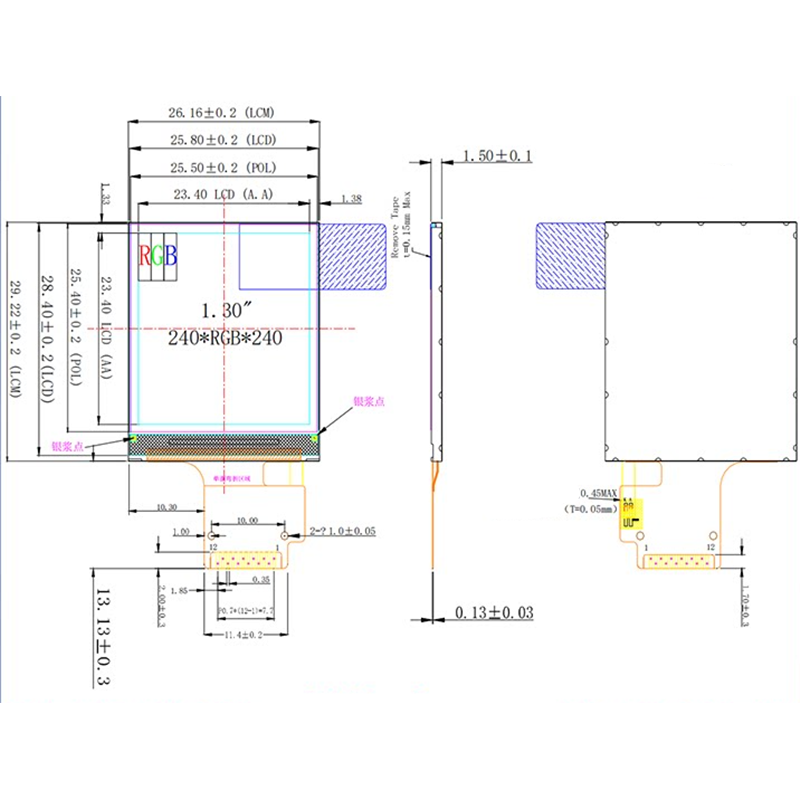

The structural drawing of the plug-in 12-pin type

1. 30 inches, driven by ST7789, round TFT high-definition display panel, bare screen, 12/24 pins, available in soldered or plug-in type
