Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.54 inches
Material :
High-definition IPS LCD
Resolution :
240 (H) RGB 240 (V)
Driver chip :
ST7789V
Communication interface :
4 Line SPI
Display color :
Full color
Display area :
27.72 (H) X 27.72 (V) mm
Panel size :
31.52 (H) X 33.72 (V) X 1.9 (D) mm
Pixel pitch :
0.1155 (H) X 0.1155 (V) mm
Pin count :
12
Connection method :
12-pin 0.5mm pitch flat flexible connector
Viewing angle direction :
Full viewing angle
Operating voltage :
3.3V
Operating current :
30mA
Backlight type :
3 White LEDs in parallel
Operating temperature :
-20~70 degrees
Weight :
2.8g
Description

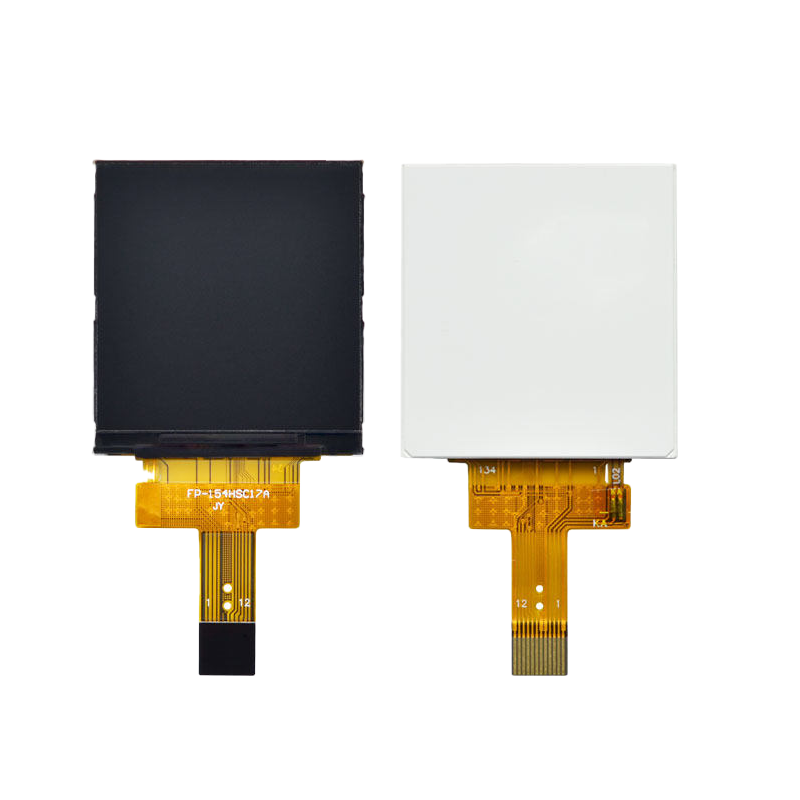

1.54-inch display product details

1.54 inches, driven by ST7789, 240X240 TFT high-definition display screen, optional plastic frame backlight or plastic-iron integrated backlight

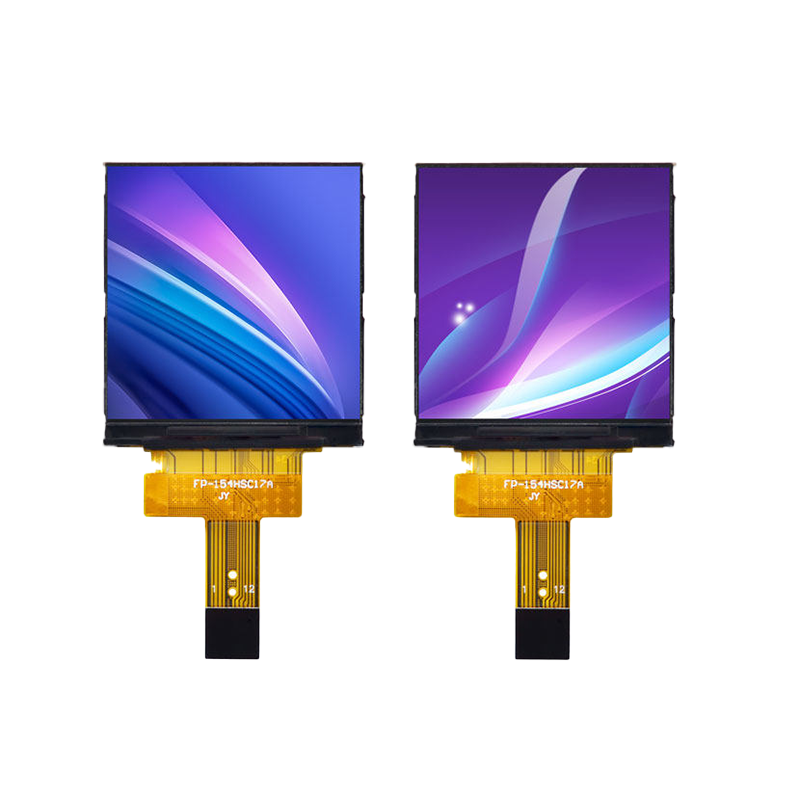

1.54-inch display product display

1.54 inches, driven by ST7789, 240X240 TFT high-definition display screen, optional plastic frame backlight or plastic-iron integrated backlight

1.54 Display Interface Definition

Pin Symbol Description
1 GND Power Ground
2 LEDK LED Cathode
3 LEDA LED Anode
4 VDD Power Supply for Analog
5 GND Power Ground
6 GND Power Ground
7 D/C Display data/command selection pin in 4-line serial interface
8 CS Chip selection pin ;Low enable, high disable
9 SCL This pin is used to be serial interface clock
10 SDA SPI interface input/output pin. the data is latched on the risingedge of the SCL signal
11 RESET SPI interface input/output pin. the data is latched on the risingedge of the SCL signal
12 GND Power Ground

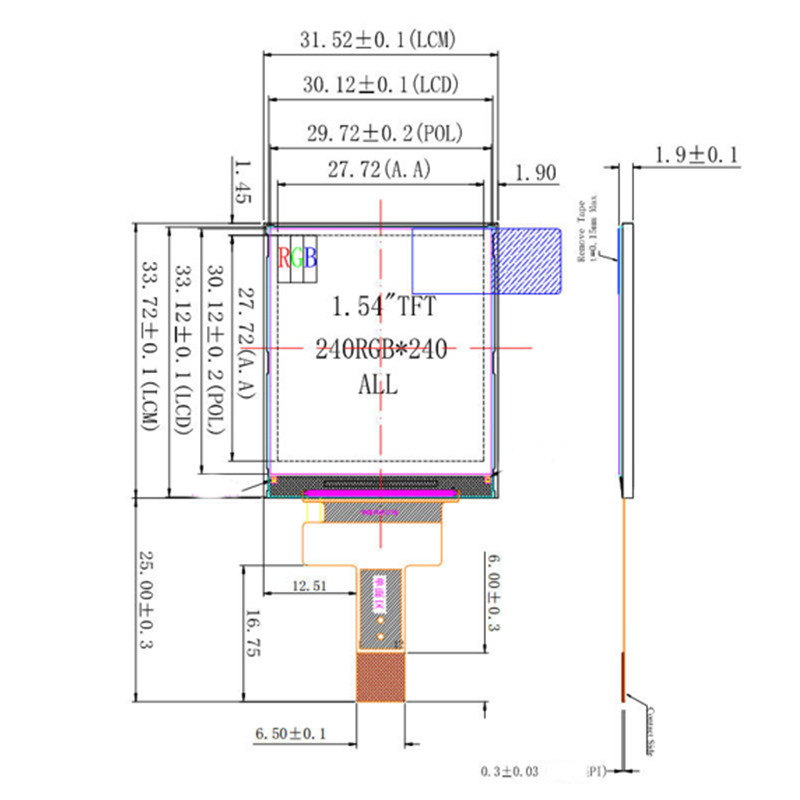

Structural parameter drawing

1.54 inches, driven by ST7789, 240X240 TFT high-definition display screen, optional plastic frame backlight or plastic-iron integrated backlight
