Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit
Price :
Prices are set based on design and quantity.
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, Paypal
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.9-inch color IPS LCD
Resolution :
170X320
Interface type :
4-SPI/8-bit parallel port
Control chip :
ST7789V3
Product highlights :
High-definition IPS, display direction can be adjusted
Display color :
Color
Display area :
22.695X42.75 (mm)
Panel size :
Backlit with plastic frame (25.8X49.72X1.43(T) (mm)), integrated plastic and iron: (24X49.32X1.43(T) (mm))
Pixel size :
0.1335X0.1335 (mm)
Backlight :
4*LED
Brightness :
350 (Typ)
Weight :
2.7g
Pin count :
30-pin (0.5mm spacing plug-in type)
Viewing angle direction :
Full viewing angle
Operating temperature :
-20~70℃
Description

1.90-inch color IPS screen

1.9 inches, driven by ST7789, 170X320 TFT high-definition display screen, optional with plastic frame backlight bare screen, plastic and iron integrated bare screen, SPI interface module

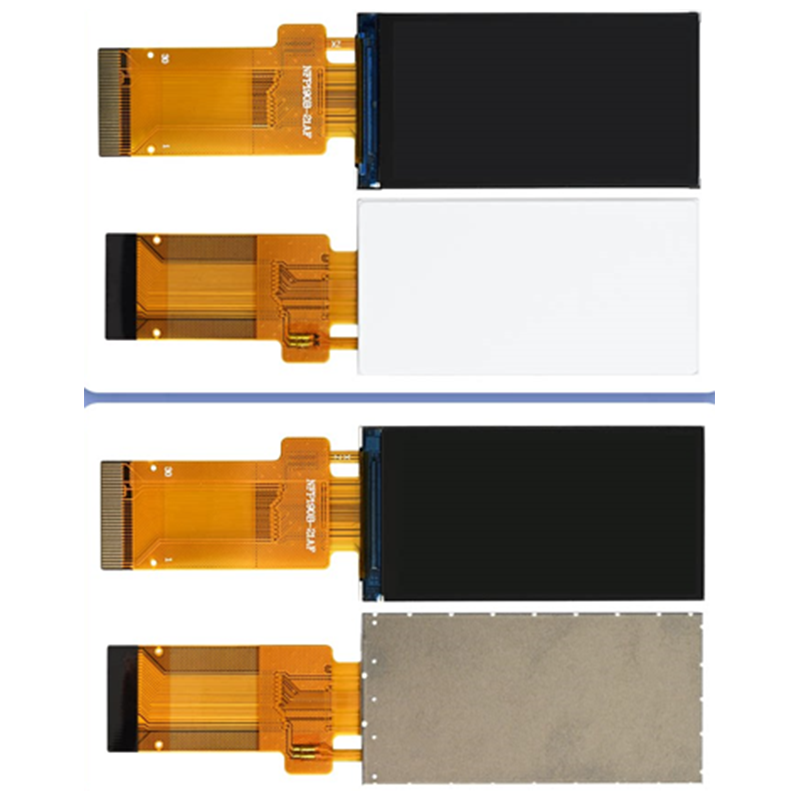

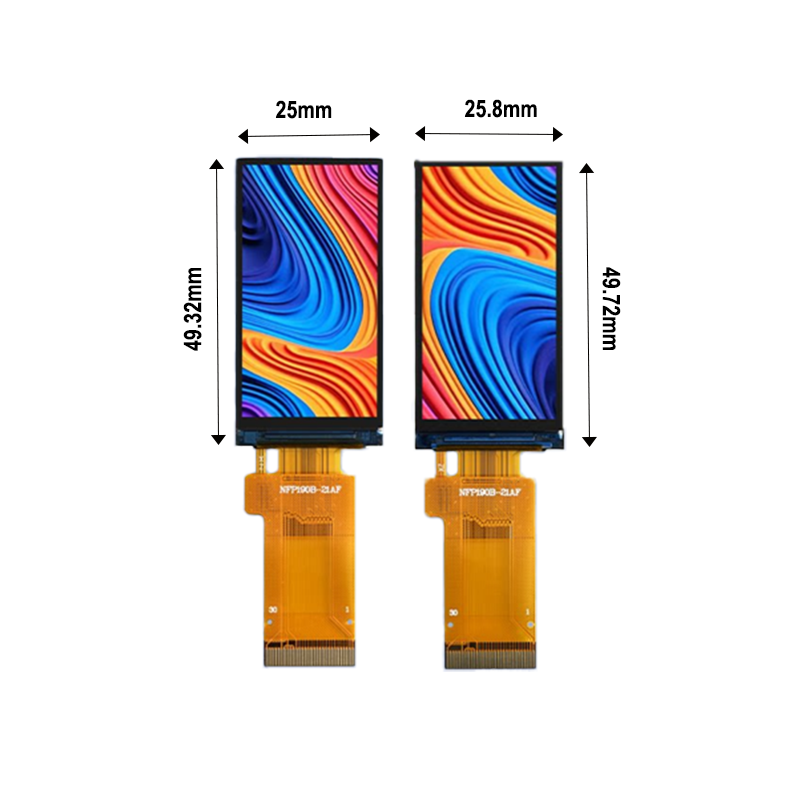

Product details presentation

1.9 inches, driven by ST7789, 170X320 TFT high-definition display screen, optional with plastic frame backlight bare screen, plastic and iron integrated bare screen, SPI interface module

Interface definition

Pin Symbol Pin Symbol
1 GND 16 DB5
2 VDD 17 DB6
3 IM2 18 DB7
4 IM1 19 SD0
5 RES 20 LEDA
6 CS 21 LEDK
7 DC 22 LEDK
8 WR 23 LEDK
9 RD 24 LEDK
10 SDA 25 GND
11 DB0 26 NC
12 DB1 27 NC
13 DB2 28 NC
14 DB3 29 NC
15 DB4 30 GND

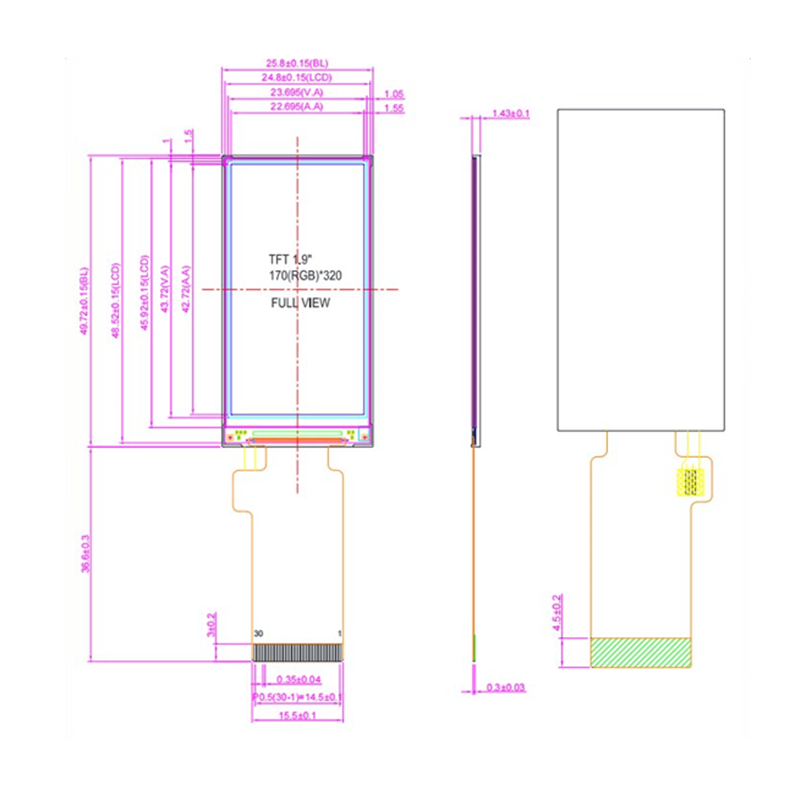

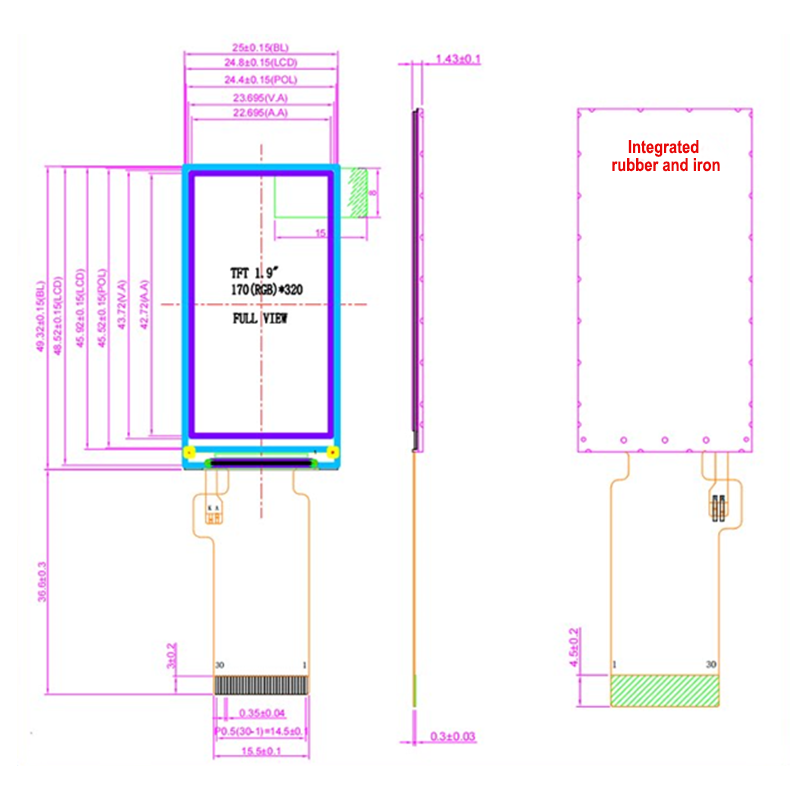

Structural drawing

1.9 inches, driven by ST7789, 170X320 TFT high-definition display screen, optional with plastic frame backlight bare screen, plastic and iron integrated bare screen, SPI interface module

1.9 inches, driven by ST7789, 170X320 TFT high-definition display screen, optional with plastic frame backlight bare screen, plastic and iron integrated bare screen, SPI interface module
