Specifications
Brand Name :
ORIENTRONIC
Place of Origin :
China
MOQ :
First purchase, no purchase quantity limit.
Price :
Prices are set based on design and quantity.
Supply Ability :
200K Sets / Month
Delivery Time :
4~6 Working Days
Packaging Details :
Prices are set based on design and quantity.
Size :
1.69 inches, color TFT LCD
Resolution :
240X280
Interface type :
8-bit parallel port
Control chip :
ST7789V2
Product highlights :
The display direction can be adjusted
Display color :
Color
Display area :
27.972 (H) X 32.634 (V)
Panel size :
30.07 (H) X 37.42 (V) X 1.56 (D)
Pitch :
0.11655 X 0.11655 mm
Backlight :
3*LED
Brightness :
480 (typical)
Weight :
3.4g
Pin count :
18Pin (0.7mm spacing)
Viewing angle :
Full angle
Operating temperature :
-20~70 degrees
Description

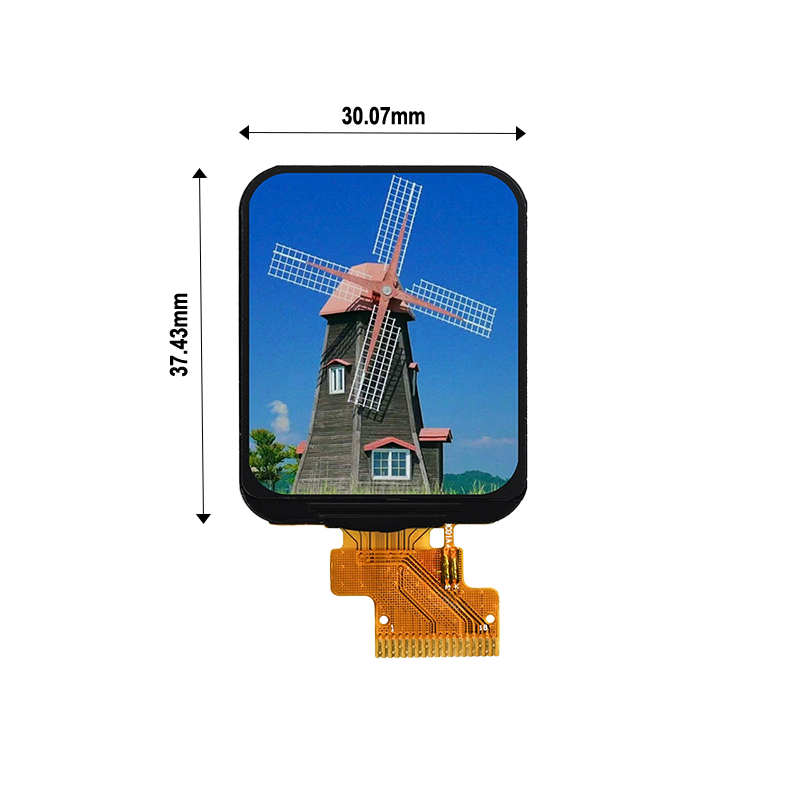

1.69-inch color TFT screen size

1.69 inches, driven by ST7789, 240X280 TFT parallel port high-definition display screen, optional bare screen or TFT module

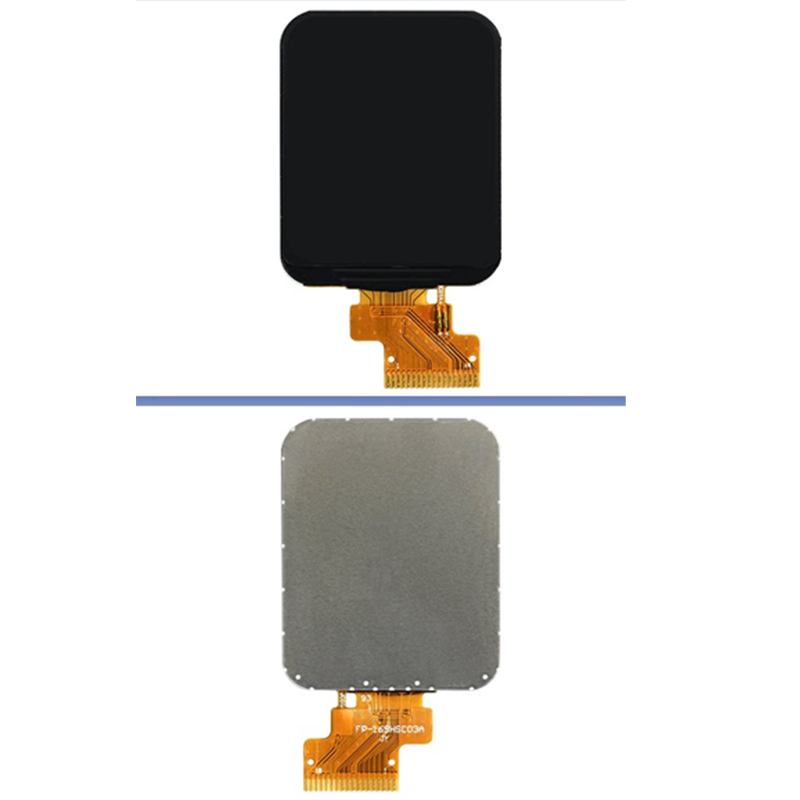

1.69-inch product display

1.69 inches, driven by ST7789, 240X280 TFT parallel port high-definition display screen, optional bare screen or TFT module

1.69-inch Display Interface Definition

1 DB7 10 WR
2 DB6 11 RS/DC
3 DB5 12 CS
4 DB4 13 GND
5 DB3 14 TE
6 DB2 15 VCC
7 DB1 16 LEDK
8 DB0 17 LEDA
9 RST 18 GND

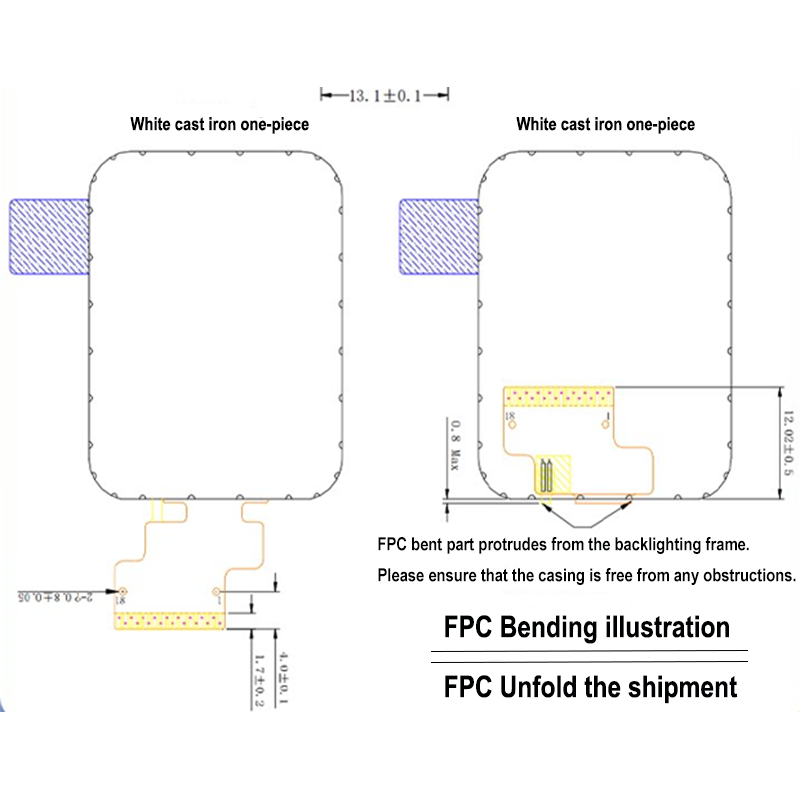

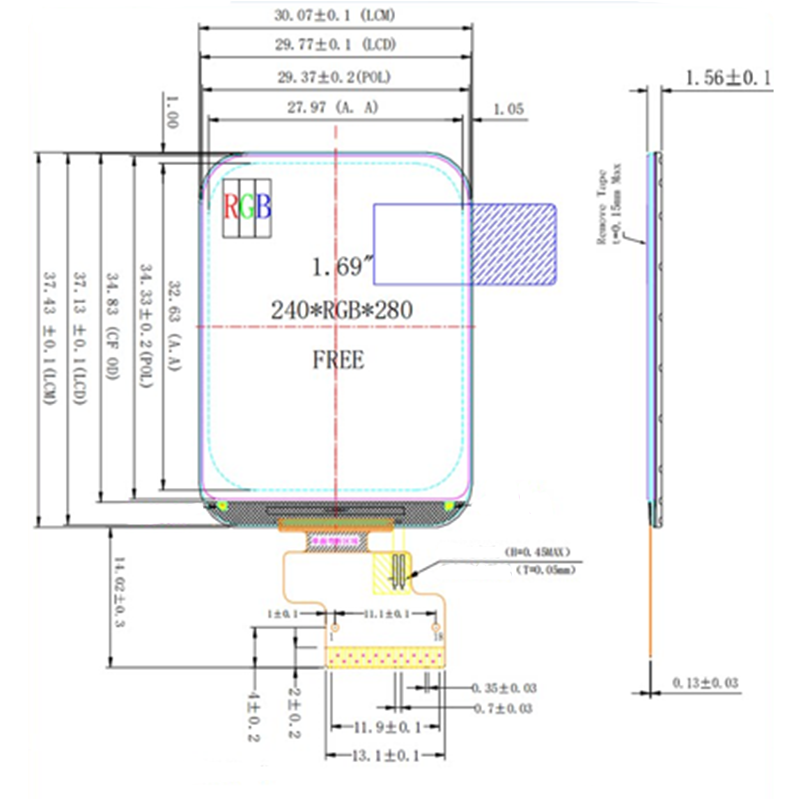

Structural parameter drawing

1.69 inches, driven by ST7789, 240X280 TFT parallel port high-definition display screen, optional bare screen or TFT module

1.69 inches, driven by ST7789, 240X280 TFT parallel port high-definition display screen, optional bare screen or TFT module
